- Partiron
- OEM Parts
- Polaris
- SNOW
- SNO
- 1993
- WIDE TRAK - 0932064
SUSPENSION ASSEMBLY WIDETRAK / 0932064 (4922982298019A)

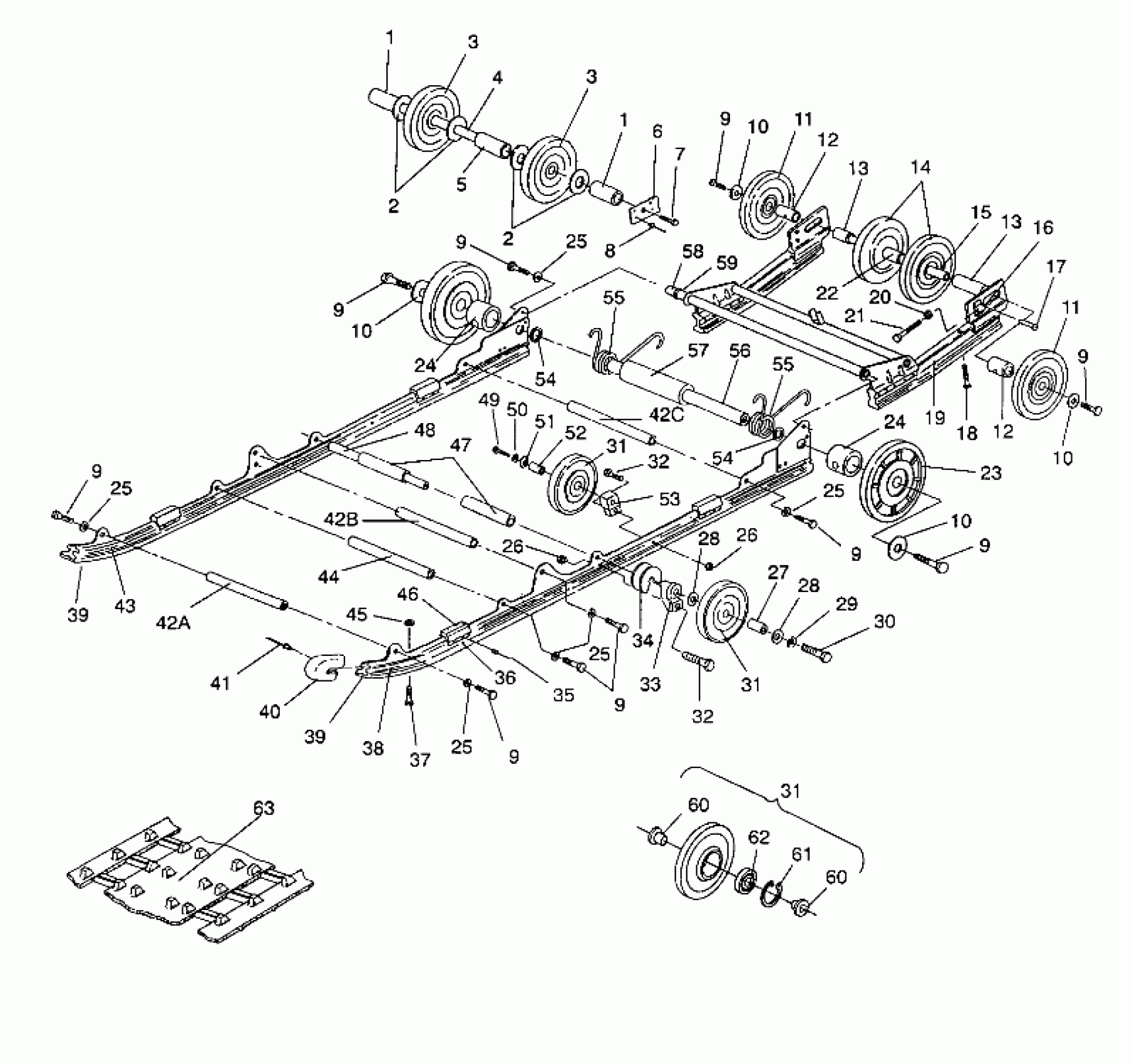

Polaris WIDE TRAK - 0932064 SUSPENSION ASSEMBLY WIDETRAK / 0932064 (4922982298019A) Diagram
#
1
SPACER, OUTER
5333019-067
$15.99
1
SPACER, OUTER
5333019-067
$15.99
2
WASHER(10)
7555726
$1.59
2
WASHER(10)
7555726
$1.59
3
WHEEL-TRACK CARRIER
1543013
$48.56
3
WHEEL-TRACK CARRIER
1543013
$48.56
4
SHAFT,MTG,CARRIER
5020558
Unavailable
5
SPACER,BLK,IN.CARRIER
5333020-067
$24.99
6
PLATE, TUNNEL Substituted by 5211220-067
5211220
Unavailable
7
BOLT(10)
7515432
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
9
BOLT(10) Substituted by 7512492
7515458
Unavailable
9
BOLT(10) Substituted by 7512492
7515458
Unavailable
9
BOLT(10) Substituted by 7512492
7515458
Unavailable
9
BOLT(10) Substituted by 7512492
7515458
Unavailable
9
BOLT(10) Substituted by 7512492
7515458
Unavailable
9
BOLT(10) Substituted by 7512492
7515458
Unavailable
9
BOLT(10) Substituted by 7512492
7515458
Unavailable
9
BOLT(10) Substituted by 7512492
7515458
Unavailable
9
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
WASHER FLAT(10)
7555732
Unavailable
10
WASHER FLAT(10)
7555732
Unavailable
10
WASHER FLAT(10)
7555732
Unavailable
10
WASHER FLAT(10)
7555732
Unavailable
11
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
11
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
12
SPACER-IDLER-OUTER
5332641
Unavailable
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
SPACER,R.IDLER SIDE
5333037
Unavailable
13
SPACER,R.IDLER SIDE
5333037
Unavailable
14
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
15
SHAFT, R.IDLER Substituted by 5020717
5020552
Unavailable
16
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
17
RIVET,(50)
7621501
$2.39
18
SCREW(10)
7512242
$2.39
19
PIVOT,SWING ARM ASM. Substituted by 1541133 (Incl. 16, 17)
1540640
Unavailable
20
NUT(10)
7542404
$1.59
21
BOLT(10)
7515459
$5.59
22
SPACER,R.IDLER,INNER
5333013
Unavailable
23
WHEEL,IDLER,RED Substituted by 1594039
1594052
Unavailable
24
TUBESPACER,CTR,OUTSIDE
5330171-067
$16.99
24
TUBESPACER,CTR,OUTSIDE
5330171-067
$16.99
25
WASHER(10)
7552603
$1.49
25
WASHER(10)
7552603
$1.49
25
WASHER(10)
7552603
$1.49
25
WASHER(10)
7552603
$1.49
25
WASHER(10)
7552603
$1.49
26
NUT LOCK(10)
7542403
$3.99
26
NUT LOCK(10)
7542403
$3.99
27
EXTENSION,ROLLER SPACER
5333048
$18.23
28
WASHER, FLAT(10)
7555852
$2.39
28
WASHER, FLAT(10)
7555852
$2.39
29
WASHER LOCK(10)
7553101
$3.99
30
BOLT(10)
7512538
$6.39
31
WHEEL, IDLER (Incl. 60-62)
1543018
$56.65
31
WHEEL, IDLER (Incl. 60-62)
1543018
$56.65
31
WHEEL, IDLER (Incl. 60-62)
1543018
$56.65
32
BOLT(10)
7512404
$3.99
32
BOLT(10)
7512404
$3.99
33
TUBE,OUTER SPACER
5333012
$12.99
34
ROLLER, SPRING
5431366
$10.51
35
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
36
REINF., BUMPER
5222629
$13.75
37
SCREW(10)
7512227
$3.19
38
RAIL ASM,LH,(W'TRAK) (Incl. 36, 40, 46)
1540751
$419.99
39
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
39
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
40
COVER-RAIL TIP
5430627
$32.37
41
RIVET(50)
7621435
$1.49
42
SHAFT,PIVOT ARM,FR. Substituted by 5020718
5020551
Unavailable
42
SHAFT,PIVOT ARM,FR. Substituted by 5020718
5020551
Unavailable
42
SHAFT,PIVOT ARM,FR. Substituted by 5020718
5020551
Unavailable
43
RAIL ASM,RH,(W'TRAK) (Incl. 16, 36, 40, 46)
1540752
$419.99
44
SHAFT Substituted by 5020720
5020555
Unavailable
45
NUT-LOCK(10)
7542122
$1.49
46
BUMPER, RAIL
5810554
$7.27
47
SPACER,R.SHOCK
5333138
$39.99
48
SHAFT,REAR SHOCK Substituted by 5020719
5020651
Unavailable
49
BOLT(10)
7512659
$7.99
50
LOCK WASHER(10)
7553201
$3.99
51
WASHER(10)
7555804
$3.99
52
SPACER
5332786
$7.99
53
BRACKET,BOGIE WHEEL
5130570
$48.56
54
MACHINERY BUSHING(10)
7556301
$3.19
54
MACHINERY BUSHING(10)
7556301
$3.19
55
SPRING,R.EXT,BLK.
7041231-067
$59.99
55
SPRING,R.EXT,BLK.
7041231-067
$59.99
56
SHAFT, IDLER Substituted by 5020726
5020553
Unavailable
57
TUBE,CTR.IDLER,BLK.
5333014-067
$39.99
58
SHAFT,PIVOT ARM Substituted by 5020725
5020548
Unavailable
59
WASHER(10)
7555801
$3.99
60
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
60
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
61
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
62
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
63
TRACK, (WIDETRAK) Substituted by 5411040 (See pg. A16)
5410550
Unavailable
