RACK and TUNNEL EXTENSION ASSEMBLY WIDETRAK / 0932064 (4922982298010A)

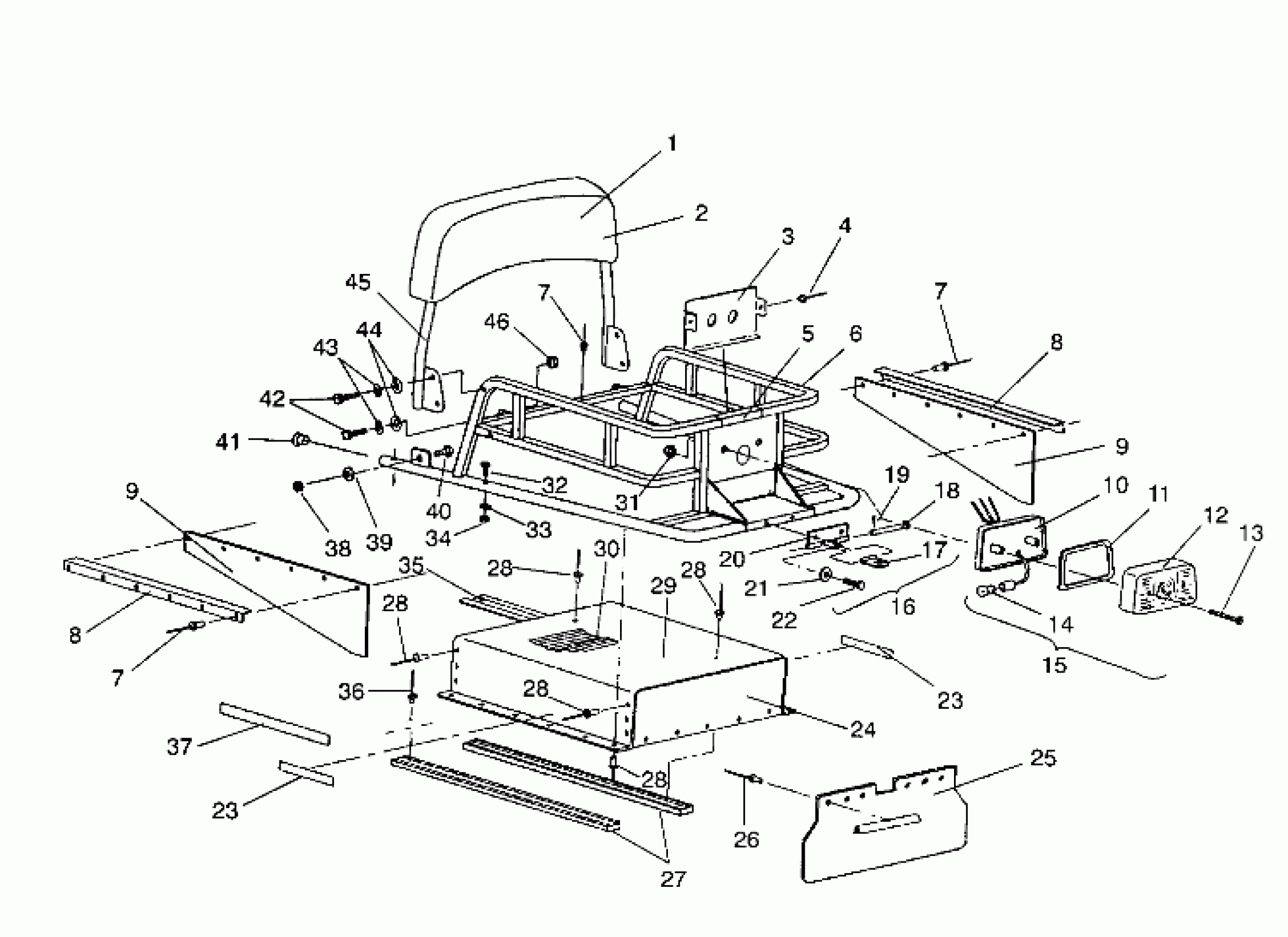

Polaris WIDE TRAK - 0932064 RACK and TUNNEL EXTENSION ASSEMBLY WIDETRAK / 0932064 (4922982298010A) Diagram
#
1
BACKREST ASM. (Incl. 2 & 45)
2681465
Unavailable
2
COVER, BACKREST
2681265
$257.13
3
SHIELD,TAILLIGHT
5222868-067
$20.63
4
RIVET Substituted by 7661638
7661625
$1.19
5
DECAL,TRACK/SEAT,SILVER [No Longer Available]
7073123
Unavailable
6
RACK,BLK,(W'TRAK)
1011758-067
Unavailable
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
8
BRKT,SNOW-FLAP
5220497-067
$12.39
8
BRKT,SNOW-FLAP
5220497-067
$12.39
9
SNOW FLAP-SIDE
5810222
Unavailable
9
SNOW FLAP-SIDE
5810222
Unavailable
10
BASE&SOCKET,T/L
4032047
Unavailable
11
GASKET,TAILLIGHT
4032045
$4.03
12
LENS,TAILLIGHT
4032046
$32.37
13
Screw, Taillight
4032029
$4.79
14
Bulb, Brakelight
4030045
Unavailable
15
TAILLIGHT ASM. (Incl. 10-14)
2432035
Unavailable
16
HITCHKIT,L.T./STARTRAK (Incl. 17-22)
2870708
Unavailable
17
HITCH WELD, BLK. Substituted by 2871178
1011624-067
Unavailable
18
CLEVIS PIN(10)
7662209
$9.59
19
COTTER PIN(10)
7661401
$1.49
20
HITCH WELD,BLK.(U.S.)
1011518-067
$31.75
21
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
22
SCREW(10) Substituted by 7512490
7512402
Unavailable
23
REFLECTOR RED
2670070
$9.91
23
REFLECTOR RED
2670070
$9.91
24
PANEL,TUNNEL,BACK
5222325
$24.16
25
FLAP,SNOW(WIDETRAK)
5410553
Unavailable
26
POP RIVET(50)
7621418
$1.49
27
STRIP, WEAR, EXT.
5222448
$17.46
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
29
TUNNEL, EXT.
5222324
$405.94
30
PROTECTOR, BED
5410560
$51.99
31
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
32
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
33
WASHER(10) Substituted by 7558301
7555776
Unavailable
34
NUT(10)
7542124
Unavailable
35
BRKT,HARNESS PROTECTOR
5222323
$24.27
36
RIVET(50)
7621449
$3.19
37
DECAL,REV/LOW RANGE [No Longer Available]
7072291
Unavailable
38
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
39
WASHER(10) Substituted by 7555832
7555851
Unavailable
40
BOLT(10)
7515522
$3.99
41
PLUG(10)
5430713
Unavailable
42
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
43
WASHER(10)
7552606
$4.79
44
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
45
BACKREST, BLK. Substituted by 2681465
1011781-067
$27.92
46
NUT-5/16-18 NYLOK-Y
7542324
$1.49
