FRONT TORQUE ARM ASSEMBLY WIDETRAK / 0932064 (4922982298021A)

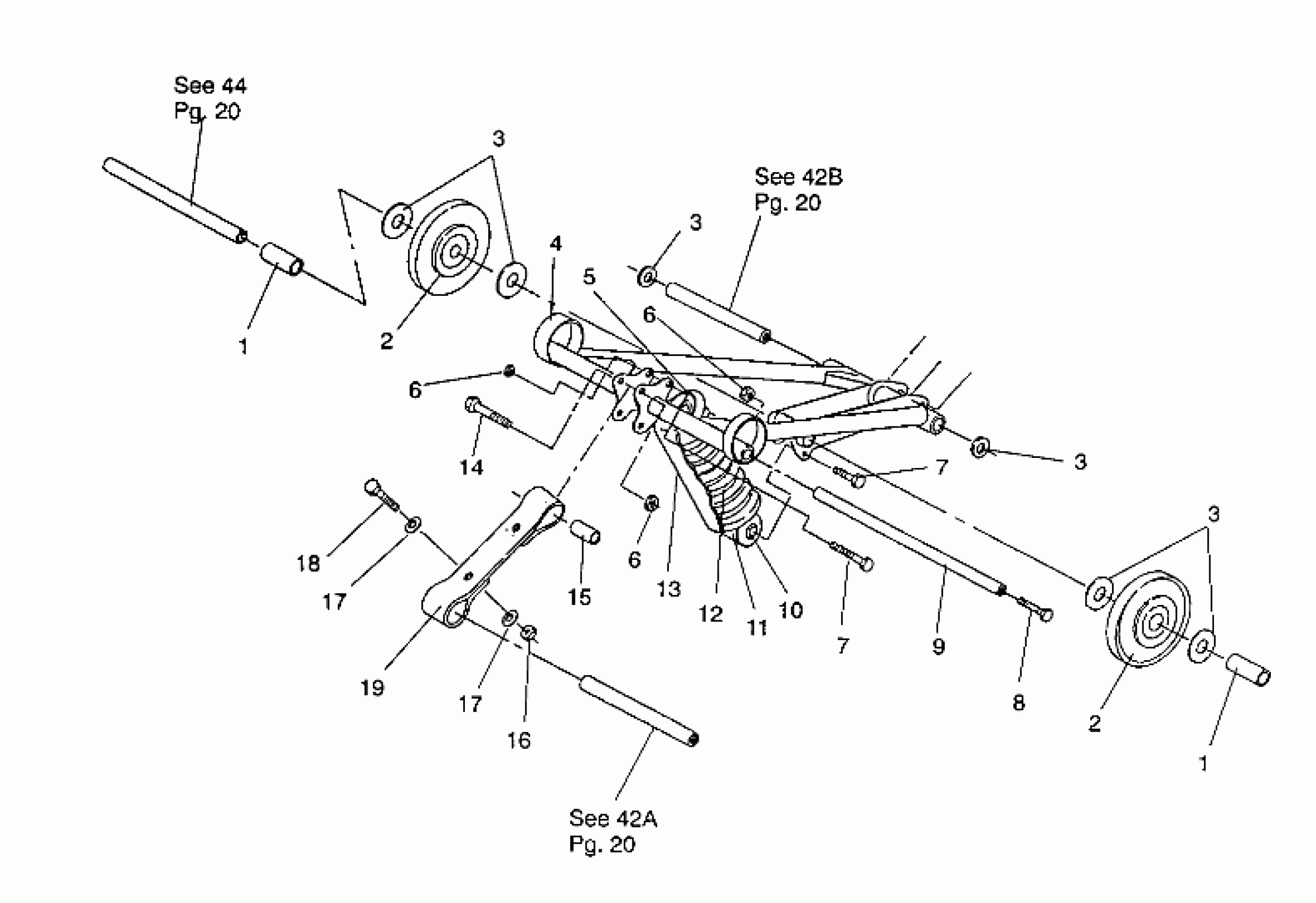

Polaris WIDE TRAK - 0932064 FRONT TORQUE ARM ASSEMBLY WIDETRAK / 0932064 (4922982298021A) Diagram
#
Description
Price
1
TUBE,OUTER SPACER
5333012
$12.99
1
TUBE,OUTER SPACER
5333012
$12.99
2
WHEEL, IDLER
1543018
$56.65
2
WHEEL, IDLER
1543018
$56.65
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
4
ARM,FR.TORQUE,BLK. Substituted by 1541044-067
1540649-067
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
NUT-LOCK(10)
7542439
$1.49
6
NUT-LOCK(10)
7542439
$1.49
6
NUT-LOCK(10)
7542439
$1.49
7
BOLT(10)
7515415
$1.49
7
BOLT(10)
7515415
$1.49
8
BOLT(10)
7515432
Unavailable
9
SHAFT, MOUNTING
5020554
Unavailable
10
SHOCK,CTR.SUSP.
7041281
Unavailable
11
SPACER,SHOCK RETAINER(10)
5210953
$6.39
12
SPRING-SHOCK SUSP
7041140
Unavailable
13
SHIELD-SPRING
5430671
$24.27
14
BOLT(10)
7515438
$4.79
15
BUSHING,SUSPENSION
5010212
Unavailable
16
NUT-5/16-18 NYLOK-Y
7542324
$1.49
17
WASHER(10)
7555716
$1.59
17
WASHER(10)
7555716
$1.59
18
BOLT(10)
7515307
$3.99
19
STRAP, LIMITER
5410397
Unavailable
