ENGINE MOUNTING WIDETRAK / 0932064 (4922982298025A)

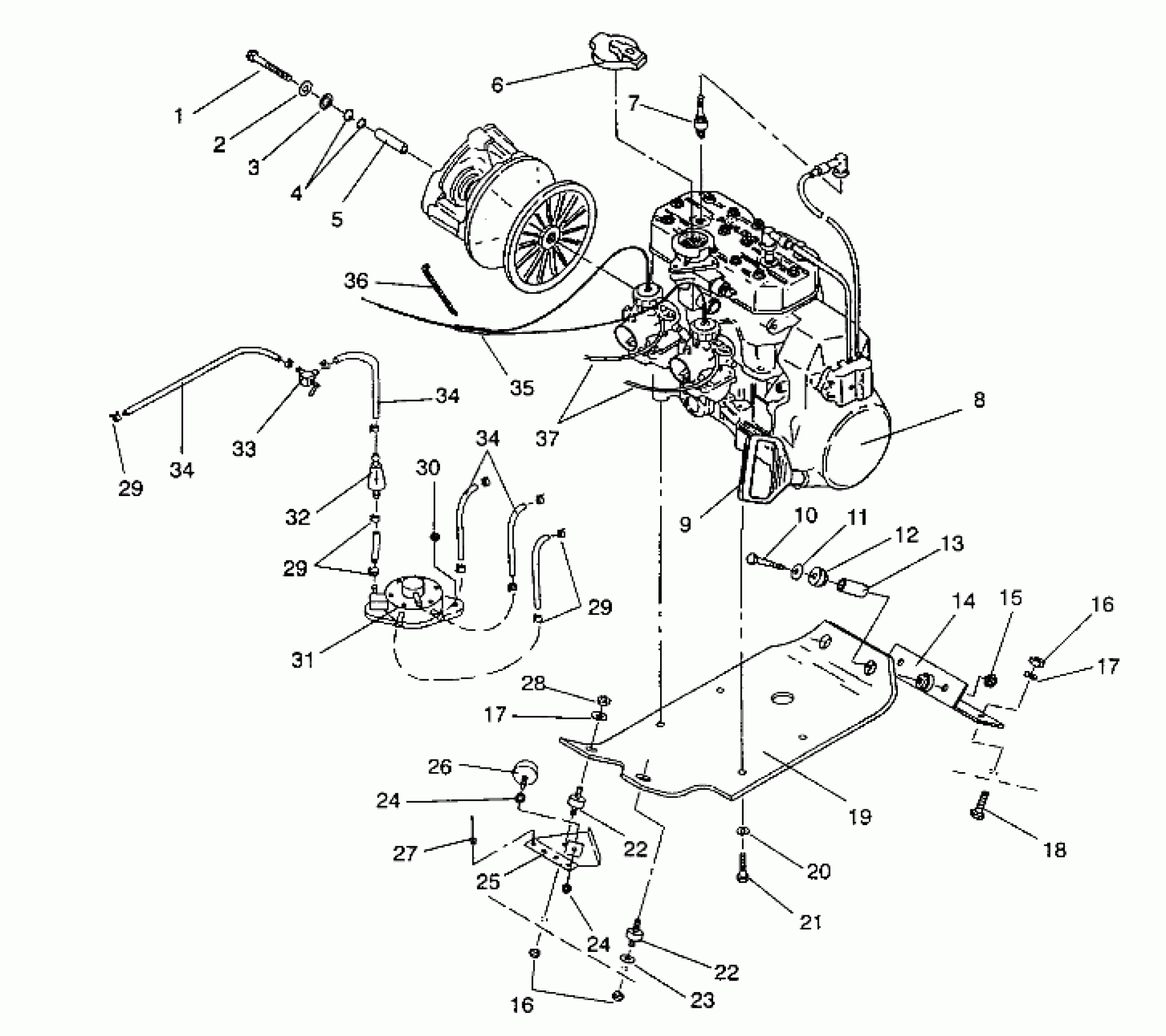

Polaris WIDE TRAK - 0932064 ENGINE MOUNTING WIDETRAK / 0932064 (4922982298025A) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE
2511155
Unavailable
7
SPARKPLUG, RN3C(8)
3070166
$3.99
8
DESC NOT_AVAILABLE
1211485
Unavailable
9
HANDLE-RECOIL
5430520
Unavailable
10
SCREW(10)
7512533
$1.75
11
WASHER(10)
7555740
$1.59
12
MOUNT, ENGINE
5410390
Unavailable
13
SPACER, (MTR.MT.)
5332778
Unavailable
14
MOUNT, MOTOR [No Longer Available]
1011761-067
Unavailable
15
NUT, LOCK,(10)
7542503
$10.39
16
NUT-LOCK(10)
7542439
$1.49
16
NUT-LOCK(10)
7542439
$1.49
17
WASHER(10) Substituted by 7555806
7555720
$0.79
17
WASHER(10) Substituted by 7555806
7555720
$0.79
18
BOLT(10) Substituted by 7512457
7512491
Unavailable
19
PLATE, MTR.MT.
5222333
$53.17
20
WASHER LOCK(10)
7553101
$3.99
21
BOLT(10)
7512539
$3.99
22
MOUNT
3110022
Unavailable
22
MOUNT
3110022
Unavailable
23
WASHER(10)
7555721
$1.49
24
NUT, JAM(10)
7542432
$3.99
24
NUT, JAM(10)
7542432
$3.99
25
BRACKET,TORQUE LIMITER Substituted by 1012048-067
1011741-067
$38.71
26
STOP
3110023
Unavailable
27
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
NUT LOCK(10)
7542411
$3.19
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
30
NUT-LOCK(10)
7542122
$1.49
31
Fuel Pump (See Fuel Pump pg.30)
-------
Unavailable
32
FILTER FUEL,(10)
2530008
$4.84
33
VALVE,FUEL SHUT-OFF
7052039
Unavailable
34
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
34
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
34
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
35
CABLE,THROTTLE W/OIL Substituted by 7080554
7080406
Unavailable
36
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
37
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
