COOLING SYSTEM WIDETRAK / 0932064 (4922982298028A)

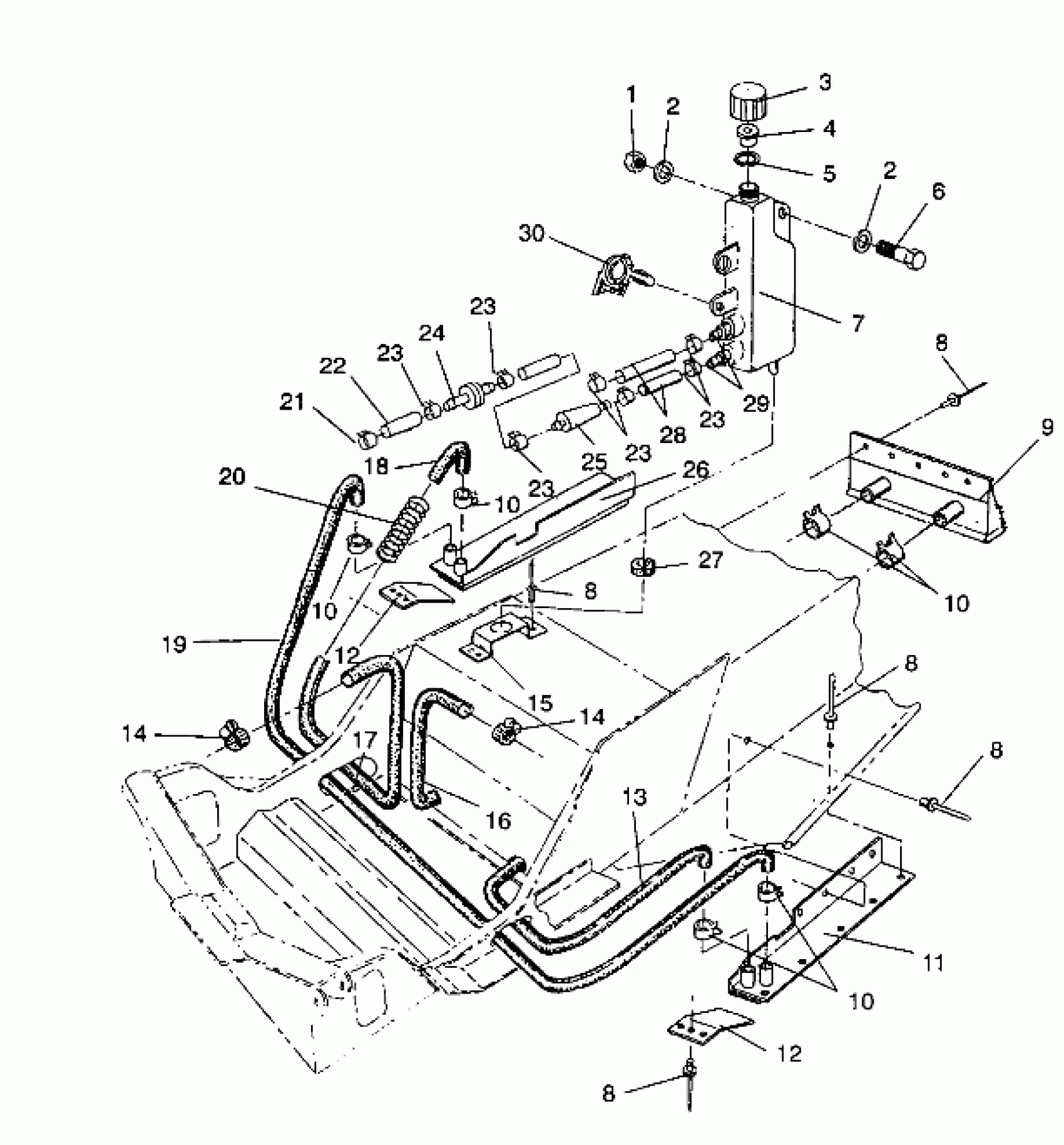

Polaris WIDE TRAK - 0932064 COOLING SYSTEM WIDETRAK / 0932064 (4922982298028A) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE, OVERFLOW Substituted by 5431733
5431054
$36.41
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
9
EXT,CTR.COOLING
2511187
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
11
EXT.,LH COOLING
2511202
Unavailable
12
GUARD,COOLING EXT
5240101
Unavailable
12
GUARD,COOLING EXT
5240101
Unavailable
13
HOSE,CROSSOVER,SHORT (Short)
5410558
$19.68
14
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
14
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
15
BRACKET
5223985
Unavailable
16
HOSE
5410398
Unavailable
17
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
18
HOSE,PUMP INLET
5410559
Unavailable
19
HOSE,CROSSOVER
5410557
Unavailable
20
SPRING,HOSE RETAINER
7041079
$4.95
21
CLAMP-HOSE(10)
7080134
Unavailable
22
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
VALVE, CHECK
7052038
$10.51
25
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
26
EXT.,RH COOLING
2511203
Unavailable
27
GROMMET RUBBER
5410021
Unavailable
28
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
29
FITTING, OUTLET
7052042
$8.99
30
CLIP, PLASTIC(10)
4020139
$4.79
