Description

Price

1

Seat Ass'y

269002463

$529.99

2

Latch Ass'y

269700109

$24.99

3

Rivet 1/4"

293150151

$8.04

4

Stainless Flat Washer M6

234061600

$0.33

5

Seat Strap

269002096

$36.99

6

Rivet | Model-T3

293150067

$2.89

7

Grommet

293720067

$12.99

8

RH SEAT PROTECTOR - Call your local BRP dealership | Package SE Long Beach Blue Met.

269002097

Unavailable

9

LH SEAT PROTECTOR - Call your local BRP dealership | Package SE Long Beach Blue Met.

269002098

Unavailable

10

Seat Receptacle

269002151

$14.49

11

Pop Rivet 3/16"

293150123

$4.29

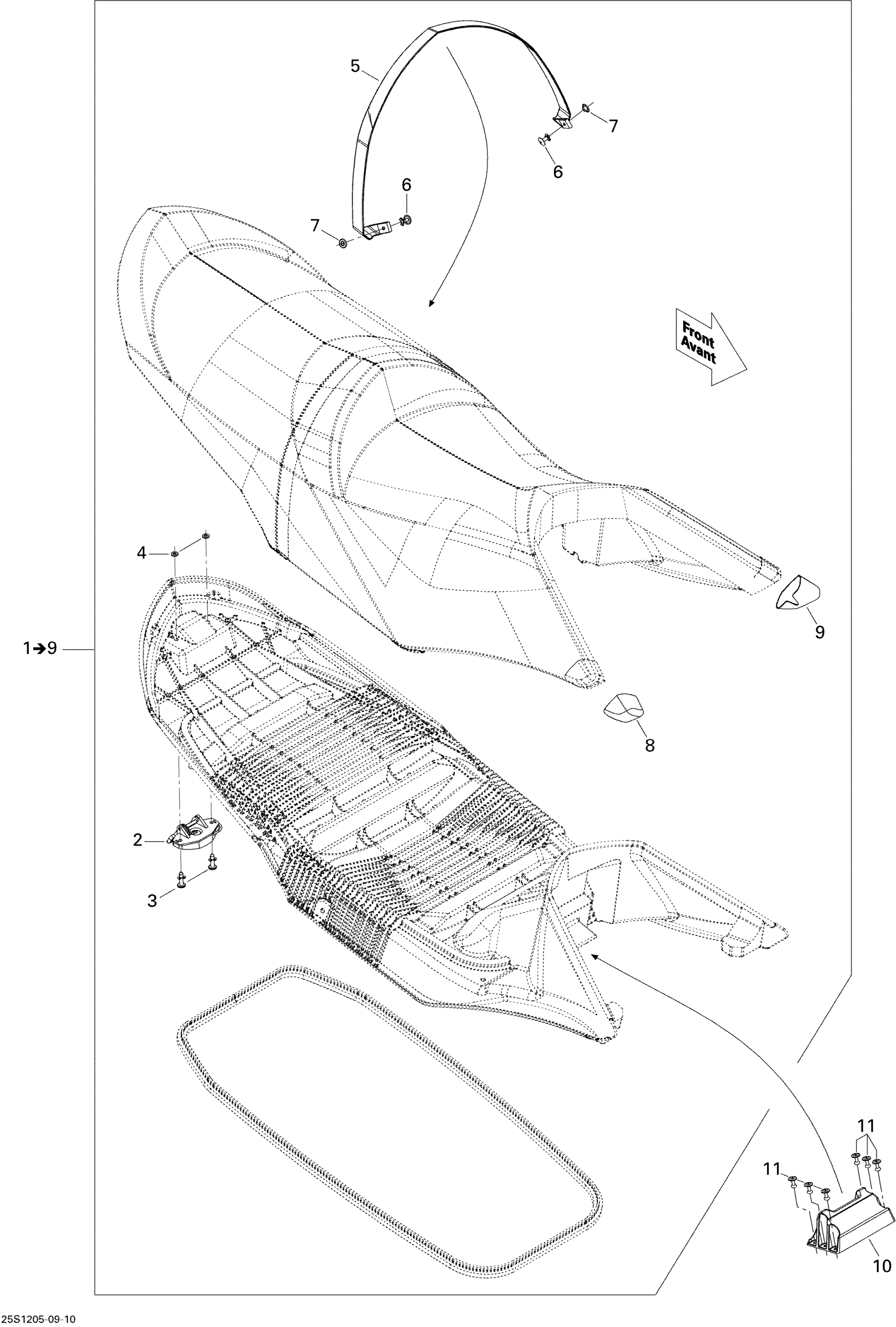

Sea-doo WAKE 155, 2012 09- Seat Diagram
