Description

Price

1

INSERT CAPUCHON M8 - Call your local BRP dealership

293450290

Unavailable

2

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

3

Double Strap Clip 90°

275500798

$8.94

4

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19

5

Gasket

292001480

Unavailable

6

Cable Adaptor Ass'y

277001881

$19.99

7

Torx Screw Plastite M6

250000466

$6.98

8

Grommet

293720029

$1.59

9

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

10

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

11

Tie Wrap 94 mm | 4X4

293750001

$1.03

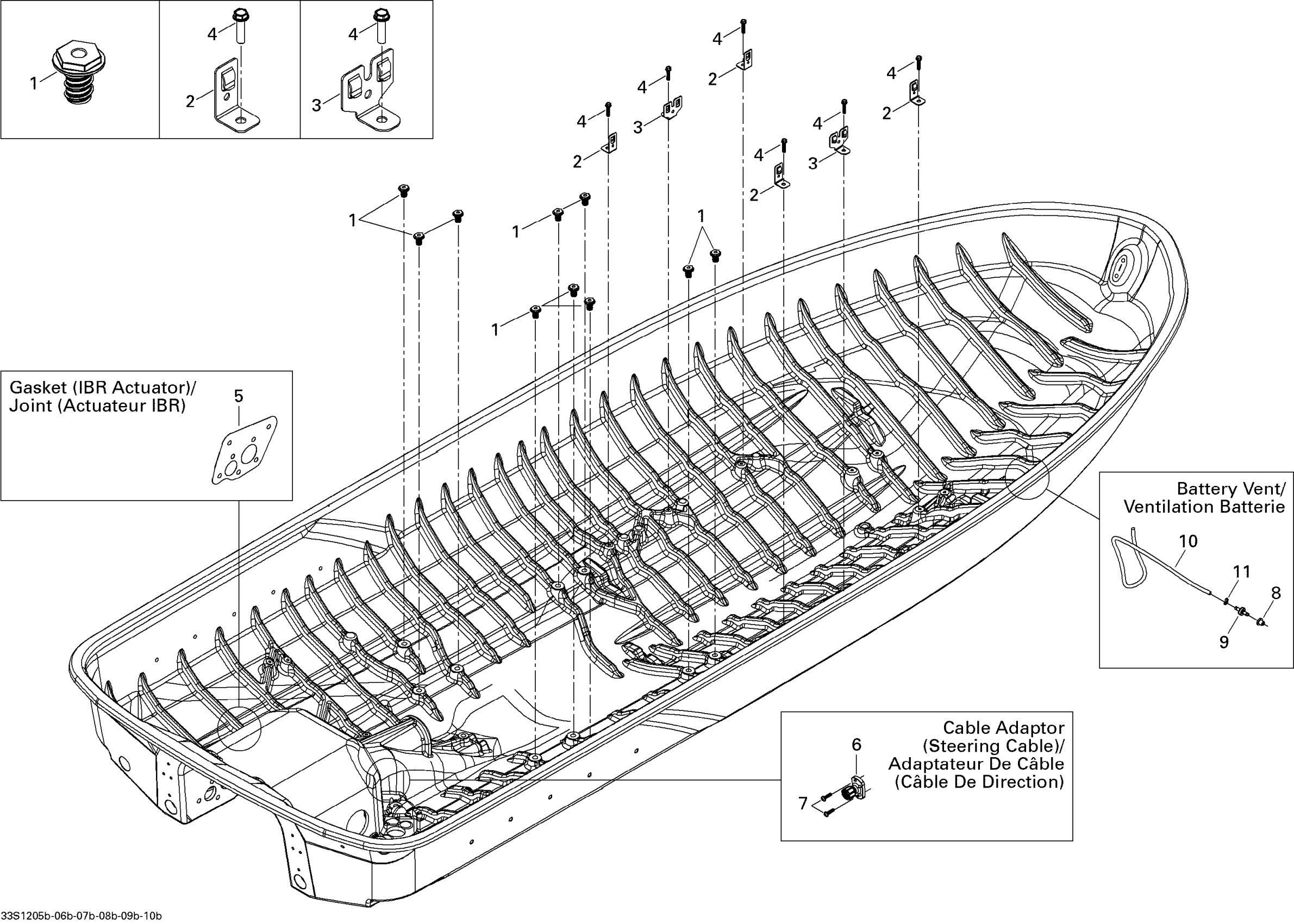

Sea-doo WAKE 155, 2012 09- Hull 2 Diagram

INSERT CAPUCHON M8 - Call your local BRP dealership

STRAP CLIP 90 - Call your local BRP dealership

Double Strap Clip 90°

Hex. Flange Screw M6.81 X 25, Plastite

Gasket

Cable Adaptor Ass'y

Torx Screw Plastite M6

Grommet

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

HOSE 6 MM - Call your local BRP dealership

Tie Wrap 94 mm | 4X4
