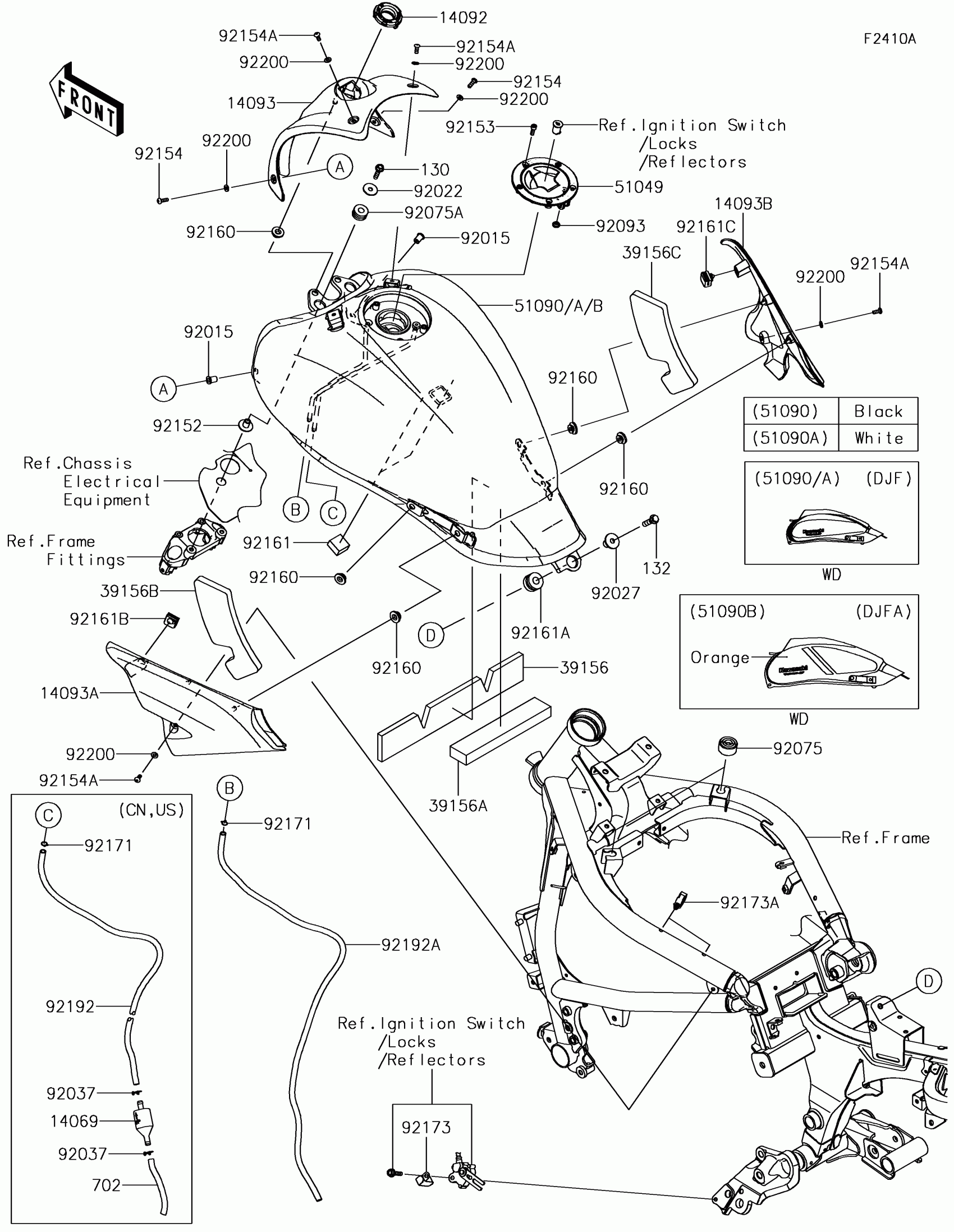

Kawasaki VULCAN® S ABS Fuel Tank(DJF/DJFA) Diagram

#

Description
Price

14069

BREATHER

14069-0703

$6.89

14092

COVER,IGNITION SW.

14092-1033

$5.01

14093

COVER,TANK,FR,F.S.BLACK

14093-0105-18T

$152.82

14093A

COVER,TANK,LH

14093-0106

$78.55

14093B

COVER,TANK,RH

14093-0107

$76.06

39156

PAD,53X334X10

39156-1833

$47.83

39156A

PAD,38X200X20

39156-1893

$42.11

39156B

PAD,TANK COVER,LH

39156-1929

$11.08

39156C

PAD,TANK COVER,RH

39156-1930

$11.08

51049

CAP-TANK,FUEL

51049-0714

$136.31

51090

TANK-COMP-FUEL,M.F.S.BLACK

51090-5160-739

$914.07

51090A

TANK-COMP-FUEL,P.B.WHITE

51090-5165-54X

$1,081.89

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,7X24X1.6

92022-228

$3.92

92027

COLLAR,L=19.3

92027-1780

$6.57

92037

CLAMP,TUBE

92037-147

$7.34

92075

DAMPER

92075-015

$5.00

92075A

DAMPER,10X24X12

92075-1690

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.5X10X13.1

92152-0910

$1.63

92153

BOLT,SOCKET,5X16

92153-1616

$1.34

92154

BOLT,SOCKET,5X16

92154-1470

$1.48

92154A

BOLT,SOCKET,5X12

92154-1471

$1.48

92160

DAMPER

92160-1613

$3.74

92161

DAMPER,T=13

92161-0792

$3.71

92161A

DAMPER,12X28X17

92161-1494

$3.02

92161B

DAMPER,TANK COVER,LH

92161-1679

$2.26

92161C

DAMPER,TANK COVER,RH

92161-1744

$2.75

92171

CLAMP,8X0.7

92171-1973

$1.34

92173

CLAMP

92173-0833

$3.74

92173A

CLAMP,HOLDER CLIP

92173-0868

$3.02

92192

TUBE,BREATHER,6X9X720

92192-1389

$6.18

130

BOLT-FLANGED,6X25

130CA0625

$4.45

132

BOLT-FLANGED-SMALL,8X30

132BA0830

$4.45

702

TUBE-RUBBER

702A07100

$13.38

92192A

TUBE,DRAIN,6X9X870

92192-1433

$7.51

92200

WASHER,5.3X11X1

92200-0973

$0.95

92171

CLAMP,8X0.7

92171-1973

$1.34
