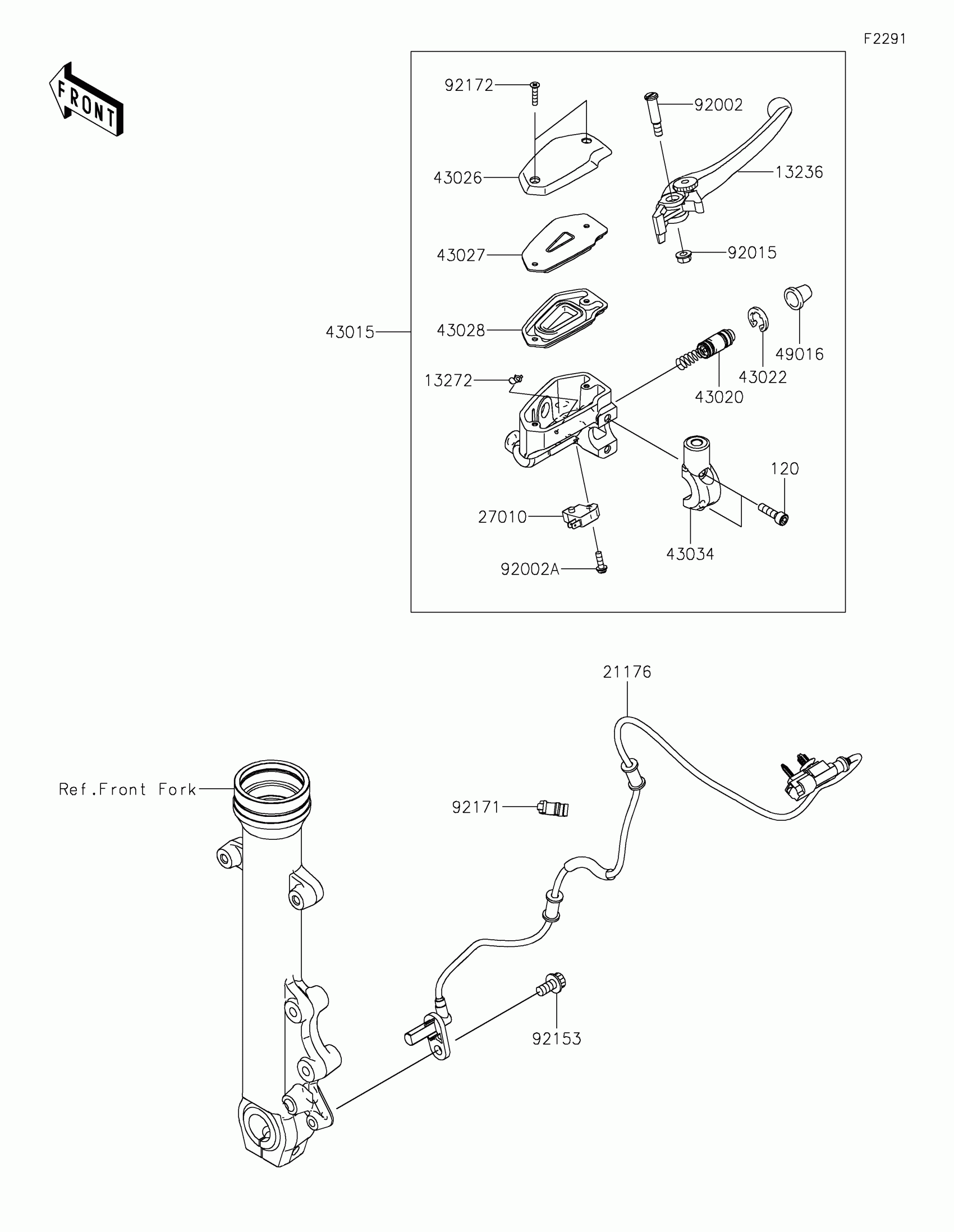

Kawasaki VULCAN® S ABS CAFE Front Master Cylinder Diagram

Description

Price

120

BOLT-SOCKET,6X22

120CB0622

$5.31

13236

LEVER-COMP,FRONT BRAKE

13236-0140

$68.13

13272

PLATE

13272-0573

$7.60

21176

SENSOR,FR WHEEL SPEED

21176-0804

$146.40

27010

SWITCH,BRAKE

27010-0762

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0606

$410.93

43020

PISTON-COMP-BRAKE

43020-1095

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0019

$46.21

43027

PLATE-DIAPHRAGM

43027-0008

$8.69

43028

DIAPHRAGM

43028-0015

$36.45

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0049

$45.06

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92153

BOLT,SOCKET,8X16

92153-0327

$6.28

92171

CLAMP,BRAKE HOSE

92171-1819

$5.54

92172

SCREW,4X20

92172-0320

$3.90
