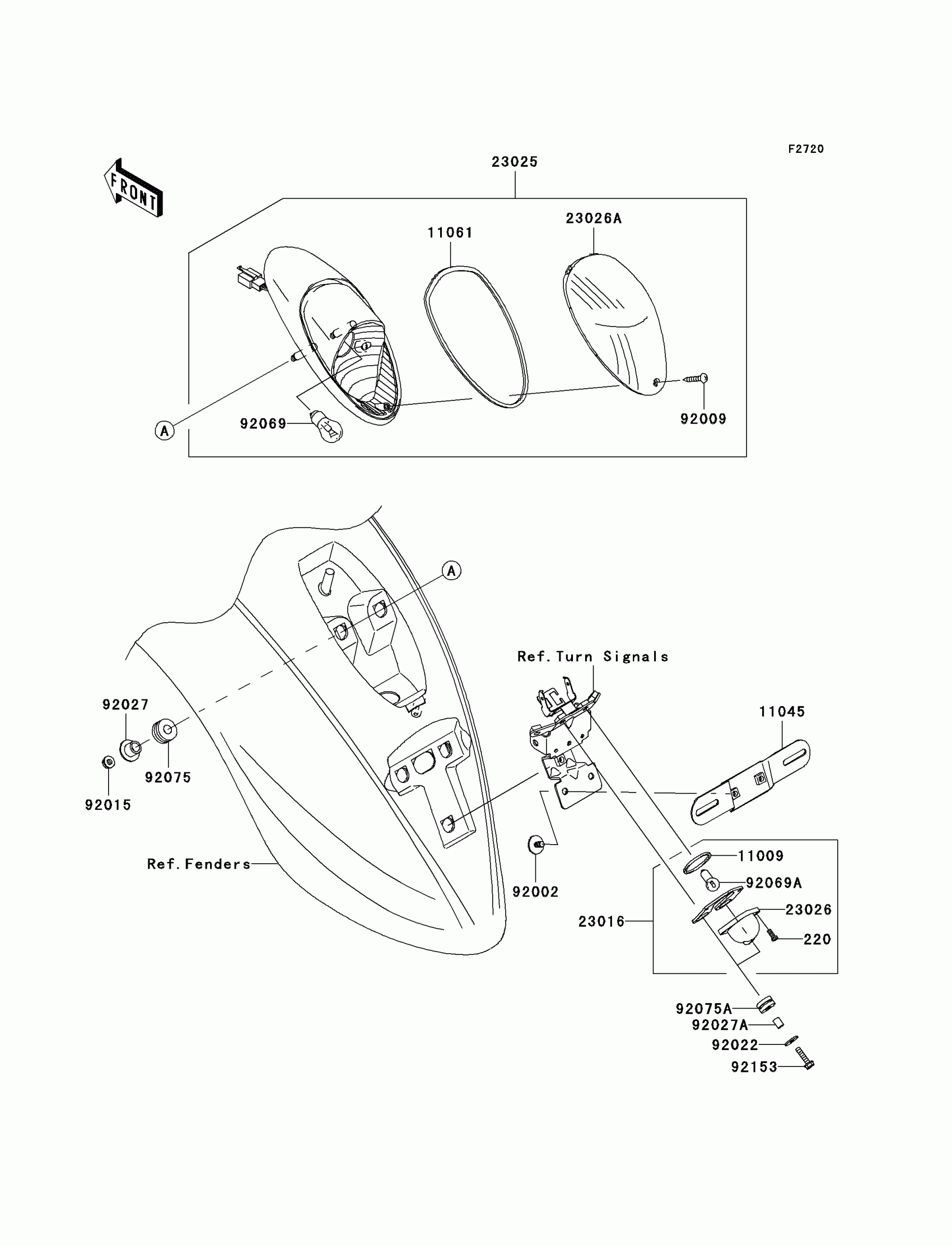

Kawasaki Vulcan 900 Classic Taillight(s)(-JKAVN2B1 7A016369) Diagram

Description

Price

220

SCREW-PAN-CROS,4X10

220AA0410

$2.46

11009

GASKET,LICENSE PLATE LAMP

11009-1372

$4.65

11045

BRACKET,LICENSE

11045-1387

$16.69

11061

GASKET,TAIL LAMP LENS

11061-1089

$7.90

23016

LAMP-ASSY,LICENSE

23016-0007

$83.80

23025

LAMP-TAIL

23025-0025

$157.70

23026

LENS,LAMP

23026-1054

$9.28

23026A

LENS,TAIL LAMP

23026-1246

$71.34

92002

BOLT,UPSET-WP,6X12

92002-1884

$4.11

92009

SCREW,TAPPING,4X16

92009-1966

$2.41

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X20X1.6

92022-1557

$1.40

92027

COLLAR,L=13.1,BLACK

92027-1450

$6.22

92027A

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 21/5W

92069-063

$9.31

92069A

BULB,12V 5W

92069-1055

$5.18

92075

DAMPER,10X24X12

92075-1690

$5.00

92075A

DAMPER RUBBER,RR FENR

92075-209

$4.69

92153

BOLT,FLANGED,6X25

92153-0514

$2.12
