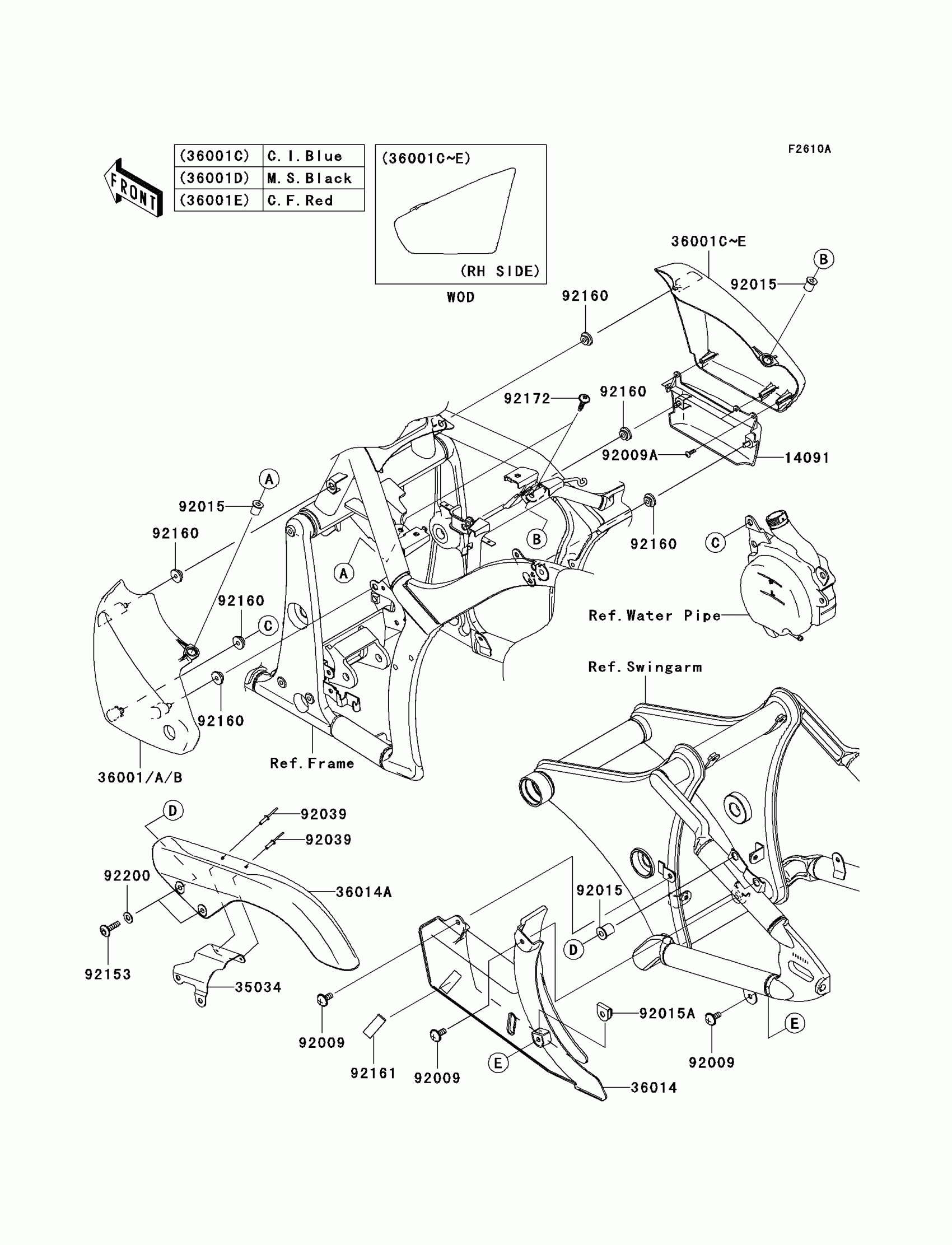

Kawasaki Vulcan® 900 Classic Side Covers/Chain Cover(BAF) Diagram

Description

Price

14091

COVER,SIDE COVER,RH

14091-0641

$13.48

35034

REINFORCE

35034-0082

$16.97

36001B

COVER-SIDE,LH,C.F.RED

36001-0081-816

$110.65

36001E

COVER-SIDE,RH,C.F.RED

36001-0082-816

$117.98

36014

CASE-CHAIN,LWR

36014-0031

$46.35

36014A

CASE-CHAIN,UPP

36014-0032

$102.78

92009

SCREW,6X14

92009-1662

$3.92

92009A

SCREW,TAPPING,4X14

92009-1792

$2.26

92015

NUT

92015-1700

$8.58

92015A

NUT,CLIP,6MM

92015-1904

$6.57

92039

RIVET

92039-1251

$1.34

92153

BOLT,SOCKET,6X22

92153-1356

$2.15

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0124

$3.44

92172

SCREW,6X26

92172-0137

$4.69

92200

WASHER,6.5X14X1

92200-1388

$2.46

36001

COVER-SIDE,LH,C.I.BLUE

36001-0081-25U

$118.28

36001A

COVER-SIDE,LH,M.S.BLACK

36001-0081-660

$103.56

36001C

COVER-SIDE,RH,C.I.BLUE

36001-0082-25U

$118.28

36001D

COVER-SIDE,RH,M.S.BLACK

36001-0082-660

$103.56
