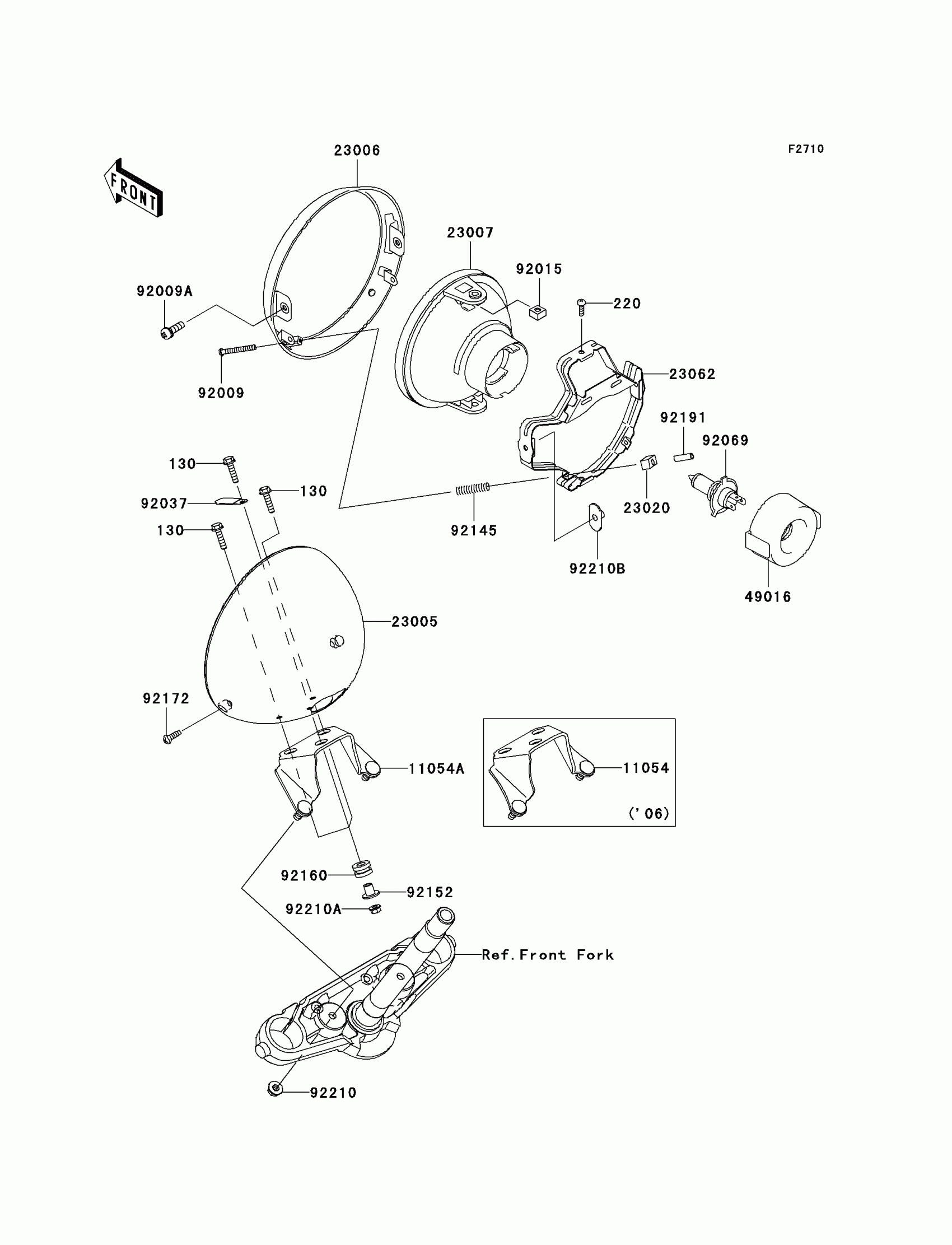

Kawasaki Vulcan® 900 Classic LT Headlight(s)(D6F-D8F) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BA0625

$1.20

220

SCREW-PAN-CROS,5X16

220AA0516

$2.06

11054A

BRACKET,HEAD LAMP

11054-1201

$52.34

23005

BODY-COMP-HEAD LAMP

23005-0014

Unavailable

23006

RIM-LAMP

23006-1081

$84.95

23007

LENS-COMP,HEAD LAMP

23007-1396

$147.32

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

23062

BRACKET-COMP,HEAD LAMP

23062-1132

$50.47

49016

COVER-SEAL,SOCKET

49016-1203

$12.14

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

$5.91

92009A

SCREW,5X16

92009-1879

$1.06

92015

NUT,5MM

92015-1157

$4.87

92037

CLAMP,L=45

92037-1539

$5.00

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92145

SPRING,HEAD LAMP LENS

92145-1268

$4.96

92152

COLLAR

92152-1074

$6.22

92160

DAMPER,10X20X12

92160-1167

$4.69

92172

SCREW,5X14

92172-0145

$2.12

92191

TUBE,3.5X5.5X19

92191-1217

$2.44

92210

NUT,FLANGED,8MM

92210-0004

$5.38

92210A

NUT,FLANGED,6MM

92210-0368

$1.34

92210B

NUT,SPECIAL,5MM

92210-1060

$2.46
