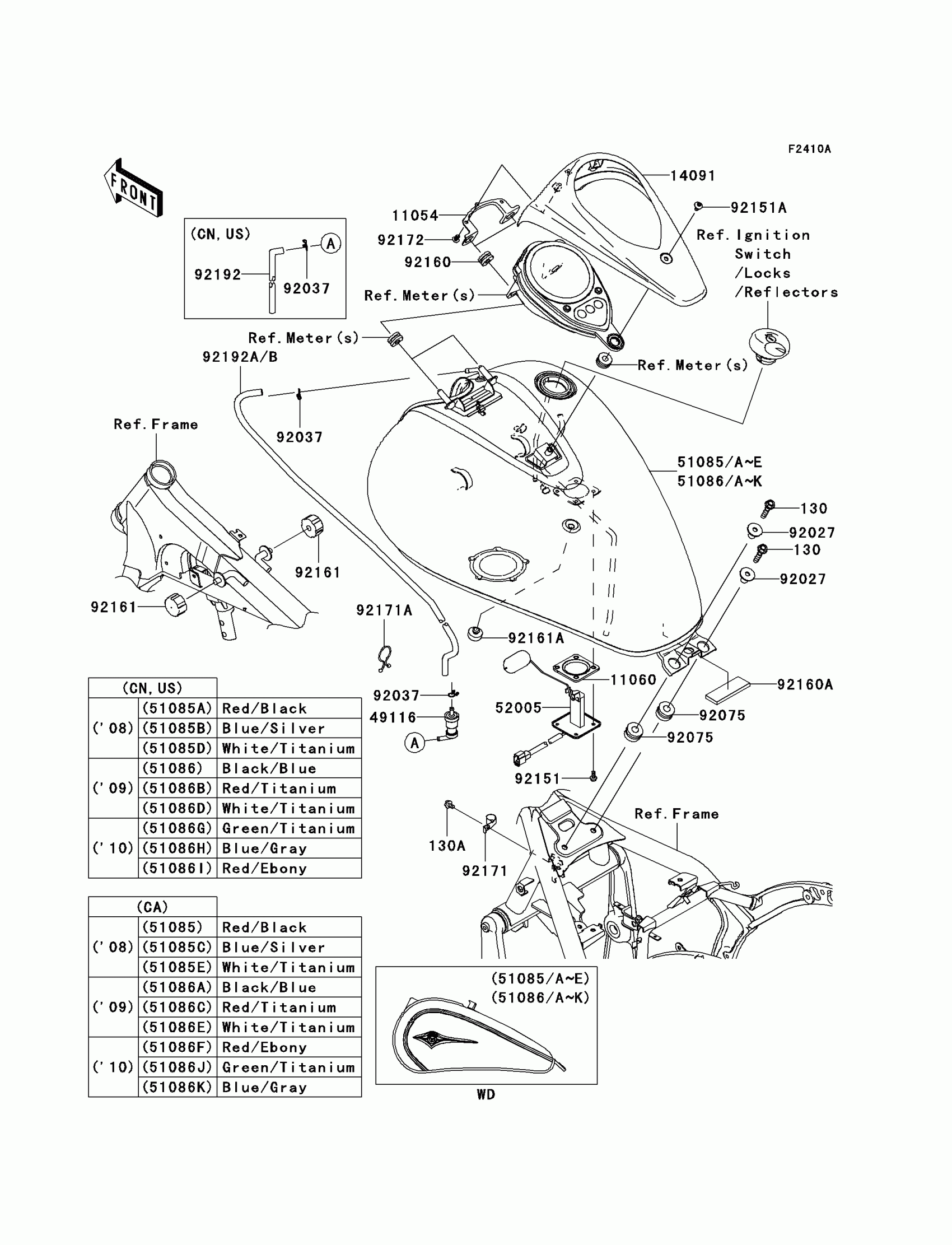

Kawasaki Vulcan® 900 Classic LT Fuel Tank(D8F-DAF) Diagram

#

Description
Price

11054

BRACKET,METER,FR

11054-0034

$13.60

11060

GASKET,FUEL GAUGE

11060-1952

$21.19

14091

COVER,METER

14091-0516

$123.18

49116

VALVE-ASSY,CHECK

49116-0014

$46.35

130

BOLT-FLANGED,8X30

130BA0830

$1.98

130A

BOLT-FLANGED,6X10

130BB0610

$2.49

52005

GAUGE,FUEL

52005-0083

Unavailable

92027

COLLAR,L=19.3

92027-1780

$6.57

92075

DAMPER

92075-1736

$6.57

92151

BOLT,5X12

92151-1599

$1.91

92151A

BOLT,SOCKET,6X12

92151-1940

$3.74

92160

DAMPER

92160-1162

$5.00

92160A

DAMPER

92160-1323

$4.10

92161

DAMPER,FUEL TANK

92161-0293

$7.83

92161A

DAMPER

92161-1065

$3.73

92171

CLAMP

92171-0595

$5.65

92171A

CLAMP

92171-1185

$2.46

92172

SCREW,TAPPING,5X14

92172-0006

$2.80

51086F

TANK-COMP-FUEL,RED/EBONY

51086-5279-28C

$1,324.49

51086G

TANK-COMP-FUEL,GREEN/TITANIUM

51086-5292-25A

$1,672.15

51086H

TANK-COMP-FUEL,BLUE/GRAY

51086-5293-28E

$1,672.15

51086I

TANK-COMP-FUEL,RED/EBONY

51086-5296-28C

$1,324.49

51086J

TANK-COMP-FUEL,GREEN/TITANIUM

51086-5297-25A

$1,324.49

51086K

TANK-COMP-FUEL,BLUE/GRAY

51086-5298-28E

$1,324.49

92037

CLAMP,TUBE

92037-147

$7.34

92037

CLAMP,TUBE

92037-147

$7.34

92192

TUBE,TANK-SEPARATOR,BLUE

92192-0215

$13.02

92192A

TUBE,FUEL TANK-VALVE

92192-0303

$19.69

92192B

TUBE,FUEL TANK-VALVE

92192-0526

$79.52
