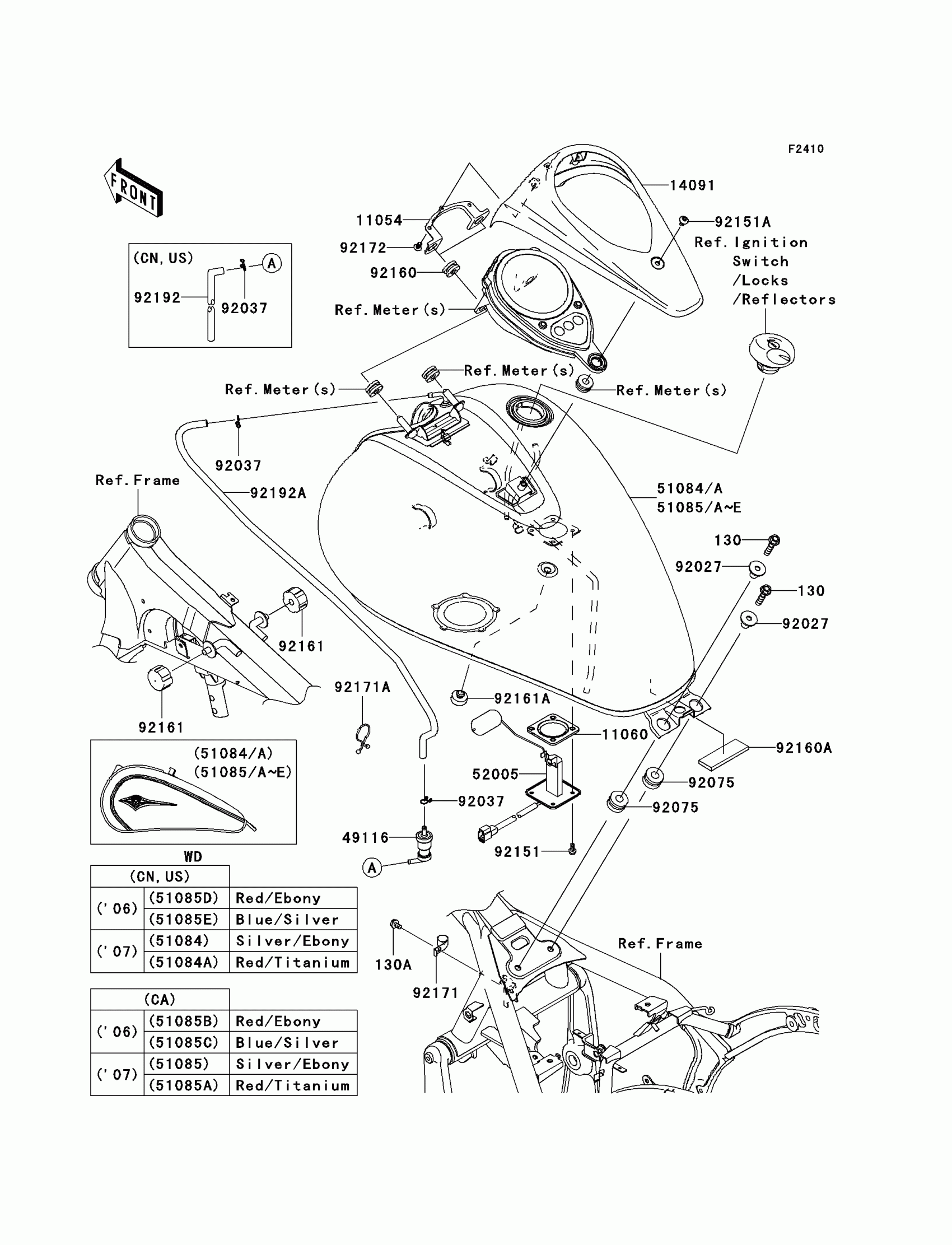

Kawasaki Vulcan 900 Classic LT Fuel Tank(D6F/D7F) Diagram

Description

Price

11054

BRACKET,METER,FR

11054-0034

$13.60

11060

GASKET,FUEL GAUGE

11060-1952

$21.19

14091

COVER,METER

14091-0516

$123.18

49116

VALVE-ASSY,CHECK

49116-0014

$46.35

52005

GAUGE,FUEL

52005-0020

$119.50

92027

COLLAR,L=19.3

92027-1780

$6.57

92075

DAMPER

92075-1736

$6.57

92151

BOLT,5X12

92151-1599

$1.91

130

BOLT-FLANGED,8X30

130BA0830

$1.98

130A

BOLT-FLANGED,6X10

130BB0610

$2.49

92151A

BOLT,SOCKET,6X12

92151-1940

$3.74

92160

DAMPER

92160-1162

$5.00

92160A

DAMPER

92160-1323

$4.10

92161

DAMPER,FUEL TANK

92161-0293

$7.83

92161A

DAMPER

92161-1065

$3.73

92171

CLAMP

92171-0595

$5.65

92171A

CLAMP

92171-1185

$2.46

92172

SCREW,TAPPING,5X14

92172-0006

$2.80

92192A

TUBE,FUEL TANK-VALVE

92192-0303

$19.69

51084

TANK-COMP-FUEL,SILVER/EBONY

51084-5315-686

Unavailable

51084A

TANK-COMP-FUEL,RED/TITANIUM

51084-5316-10W

Unavailable

51085

TANK-COMP-FUEL,SILVER/EBONY

51085-5119-686

Unavailable

51085A

TANK-COMP-FUEL,RED/TITANIUM

51085-5120-10W

Unavailable

92037

CLAMP,TUBE

92037-147

$7.34

92037

CLAMP,TUBE

92037-147

$7.34

92192

TUBE,TANK-SEPARATOR,BLUE

92192-0215

$13.02
