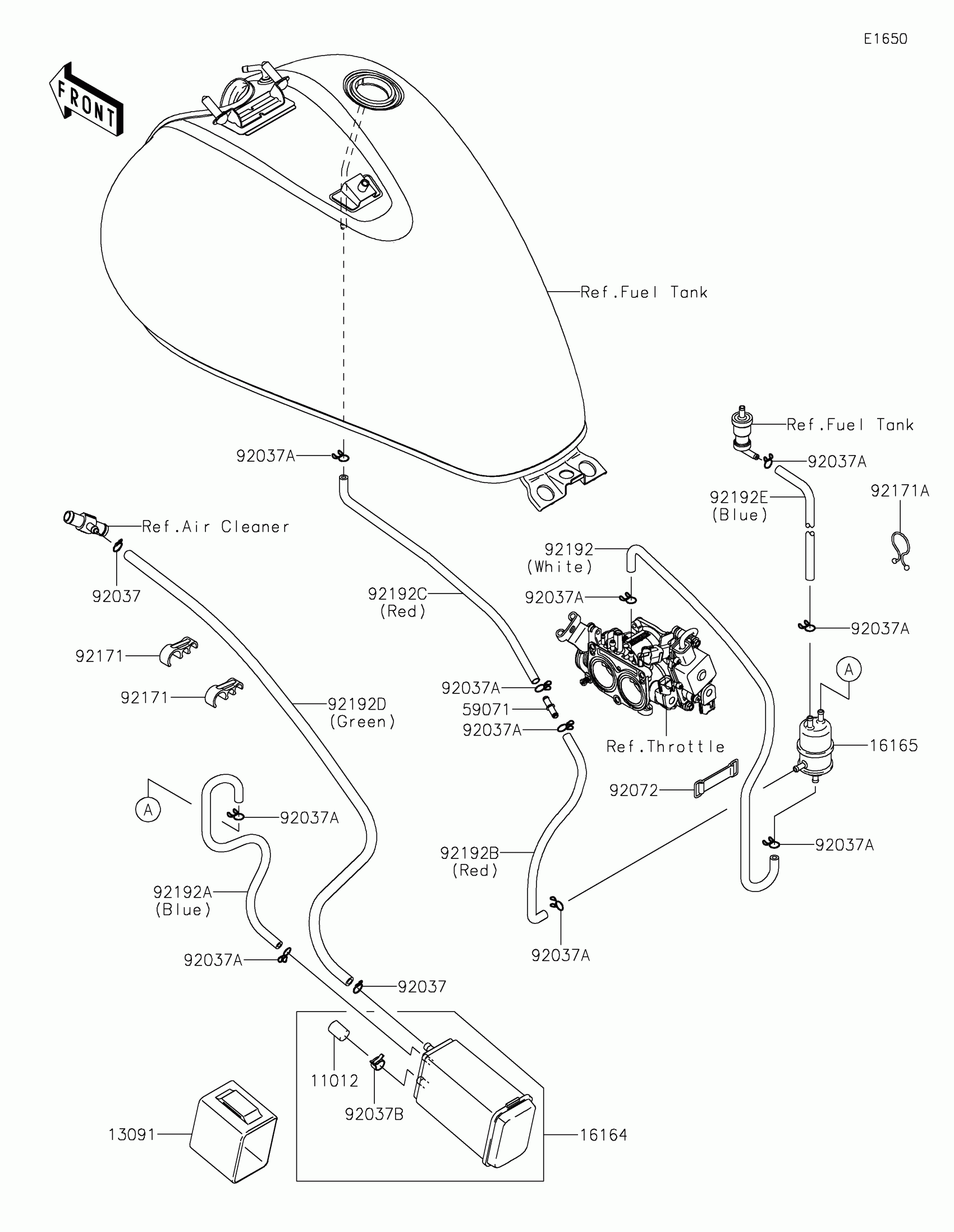

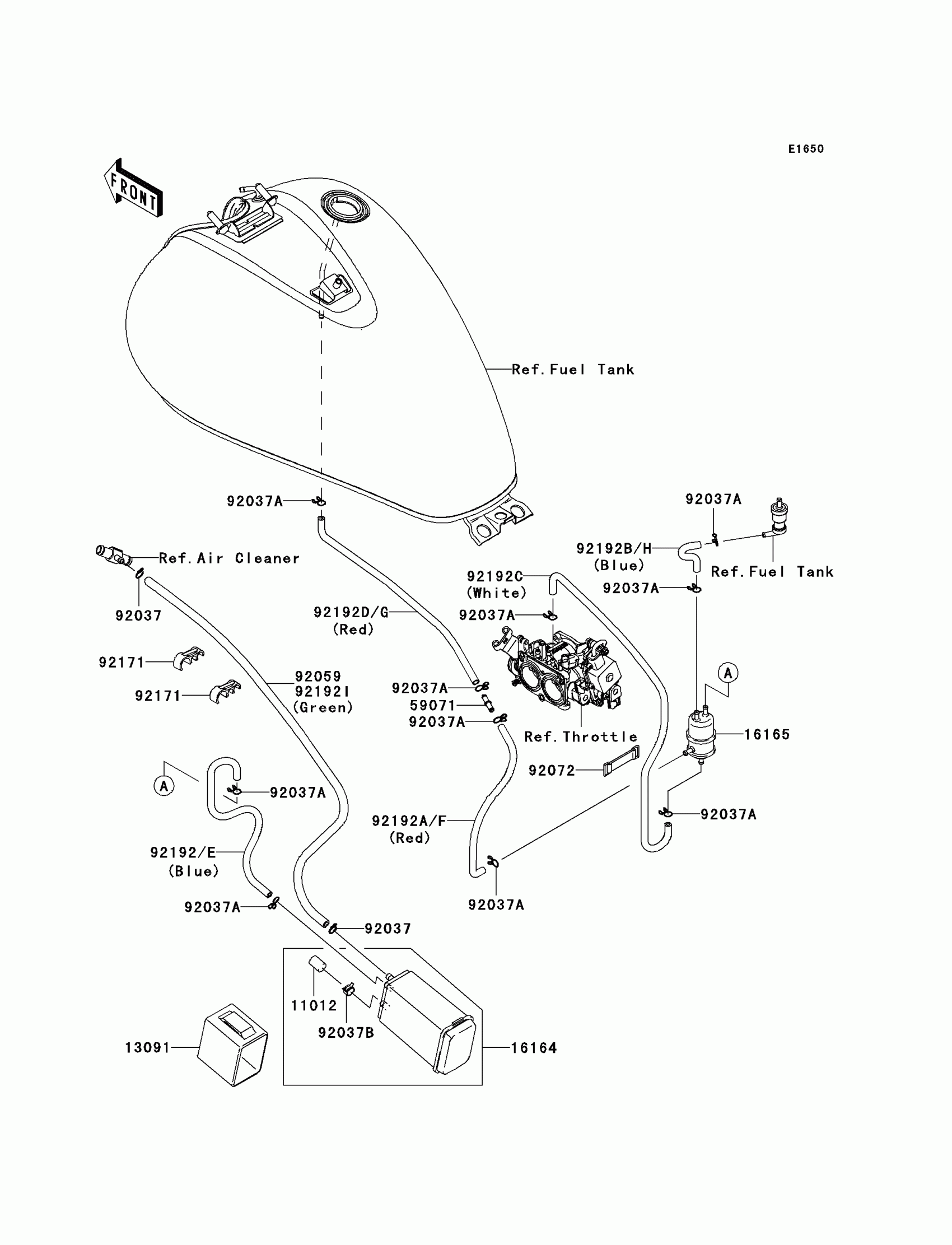

Kawasaki Vulcan® 900 Classic LT Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

13091

HOLDER,CANISTER

13091-1308

$38.44

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

59071

JOINT

59071-3717

$3.55

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,CANISTER

92037-1512

$6.57

92072

BAND,L=50

92072-1419

$16.08

92171

CLAMP

92171-0765

$8.68

92192C

TUBE,SEPARATOR-THROBO,WHITE

92192-0275

$16.72

92192E

TUBE,SEPARATOR-CANISTER,BLUE

92192-0505

$46.35

92192F

TUBE,SEPARATOR-JOINT,RED

92192-0506

$46.35

92192G

TUBE,JOINT-TANK,RED

92192-0507

$46.35

92192H

TUBE,SEPARATOR-VALVE,BLUE

92192-0508

$33.67

92192I

TUBE,7X12X760,GREEN

92192-0509

$46.35
