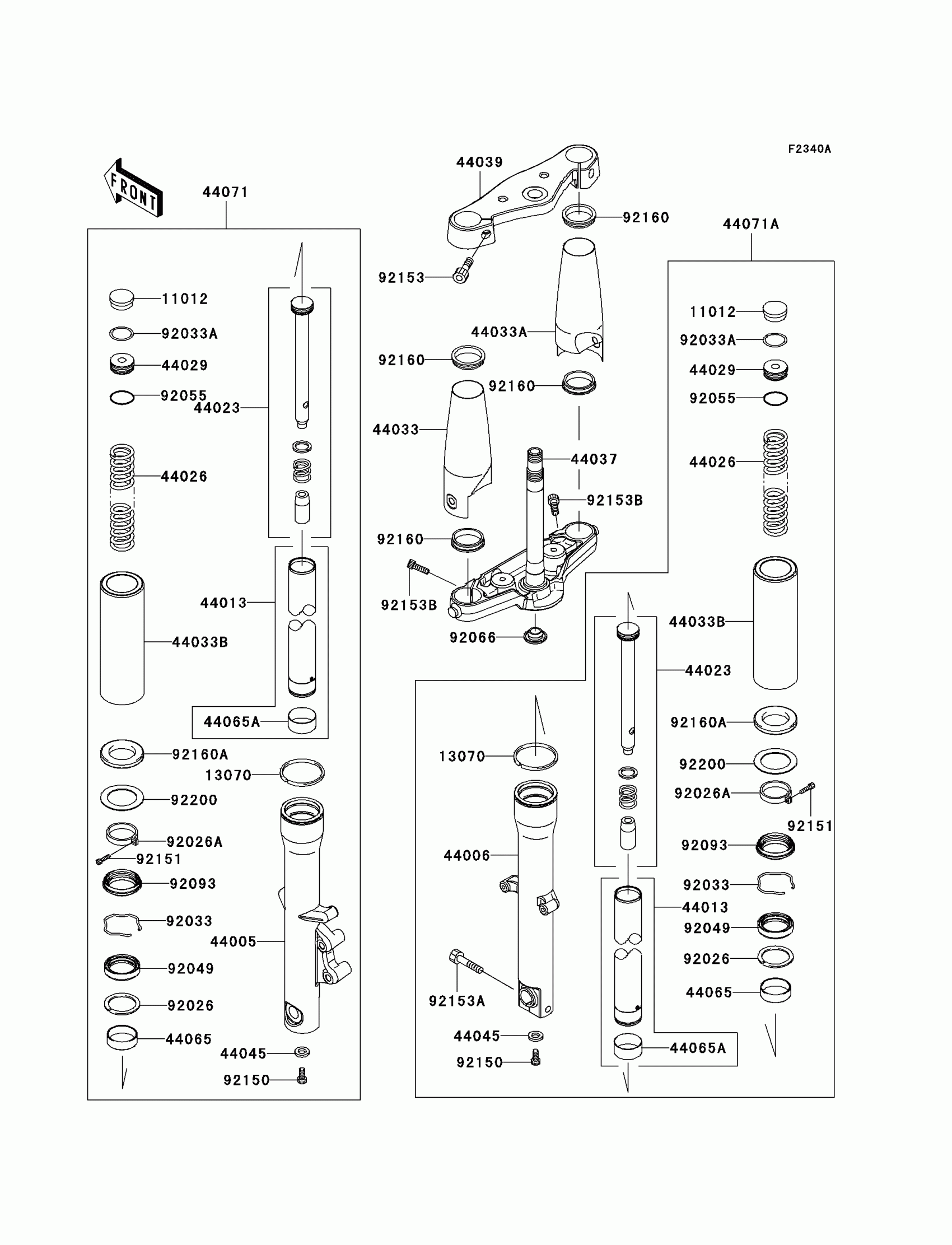

Kawasaki Vulcan® 900 Classic LT Front Fork(JKAVN2D1 7A010828-) Diagram

Description

Price

11012

CAP,FORK TOP

11012-1618

$25.14

13070

GUIDE

13070-0056

$11.82

44005

PIPE-LEFT FORK OUTER

44005-0043

$390.58

44006

PIPE-RIGHT FORK OUTER

44006-0043

Unavailable

44013

PIPE-FORK INNER

44013-0049

Unavailable

44023

CYLINDER-SET-FORK

44023-0042

$92.02

44026

SPRING-FRONT FORK

44026-0074

$77.34

44029

SEAT-FORK SPRING

44029-0008

$33.04

44033

COVER-FORK,LH

44033-0035

$116.60

44033A

COVER-FORK,RH

44033-0037

$116.60

44033B

COVER-FORK

44033-0039

$116.46

44037

HOLDER-FORK UNDER

44037-0068

$352.37

44039

HOLDER-FORK UPPER

44039-0062

$316.71

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK

44065-0019

$25.24

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1087

$30.09

44071

DAMPER-ASSY,FORK,LH

44071-0316

Unavailable

44071A

DAMPER-ASSY,FORK,RH

44071-0317

Unavailable

92026

SPACER,FORK

92026-0090

$20.70

92026A

SPACER

92026-1515

$15.83

92033

RING-SNAP

92033-1222

$6.51

92033A

RING-SNAP,SPRING SEAT

92033-1223

$6.82

92049

SEAL-OIL

92049-0058

$25.22

92055

RING-O,SPRING SEAT

92055-1363

$7.34

92066

PLUG

92066-0078

$12.18

92093

SEAL,DUST

92093-0035

$25.59

92150

BOLT,SOCKET,8X18

92150-1432

$9.91

92151

BOLT,SOCKET,4X16

92151-1356

$2.46

92153

BOLT,SOCKET,8X30

92153-0500

$10.86

92153A

BOLT

92153-0533

$10.86

92153B

BOLT,SOCKET,10X25

92153-1376

$4.65

92160

DAMPER

92160-1892

$3.57

92160A

DAMPER

92160-1927

$7.91

92200

WASHER

92200-1417

$7.57
