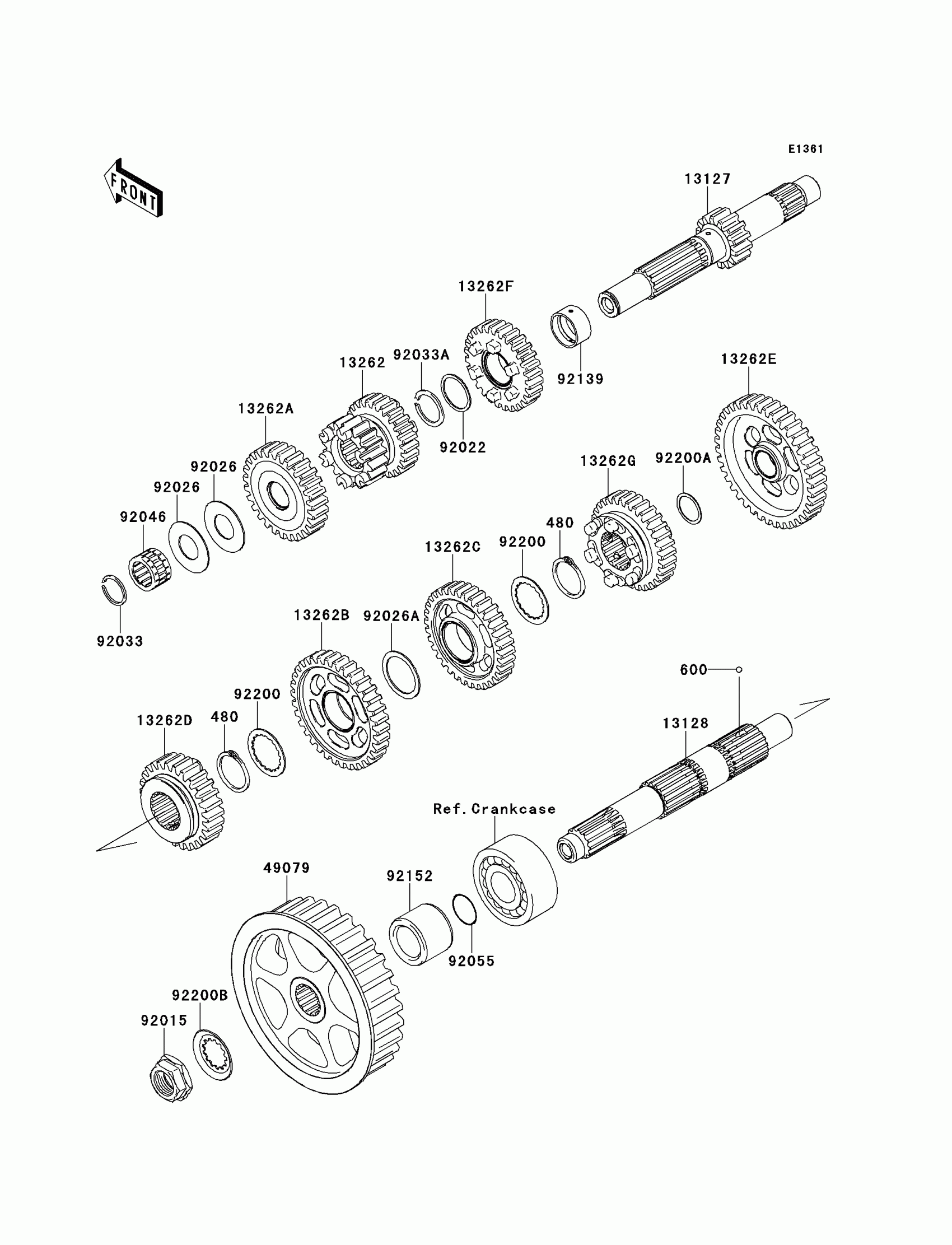

Kawasaki VULCAN 900 CLASSIC (Canadian) Transmission Diagram

Description

Price

480

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81

13127

SHAFT-TRANSMISSION INPUT,14T

13127-0038

$296.50

13128

SHAFT-TRANSMISSION OUTPUT

13128-0025

$239.43

13262

GEAR,INPUT 2ND&3RD,18T&25T

13262-0315

$135.60

13262A

GEAR,INPUT 5TH,27T

13262-0317

$146.02

13262B

GEAR,OUTPUT 2ND,34T

13262-0319

$135.60

13262C

GEAR,OUTPUT 3RD,34T

13262-0320

$135.60

13262D

GEAR,OUTPUT 5TH,26T

13262-0322

Unavailable

13262E

GEAR,OUTPUT LOW,39T

13262-0419

$135.60

13262F

GEAR,INPUT 4TH,28T

13262-0496

$121.74

13262G

GEAR,OUTPUT 4TH,31T

13262-0497

$135.60

49079

PULLEY-BELT

49079-0016

$117.54

92015

NUT,20MM

92015-1963

$14.90

92022

WASHER,25.3X30X1

92022-161

$10.65

92026

SPACER,20X51X1

92026-0102

$5.65

92026A

SPACER,30X38X1.0

92026-079

$8.86

92033

RING-SNAP,20MM

92033-015

$4.26

92033A

RING-SNAP,24MM

92033-026

$8.79

92046

BEARING-NEEDLE,PK20X27X17X3

92046-1303

$21.01

92055

RING-O

92055-035

$5.00

92139

BUSHING,4TH GEAR

92139-0186

$20.04

92152

COLLAR

92152-0335

$3.90

92200

WASHER,30.3X38X1.0

92200-0222

$4.92

92200A

WASHER,20.2X25.0X0.5

92200-0291

$2.15

92200B

WASHER

92200-1065

$6.63
