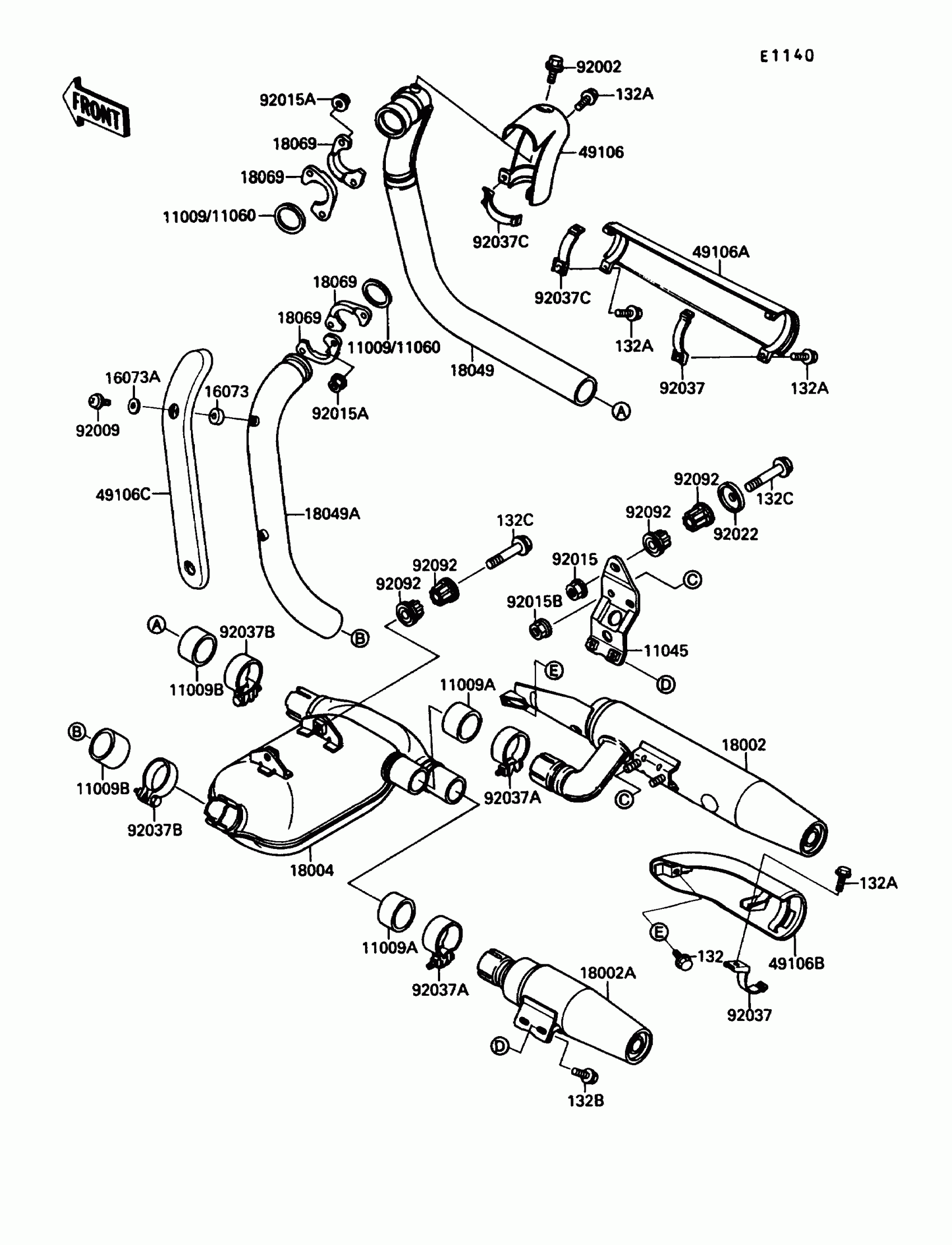

Kawasaki Vulcan 88 Muffler Diagram
#
Description
Price
11009A
GASKET,EXHAUST PIPE CONNECTING
11009-1666
$32.66
11009B
GASKET,EXHAUST PIPE
11009-1680
Unavailable
11045
BRACKET,MUFFLER
11045-1435
Unavailable
11060
GASKET,EXHAUST PIPE
11060-1119
$9.58
16073
INSULATOR,6.5X12.5X4
16073-1069
$5.84
16073A
INSULATOR,6.5X12.5X2
16073-1070
$4.78
18002
BODY-COMP-MUFFLER,UPP
18002-1806
Unavailable
18002A
BODY-COMP-MUFFLER,LWR
18002-1807
Unavailable
18004
CHAMBER-PREMUFFLER
18004-1057
Unavailable
18049
PIPE-EXHAUST,FR
18049-1406
Unavailable
18049A
PIPE-EXHAUST,RR
18049-1407
Unavailable
18069
HOLDER-EXHAUST PIPE
18069-1074
$35.53
49106
COVER-EXHAUST PIPE,FR
49106-1095
$98.75
49106A
COVER-EXHAUST PIPE,FR
49106-1096
Unavailable
49106B
COVER-MUFFLER
49106-1107
$136.33
49106C
COVER-MUFFLER,PIPE,RR
49106-1109
$108.43
92002
BOLT,6X8
92002-1604
$5.24
92009
SCREW
92009-1517
$5.33
92015
NUT,FLANGED,8MM
92015-1014
$0.65
92015A
NUT,CAP,8MM
92015-1371
$5.00
92015B
NUT,8MM
92015-1398
$4.80
92022
WASHER,CUP TYPE
92022-1270
$13.98
92037
CLAMP,MUFFLER COVER
92037-1615
$15.39
92037A
CLAMP,52MM
92037-1633
$27.31
92037B
CLAMP,59MM
92037-1863
Unavailable
92037C
CLAMP
92037-1874
$16.16
92092
BUSHING-RUBBER,MUFFLER
92092-1013
$17.44
132
BOLT-FLANGED-SMALL,6X10
132E0610
$4.69
132A
BOLT-FLANGED-SMALL,6X20
132E0620
$4.44
132B
BOLT-FLANGED-SMALL,8X14
132E0814
$4.80
132C
BOLT-FLANGED-SMALL,8X55
132E0855
$6.52
