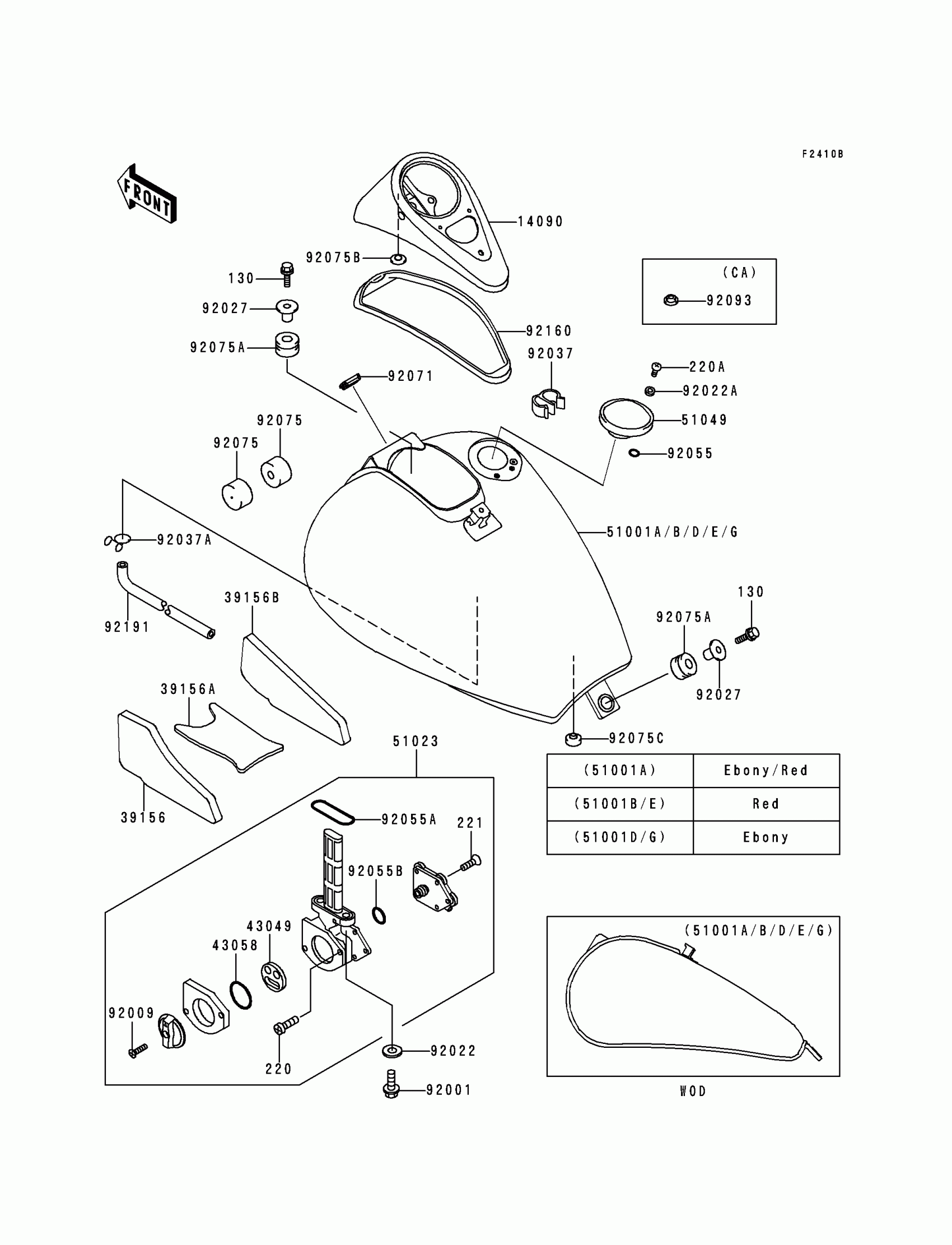

Kawasaki Vulcan 800 Fuel Tank(VN800-A4) Diagram

#

Description
Price

14090

COVER,METER

14090-1560

$121.59

39156

PAD,FUEL TANK,LH

39156-1512

$27.10

39156A

PAD,FUEL TANK,CNT

39156-1513

$27.10

39156B

PAD,FUEL TANK,RH

39156-1514

$28.48

43049

PACKING,TAP VALVE

43049-1075

Unavailable

43058

RING,TAP LEVER

43058-1083

$8.68

51023

TAP-ASSY,FUEL

51023-1219

$133.83

51049

CAP-TANK,FUEL

51049-1103

$110.44

130

BOLT-FLANGED,8X30

130H0830

$1.92

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

$3.41

92001

BOLT,6X25

92001-1524

$2.12

92009

SCREW,4X12

92009-1742

$2.65

92022

WASHER-PLAIN

92022-183

$3.92

92022A

WASHER,5.1X10X1.0

92022-1977

$3.65

92027

COLLAR,L=19.3

92027-1780

$6.57

92055

RING-O

92055-1023

$3.92

92055A

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92055B

RING-O

92055-1539

$6.45

92071

GROMMET

92071-1187

$4.96

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER

92075-1736

$6.57

92075B

DAMPER,RUBBER

92075-261

$4.31

92075C

DAMPER,9X24X14

92075-281

$6.22

92160

DAMPER,METER COVER

92160-1593

$49.28

51001A

TANK-COMP-FUEL,EBONY/C.P.RED

51001-1479-2N

Unavailable

51001B

TANK-COMP-FUEL,C.P.RED

51001-1531-A5

Unavailable

51001D

TANK-COMP-FUEL,EBONY

51001-1531-H8

$838.10

51001E

TANK-COMP-FUEL,C.P.RED

51001-1533-A5

Unavailable

51001G

TANK-COMP-FUEL,EBONY

51001-1533-H8

Unavailable

92037

CLAMP

92037-1458

$6.52

92037A

CLAMP,TUBE

92037-147

$7.34

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92191

TUBE

92191-1015

$32.11
