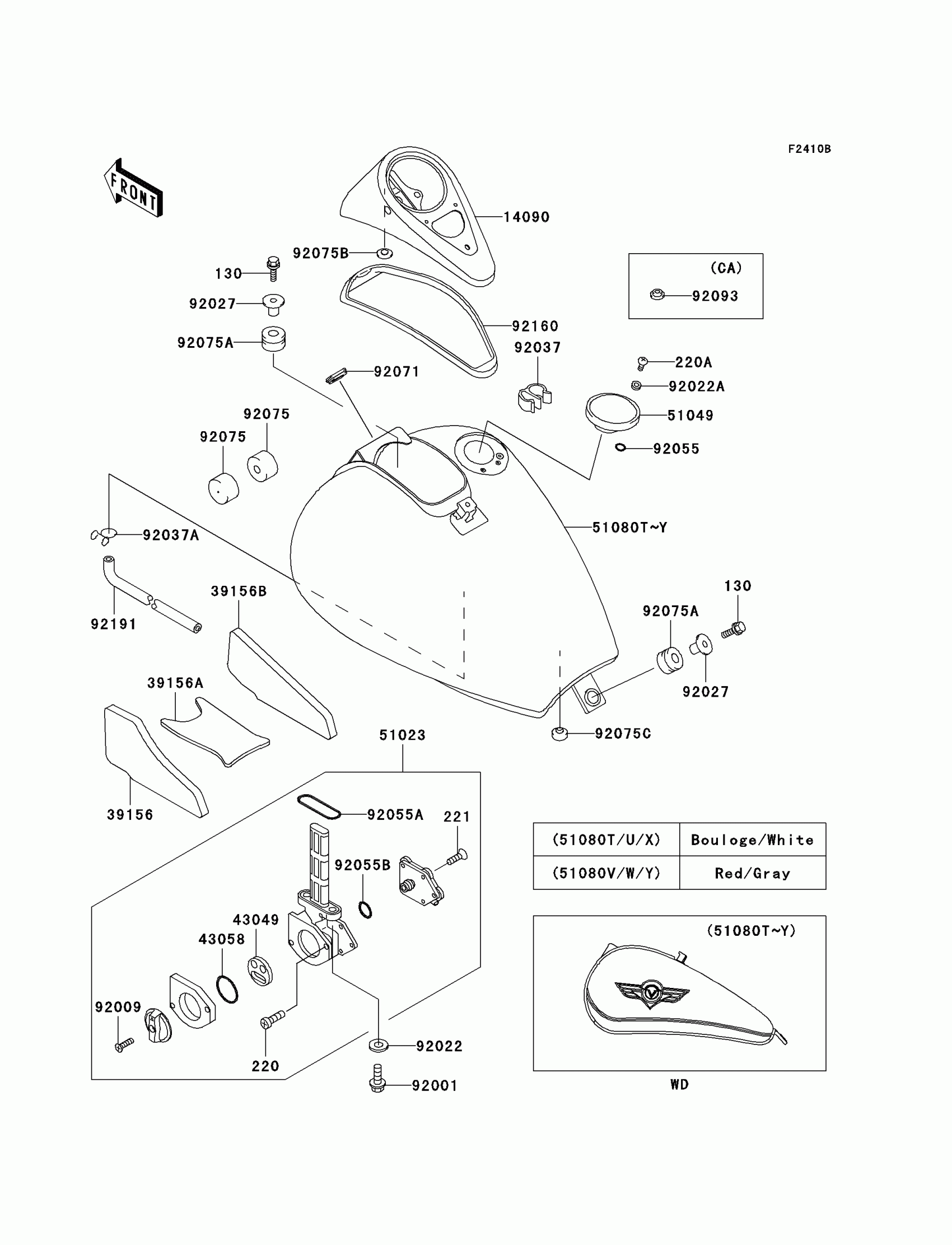

Kawasaki Vulcan 800 Classic Fuel Tank(4/4)(VN800-B3) Diagram

#

Description
Price

14090

COVER,METER

14090-1560

$121.59

39156

PAD,FUEL TANK,LH

39156-1512

$27.10

39156A

PAD,FUEL TANK,CNT

39156-1513

$27.10

39156B

PAD,FUEL TANK,RH

39156-1514

$28.48

43049

PACKING,TAP VALVE

43049-1075

Unavailable

43058

RING,TAP LEVER

43058-1083

$8.68

51023

TAP-ASSY,FUEL

51023-1219

$133.83

51049

CAP-TANK,FUEL

51049-1103

$110.44

92001

BOLT,6X25

92001-1524

$2.12

130

BOLT-FLANGED,8X30

130H0830

$1.92

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

$3.41

92009

SCREW,4X12

92009-1742

$2.65

92022

WASHER-PLAIN

92022-183

$3.92

92022A

WASHER,5.1X10X1.0

92022-1977

$3.65

92027

COLLAR,L=19.3

92027-1780

$6.57

92055

RING-O

92055-1023

$3.92

92055A

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92055B

RING-O

92055-1539

$6.45

92071

GROMMET

92071-1187

$4.96

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER

92075-1736

$6.57

92075B

DAMPER,RUBBER

92075-261

$4.31

92075C

DAMPER,9X24X14

92075-281

$6.22

92160

DAMPER,METER COVER

92160-1593

$49.28

51080T

TANK-COMP-FUEL,BOULOGE/WHITE

51080-5417-7S

Unavailable

51080U

TANK-COMP-FUEL,BOULOGE/WHITE

51080-5418-7S

Unavailable

51080V

TANK-COMP-FUEL,RED/GRAY

51080-5419-7U

Unavailable

51080W

TANK-COMP-FUEL,RED/GRAY

51080-5420-7U

Unavailable

51080X

TANK-COMP-FUEL,BOULOGNE/WHITE

51080-5440-2S

Unavailable

51080Y

TANK-COMP-FUEL,GRAY/RED

51080-5442-92

Unavailable

92037

CLAMP

92037-1458

$6.52

92037A

CLAMP,TUBE

92037-147

$7.34

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92191

TUBE

92191-1015

$32.11
