Description

Price

187

BOLT-UPSET-WSP,6X14

187D0614

Unavailable

11009

GASKET,TAIL LAMP

11009-1496

$17.40

14025

COVER,LICENSE LAMP

14025-1725

$18.40

14025A

COVER,LICENSE LAMP

14025-1728

$58.37

23016

LAMP-ASSY,LICENSE

23016-1061

$189.49

23025

LAMP-TAIL

23025-1116

$250.92

23026

LENS,TAIL LAMP

23026-1063

$47.53

23026A

LENS,LICENSE LAMP

23026-1064

$26.12

23027

BODY-COMP-TAIL LAMP

23027-1060

$153.54

23035

REFLECTOR-LAMP,LICENSE

23035-1060

$23.41

23036

BRACKET-TAIL LAMP

23036-1104

$79.79

28005

BODY-LAMP,LICENSE

28005-1051

$27.90

92009

SCREW,TAPPING,4X25

92009-1069

$3.92

92009A

SCREW,TAPPING,5X40

92009-1263

$3.92

92009B

SCREW,TAPPING,4X20

92009-1378

$4.10

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92069

BULB,12V 27/8W

92069-059

$8.12

92069A

BULB,12V 8W

92069-1012

$5.18

92075

DAMPER,LICENSE LAMP

92075-1676

$9.89

92075A

DAMPER,TAIL LAMP

92075-1692

$29.94

92075B

DAMPER,LICENSE LAMP

92075-1694

$24.57

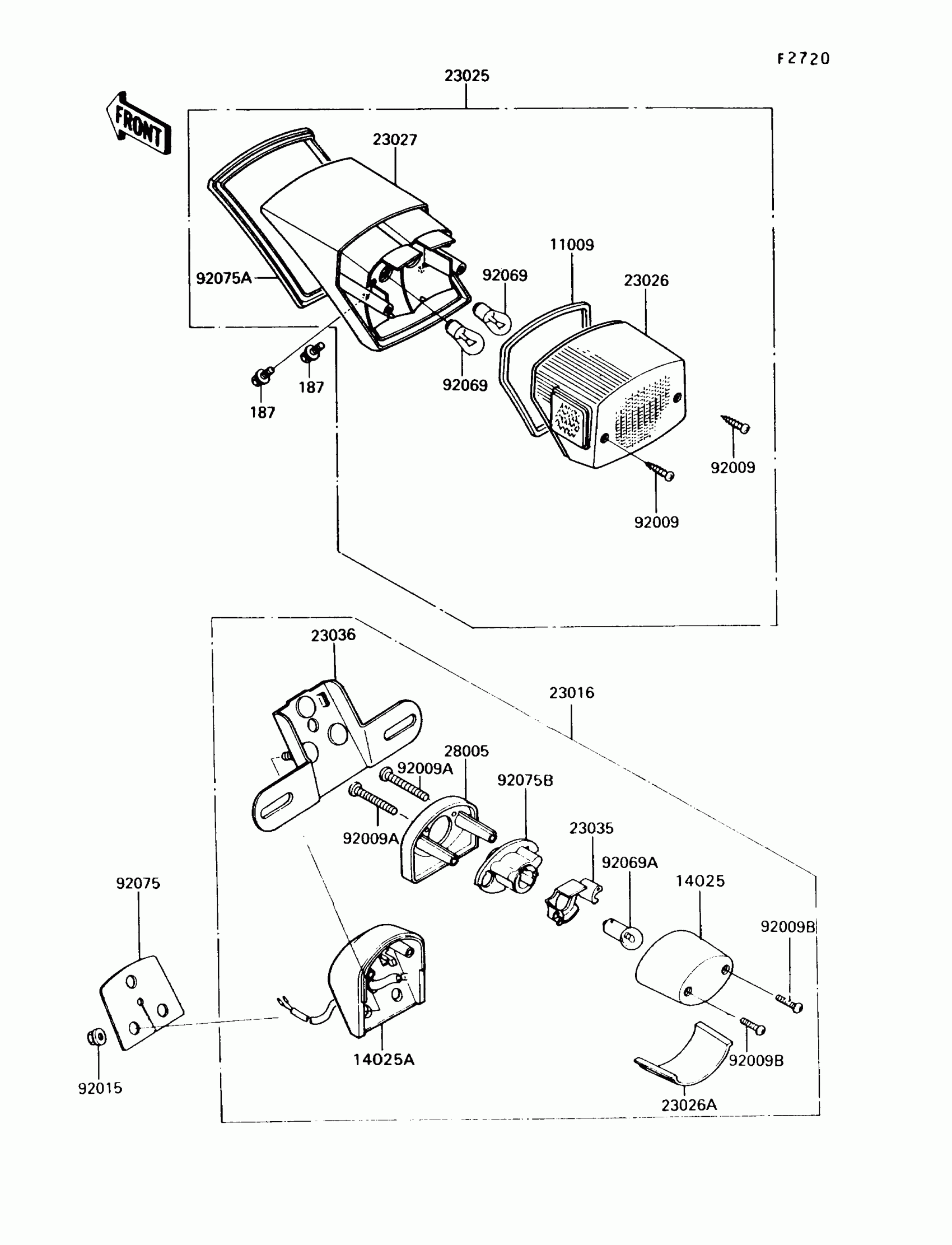

Kawasaki Vulcan 750 Tail Lamp Diagram

BOLT-UPSET-WSP,6X14

GASKET,TAIL LAMP

COVER,LICENSE LAMP

COVER,LICENSE LAMP

LAMP-ASSY,LICENSE

LAMP-TAIL

LENS,TAIL LAMP

LENS,LICENSE LAMP

BODY-COMP-TAIL LAMP

REFLECTOR-LAMP,LICENSE

BRACKET-TAIL LAMP

BODY-LAMP,LICENSE

SCREW,TAPPING,4X25

SCREW,TAPPING,5X40

SCREW,TAPPING,4X20

NUT,FLANGED,6MM

BULB,12V 27/8W

BULB,12V 8W

DAMPER,LICENSE LAMP

DAMPER,TAIL LAMP

DAMPER,LICENSE LAMP
