Description

Price

114

BOLT HEX HEAD 8X28

114G0828

$3.71

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6303ZZC3

601B6303ZZ

$40.38

41035A

PANEL-ASSY-BRAKE,RR

41035-1288

$548.57

41048A

SHOE-BRAKE

41048-1070

$51.67

41049

SPRING,BRAKE SHOE

41049-012

$9.49

41050

CAM-BRAKE

41050-1059

$39.27

41051

SEAL,BRAKE CAM

41051-003

$4.26

41053

LEVER-BRAKE CAM

41053-1063

$67.12

41068

AXLE,RR

41068-1191

$73.47

41073

WHEEL-ASSY,RR,SILVER NO.1

41073-1453-CX

$1,119.88

41085

INDICATOR

41085-1054

$14.32

42034

COUPLING,RR HUB

42034-1029

$190.50

42046

WASHER,17.3X32X3.2

42046-009

$7.84

92015

NUT,16MM

92015-055

$11.50

92027

COLLAR

92027-1486

$19.34

92027A

COLLAR,17.2X25X74

92027-1867

$24.57

92033

RING-SNAP,47MM

92033-1042

$4.22

92033A

RING-SNAP,194MM

92033-1075

$15.74

92075

DAMPER,RR HUB SHOCK

92075-1372

$109.81

92081

SPRING,BRAKE CAM LEVER RETURN

92081-1816

$11.38

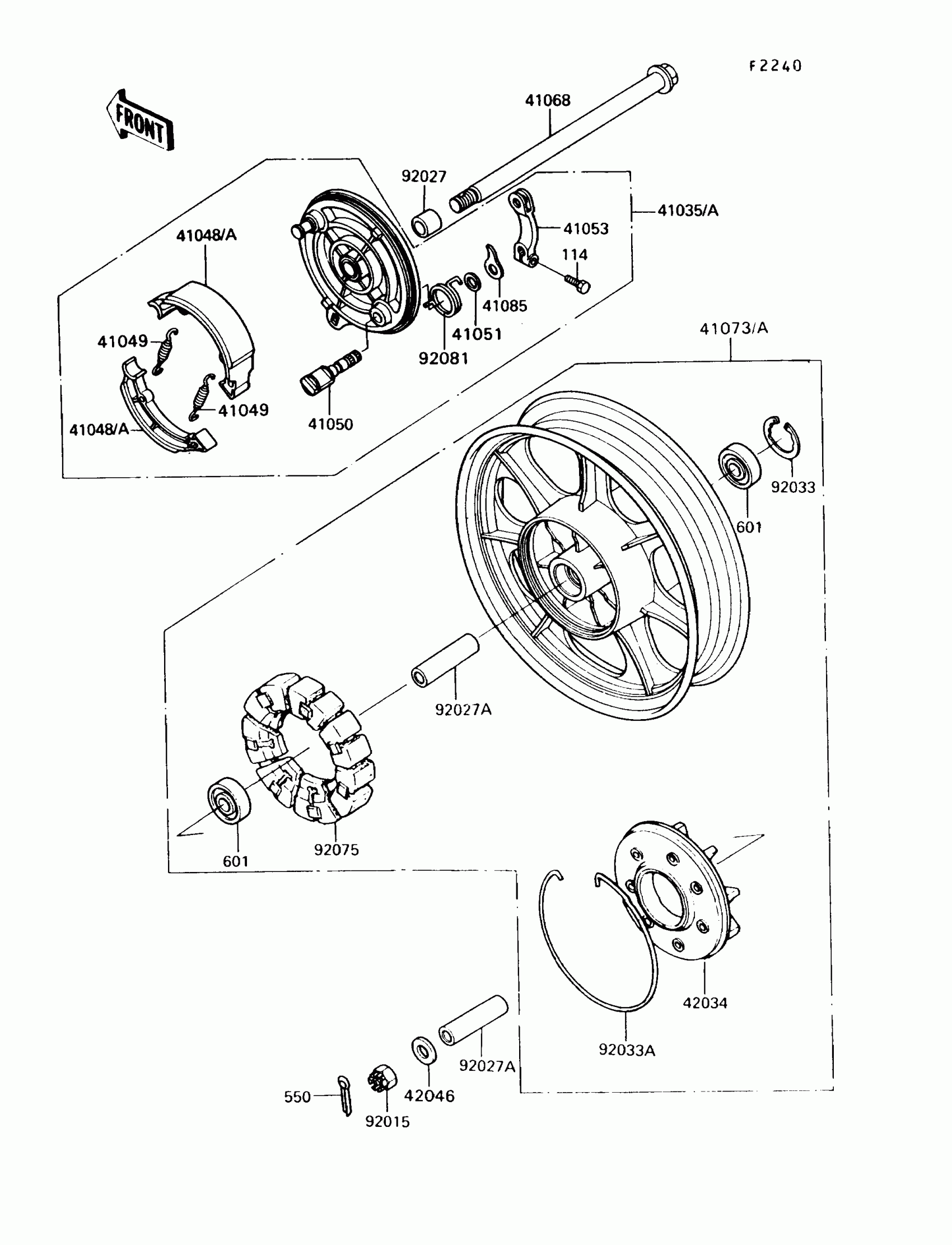

Kawasaki Vulcan 750 Rear Hub Diagram
