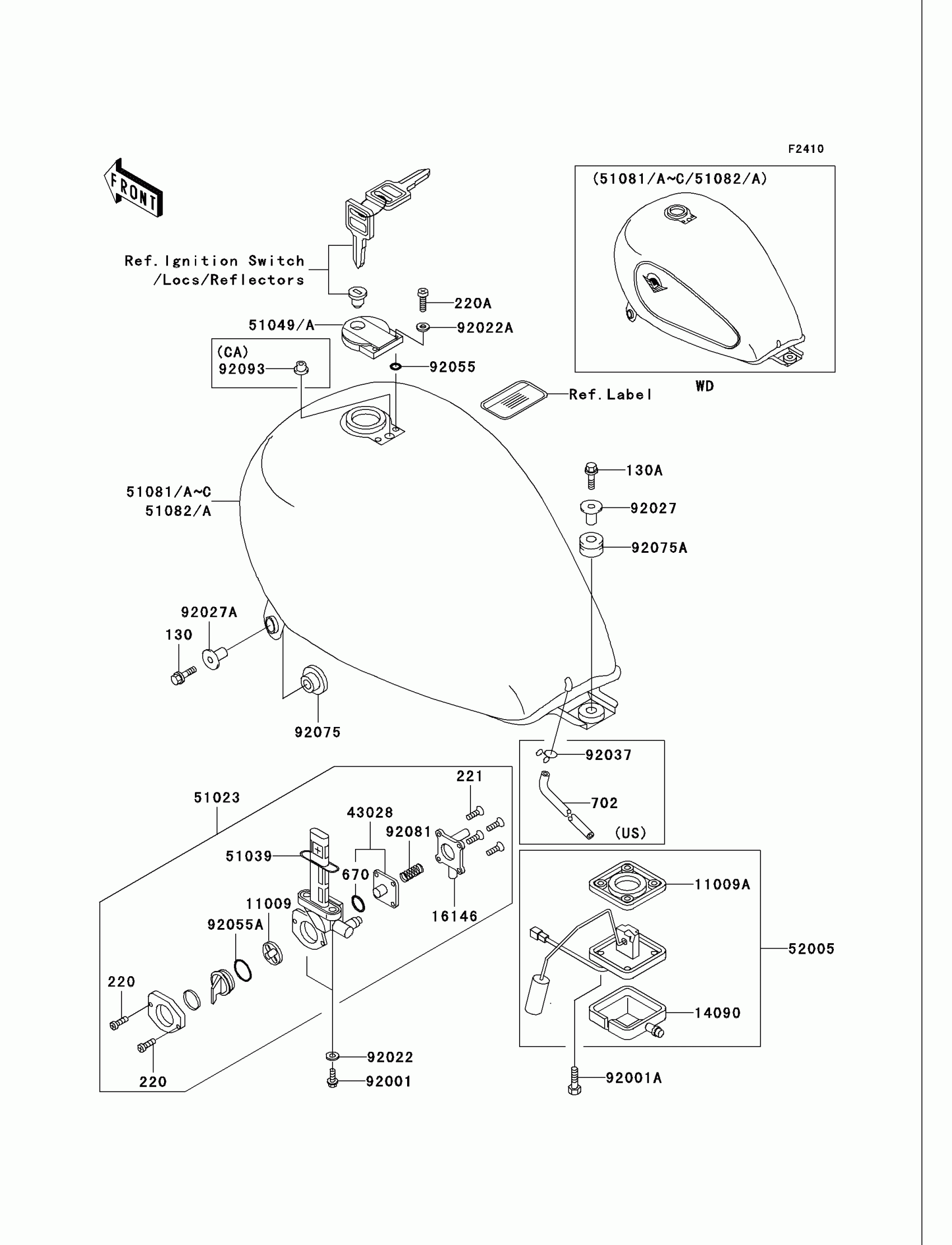

Kawasaki Vulcan 750 Fuel Tank(VN750-A15-A18) Diagram

#

Description
Price

11009

GASKET,TAP VALVE

11009-1188

$5.74

11009A

GASKET,FUEL GAUGE

11009-1656

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

$17.07

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$25.31

43028

DIAPHRAGM

43028-1033

$22.90

51023

TAP-ASSY,FUEL

51023-1308

$132.18

51039

RING,TAP FLANGED

51039-003

$6.27

51049A

CAP-TANK,FUEL

51049-1139

$123.30

130

BOLT-FLANGED,8X25

130C0825

$2.74

130A

BOLT,FLANGED,8X30

130G0830

$1.92

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW PAN HEAD 5X10

220B0510

$0.69

221

SCREW-CSK-CROS,4X14

221B0414

$3.41

670

O RING,4MM

670B1504

$4.11

52005

GAUGE,FUEL

52005-1070

$129.49

92001

BOLT,6X20

92001-1091

$3.92

92001A

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER-PLAIN

92022-183

$3.92

92022A

WASHER,5.1X10X1.0

92022-1977

$3.65

92027

COLLAR,L=19.3

92027-1780

$6.57

92027A

COLLAR

92027-1929

$10.98

92055

RING-O

92055-1023

$3.92

92055A

RING-O,TAP LEVER

92055-1085

$5.05

92075

DAMPER,FUEL TANK

92075-1677

$7.62

92075A

DAMPER

92075-1736

$6.57

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.89

51082

TANK-COMP-FUEL,BLACK/SILVER

51082-5069-354

Unavailable

51082A

TANK-COMP-FUEL,BLACK/SILVER

51082-5070-354

Unavailable

702

TUBE-RUBBER,5X8X630

702A05630

$29.14

92037

CLAMP,TUBE

92037-1461

$3.88

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77
