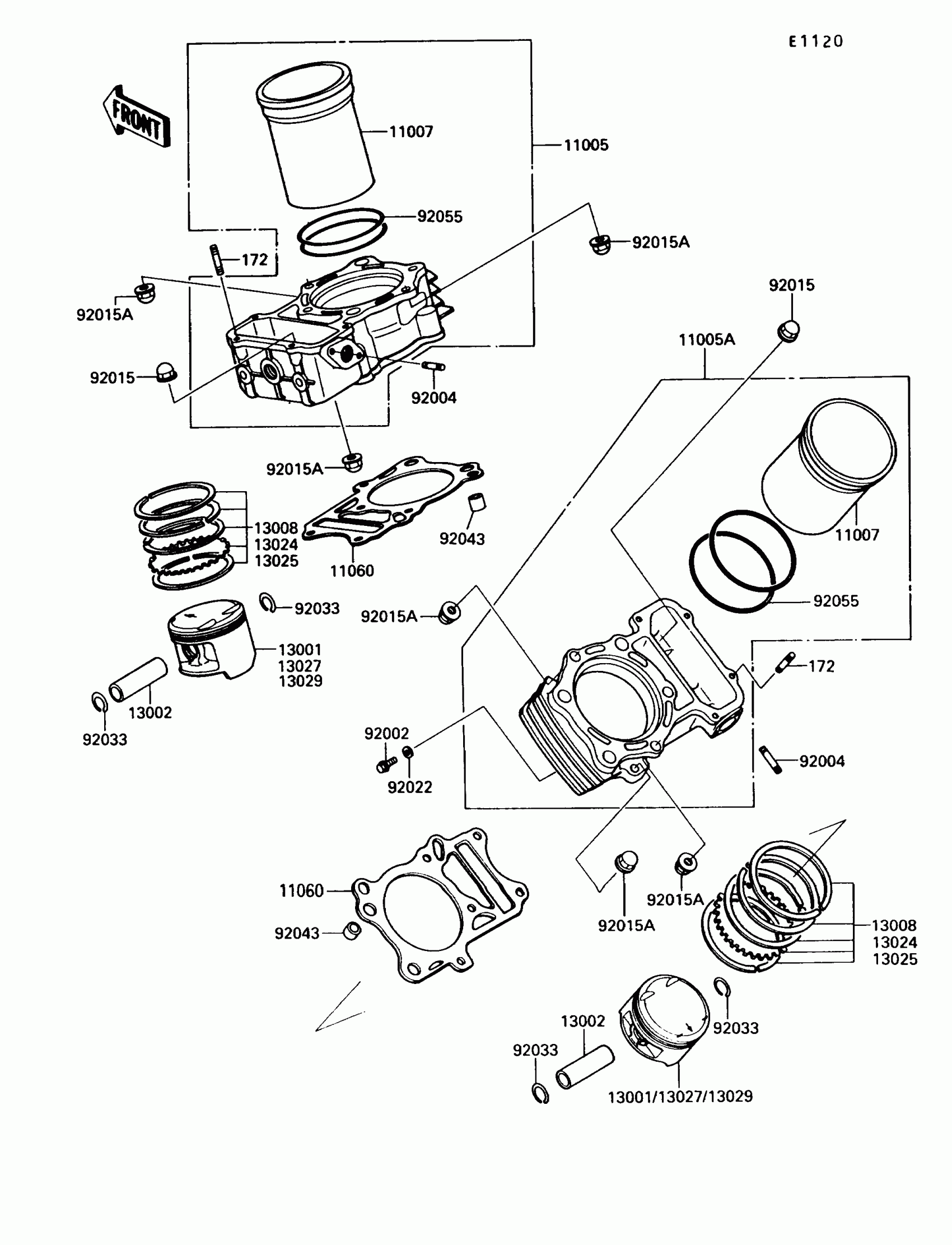

Kawasaki Vulcan 750 Cylinder/Piston Diagram

Description

Price

172

BOLT-STUD,6X20

172G0620

$1.31

11005

CYLINDER-ENGINE,FR

11005-1481

$896.26

11005A

CYLINDER-ENGINE,RR

11005-1483

$896.26

11007

LINER-CYLINDER

11007-1073

$177.47

11060

GASKET,CYLINDER BASE

11060-1084

Unavailable

13001

PISTON-ENGINE,STD

13001-1215

$132.96

13002

PIN-PISTON

13002-1056

$28.79

13008

RING-SET-PISTON,STD

13008-1077

$69.92

13024

RING-SET-PISTON LL,O/S 1.00

13024-1069

$84.27

13025

RING-SET-PISTON L,O/S 0.50

13025-1076

$78.63

13027

PISTON-ENGINE LL,O/S,1.00

13027-1128

$132.96

13029

PISTON-ENGINE L,O/S,0.50

13029-1128

$132.96

92002

BOLT,6X10

92002-1628

$4.76

92004

STUD,6X18

92004-1154

$5.17

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,CAP,8MM

92015-1371

$5.00

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92033

RING-SNAP

92033-1188

$3.89

92043

PIN,11X14X12.3

92043-1266

$1.08

92055

RING-O,92MM

92055-1274

$15.89
