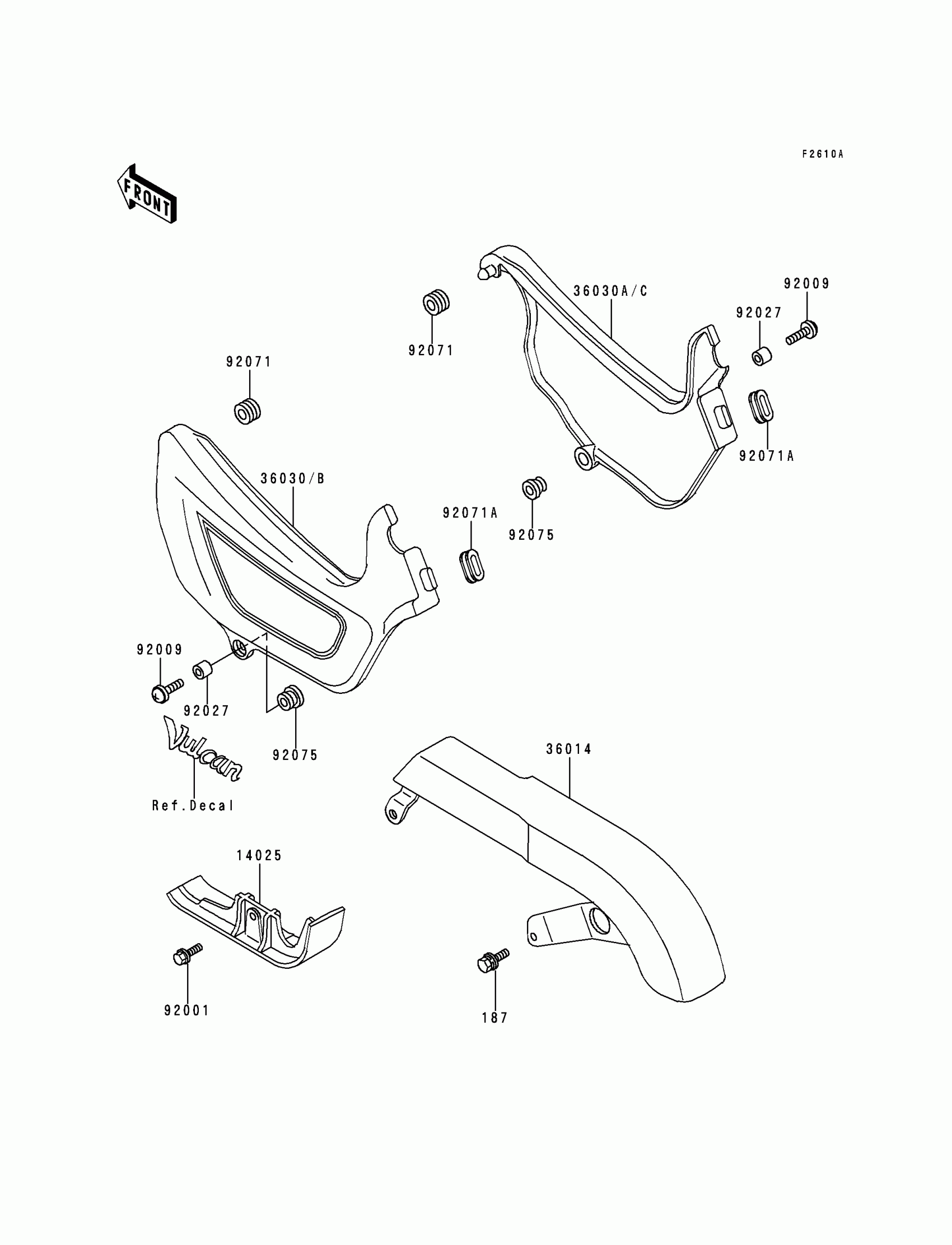

Kawasaki Vulcan 500 Side Covers/Chain Cover(EN500-A4) Diagram

Description

Price

187

BOLT-UPSET-WSP

187B0616

$1.17

14025

COVER,DRIVE BELT

14025-1381

Unavailable

36014

CASE-CHAIN

36014-1163

Unavailable

36030B

COVER-SIDE,LH,P.T.GREEN

36030-5129-SM

$143.77

36030C

COVER-SIDE,RH,P.T.GREEN

36030-5130-SM

$143.77

92001

BOLT,6X16

92001-1772

$4.10

92009

SCREW,6X22,BLACK

92009-1256

$2.78

92027

COLLAR,6.8X10X12

92027-162

$6.57

92071

GROMMET

92071-056

$4.26

92071A

GROMMET

92071-1190

$5.18

92075

RUBBER,FENDER COVER

92075-174

$4.78

36030

COVER-SIDE,LH,L.V.RED

36030-5127-P5

$143.77

36030A

COVER-SIDE,RH,L.V.RED

36030-5128-P5

$143.77
