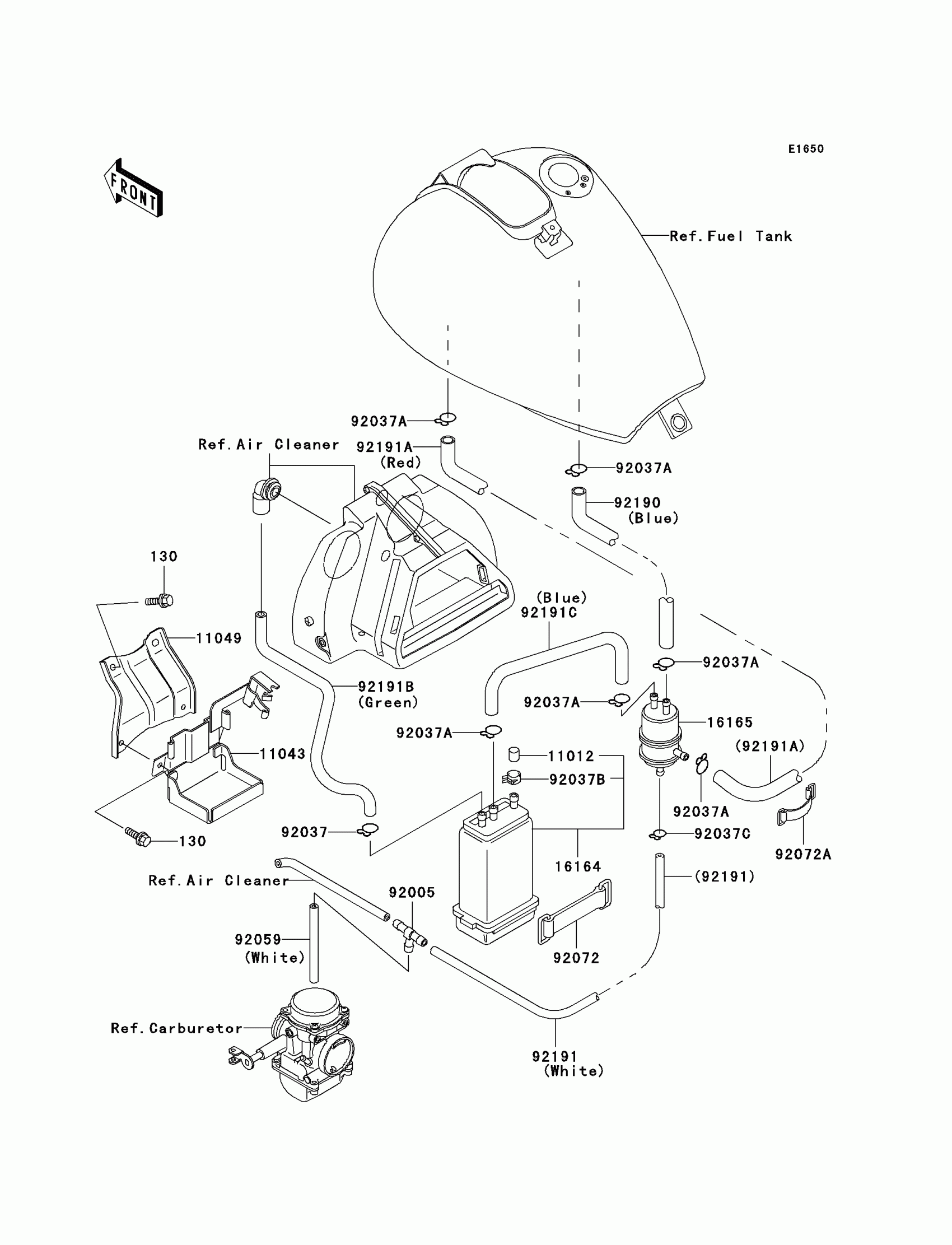

Kawasaki Vulcan 500 LTD Fuel Evaporative System(C6F/C7F)(CA) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BB0610

$2.49

11012

CAP,CANISTER

11012-1388

$8.51

11043

BRACKET,CANISTER

11043-1184

$60.55

11049

BRACKET

11049-1663

$31.86

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,CANISTER

92037-1512

$6.57

92037C

CLAMP

92037-1712

$5.00

92059

TUBE,4X9X100,WHITE

92059-1591

$11.38

92072

BAND,L=142.1

92072-006

$12.76

92072A

BAND,L=50

92072-1419

$16.08

92190

TUBE,SEPA-TANK

92190-1620

$40.06

92191

TUBE,WHITE

92191-1062

$21.17

92191A

TUBE,RED

92191-1063

$32.10

92191B

TUBE,GREEN

92191-1065

$25.03

92191C

TUBE,BLUE

92191-1076

$8.42
