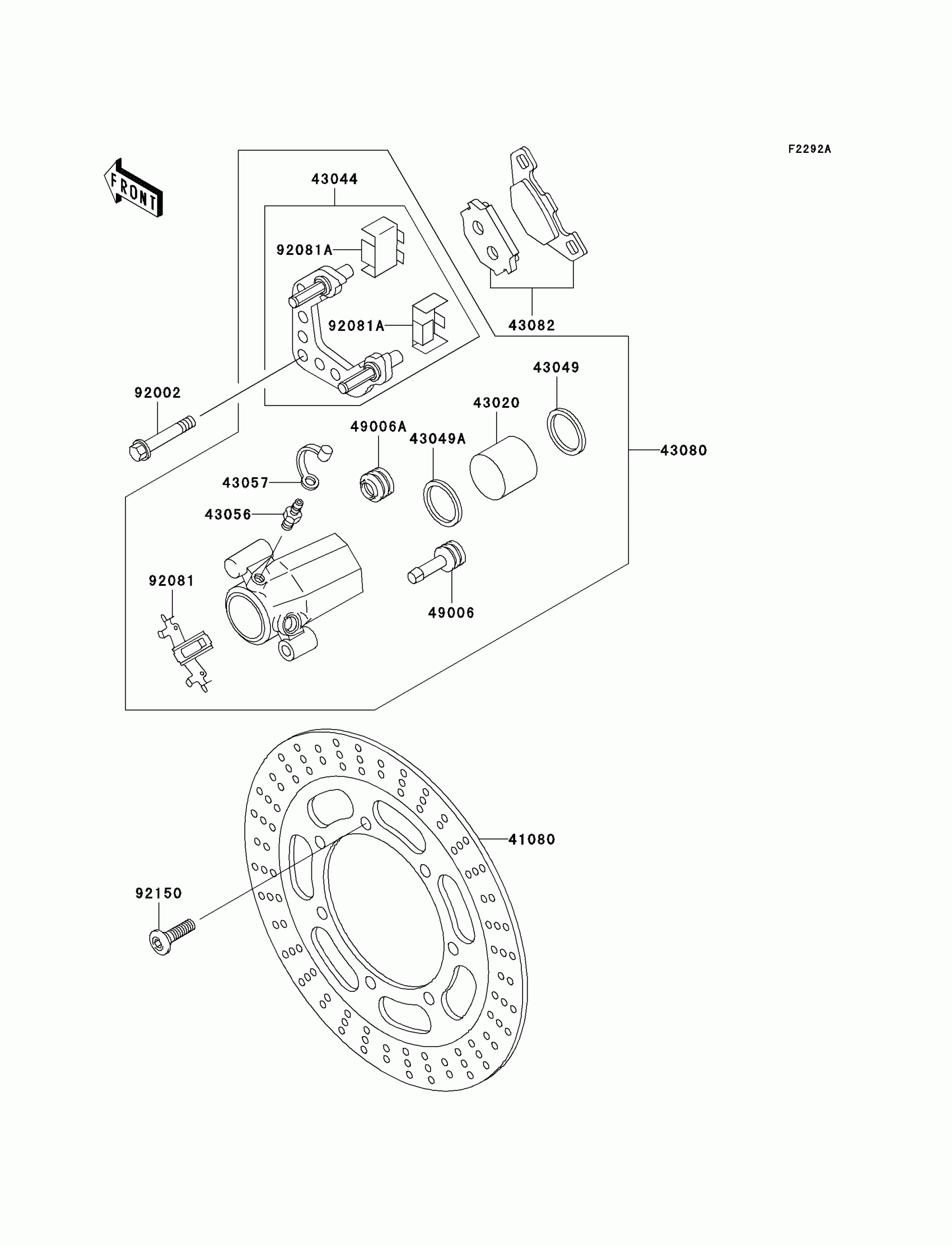

Kawasaki Vulcan 500 LTD Front Brake(EN500-C9) Diagram

Description

Price

41080

DISC,FR,SILVER

41080-1401-CM

$452.15

43020

PISTON-COMP-BRAKE

43020-1066

$105.36

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1102

$186.26

43049

PACKING,PISTON

43049-1028

$12.65

43049A

PACKING,PISTON SEAL

43049-1098

$13.90

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,FR,LH,SILVER

43080-5005-GN

$428.21

43082

PAD-ASSY-BRAKE

43082-1080

$61.15

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92002

BOLT,FLANGED,10X47

92002-1469

$10.62

92081

SPRING,PAD

92081-1525

$19.48

92081A

SPRING,PAD STOPPER

92081-1661

$11.80

92150

BOLT,SOCKET,8X30

92150-1771

$4.69
