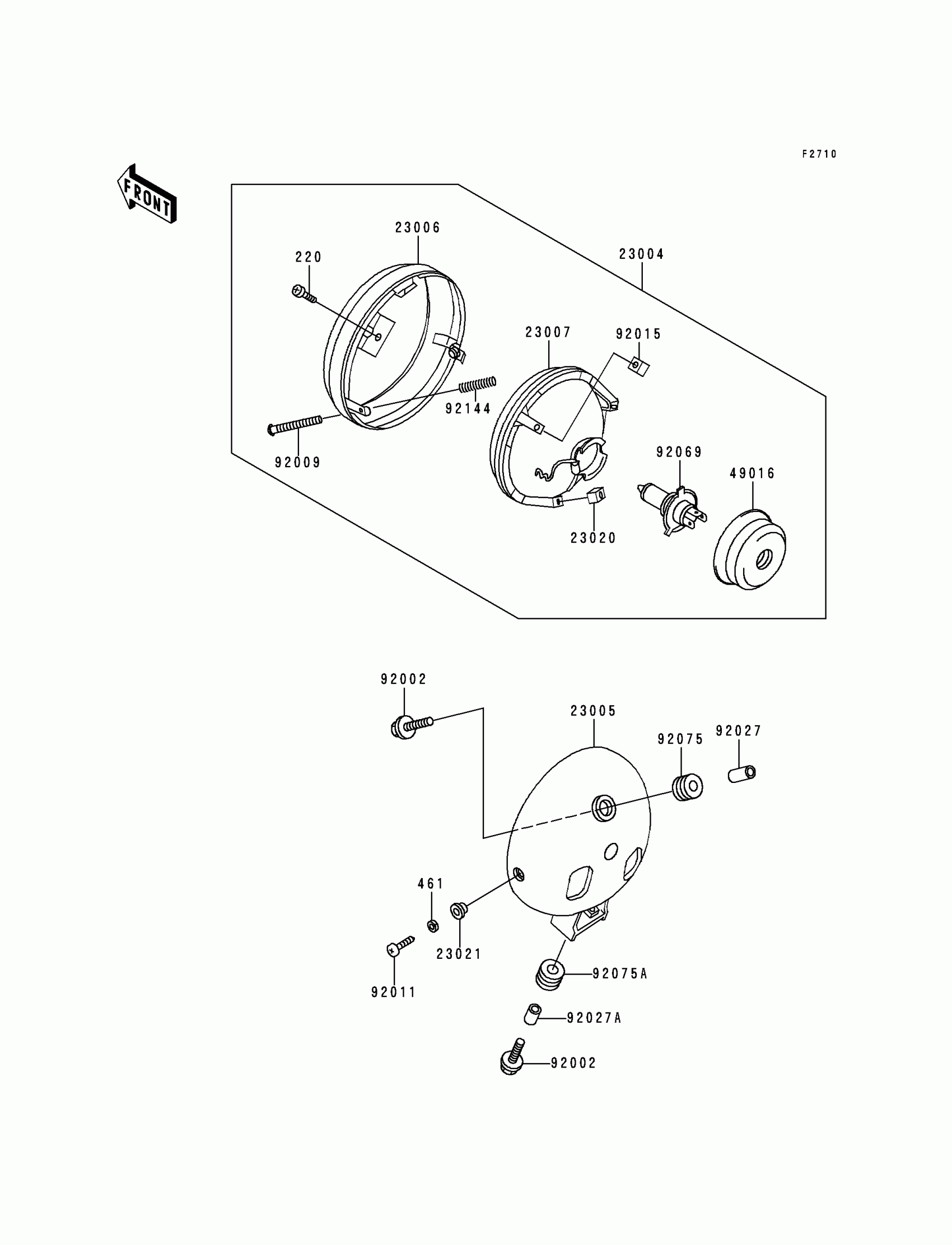

Kawasaki Vulcan 500 Headlight Diagram

Description

Price

220

SCREW-PAN-CROS,5X12

220D0512

$0.47

461

WASHER SPRING 5MM

461F0500

$0.69

23004

LAMP-HEAD

23004-1221

$414.80

23005

BODY-COMP-HEAD LAMP

23005-1105

$143.45

23006

RIM-LAMP

23006-1059

$98.89

23007

LENS-COMP,HEAD LAMP

23007-1169

$153.38

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

23021

WASHER

23021-010

$4.31

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1129

$10.03

92002

BOLT,6X25

92002-1135

$4.31

92009

SCREW,FOCUS ADJUST,4X65

92009-1472

$5.64

92011

SCREW,5MM

92011-024

$2.58

92015

NUT,5MM

92015-1157

$4.87

92027

COLLAR,6.8X10X14.5

92027-156

$5.00

92027A

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER

92075-1035

$5.78

92075A

DAMPER,10X24X12

92075-1690

$5.00

92144

SPRING,FOCUS ADJUST

92144-1149

$8.16
