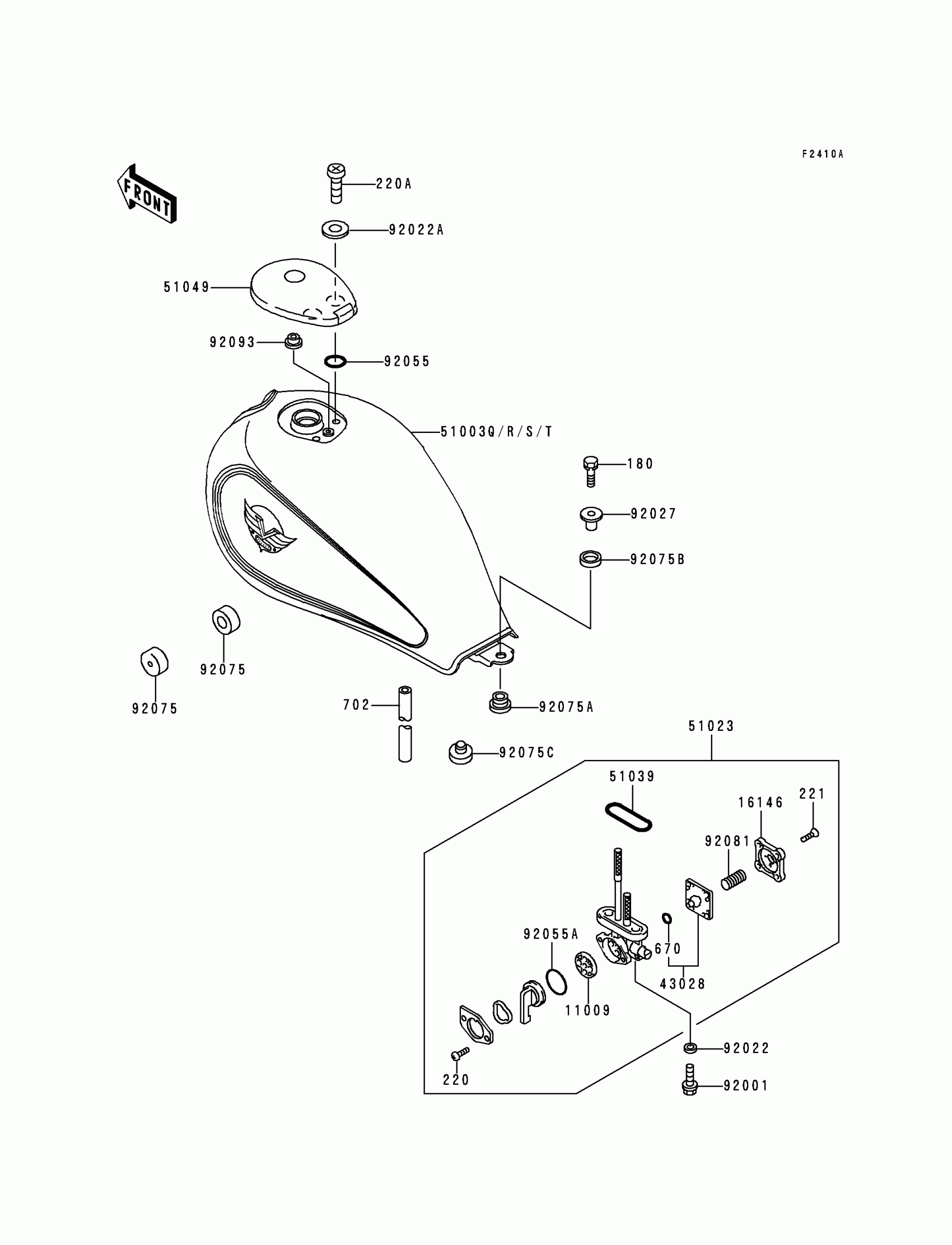

Kawasaki Vulcan 500 Fuel Tank(EN500-A4) Diagram

#

Description
Price

11009

GASKET,TAP VALVE

11009-1188

$5.74

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$25.31

43028

DIAPHRAGM

43028-1033

$22.90

180

BOLT-UPSET-WS,6X25

180D0625

$4.25

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

$3.41

670

O RING,4MM

670B1504

$4.11

51023

TAP-ASSY,FUEL

51023-1142

$132.20

51039

RING,TAP FLANGED

51039-003

$6.27

51049

CAP-TANK,FUEL

51049-1088

$110.44

92001

BOLT,6X20

92001-1091

$3.92

92022

WASHER-PLAIN

92022-183

$3.92

92022A

WASHER,5.1X10X1.0

92022-1977

$3.65

92027

COLLAR,L=13.1

92027-251

Unavailable

92055

RING-O

92055-1023

$3.92

92055A

RING-O,TAP LEVER

92055-1085

$5.05

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

RUBBER,FENDER COVER

92075-174

$4.78

92075B

DAMPER,FEMALE

92075-175

$4.39

92075C

DAMPER,9X24X14

92075-281

$6.22

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.89

51003Q

TANK-COMP-FUEL,RED/GRAY

51003-5468-RV

$723.43

51003R

TANK-COMP-FUEL,RED/GRAY

51003-5469-RV

Unavailable

51003S

TANK-COMP-FUEL,GREEN/SILVER

51003-5470-RW

$1,093.70

702

TUBE-RUBBER,5X8X620

702A05620

$29.14

51003T

TANK-COMP-FUEL,GREEN/SILVER

51003-5471-RW

$1,093.70

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77
