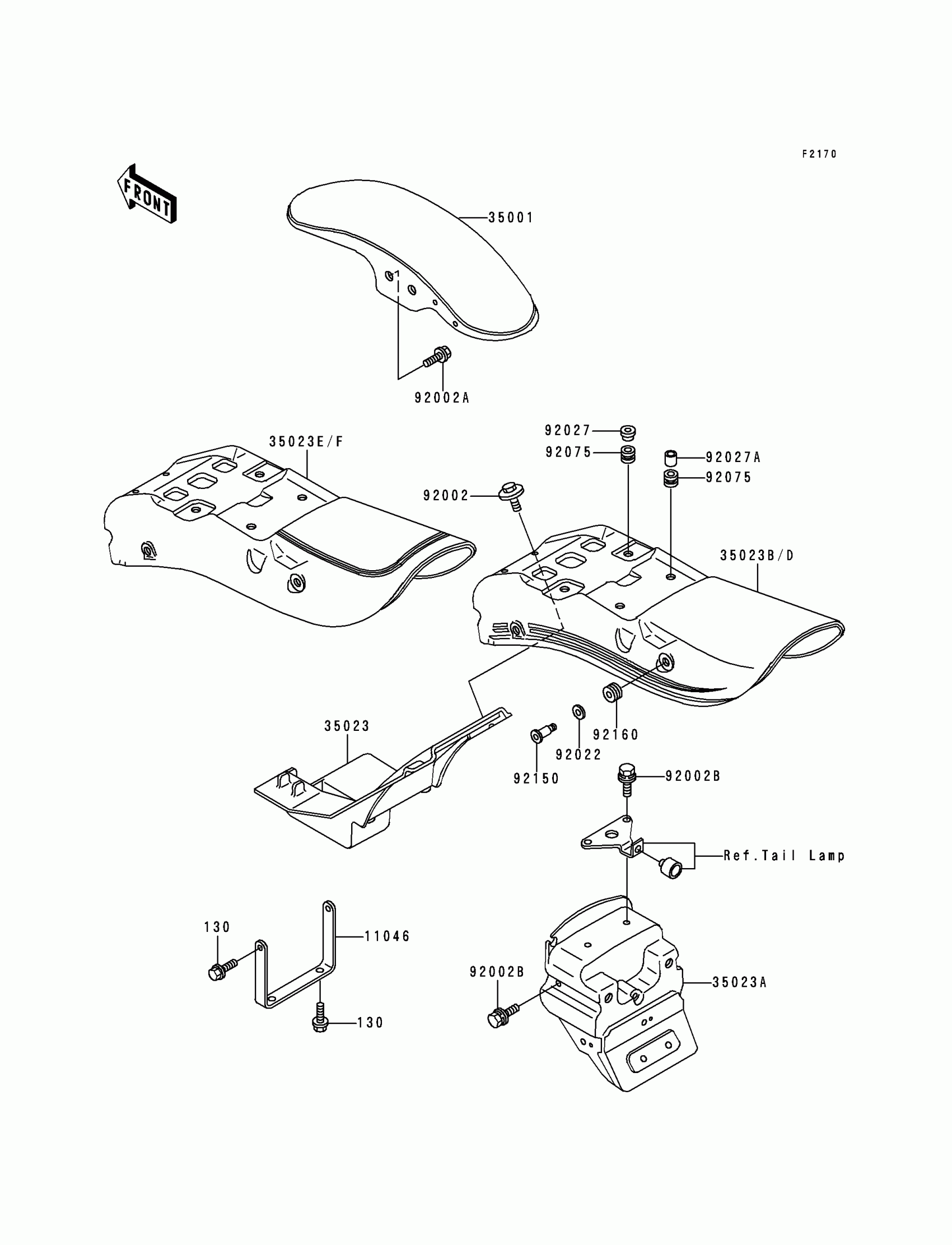

Kawasaki Vulcan 500 Fenders(EN500-A1/A2/A3/A4) Diagram

Description

Price

130

BOLT-FLANGED

130D0610

$0.48

11046

BRACKET,REAR FENDER,FR

11046-1913

Unavailable

35001

FENDER-ASSY-FRONT

35001-1140

$240.47

35023

FENDER-REAR,FR

35023-1259

Unavailable

35023A

FENDER-REAR,RR,LWR

35023-1261

$96.57

35023F

FENDER-REAR,RR,UPP,GRN/SIL

35023-5064-RW

$230.31

92002

BOLT,6X16

92002-1188

$4.10

92002A

BOLT,FLANGED,8X16

92002-1200

$4.92

92002B

BOLT,6X16

92002-1242

$4.73

92022

WASHER

92022-107

$2.70

92027

COLLAR,L=9

92027-1188

$5.52

92027A

COLLAR,6.8X10X8.5

92027-129

$5.00

92075

DAMPER

92075-1634

$4.69

92150

BOLT

92150-1413

Unavailable

92160

DAMPER

92160-1012

$5.52

35023E

FENDER-REAR,RR,UPP,RED/GRAY

35023-5063-RV

$230.31
