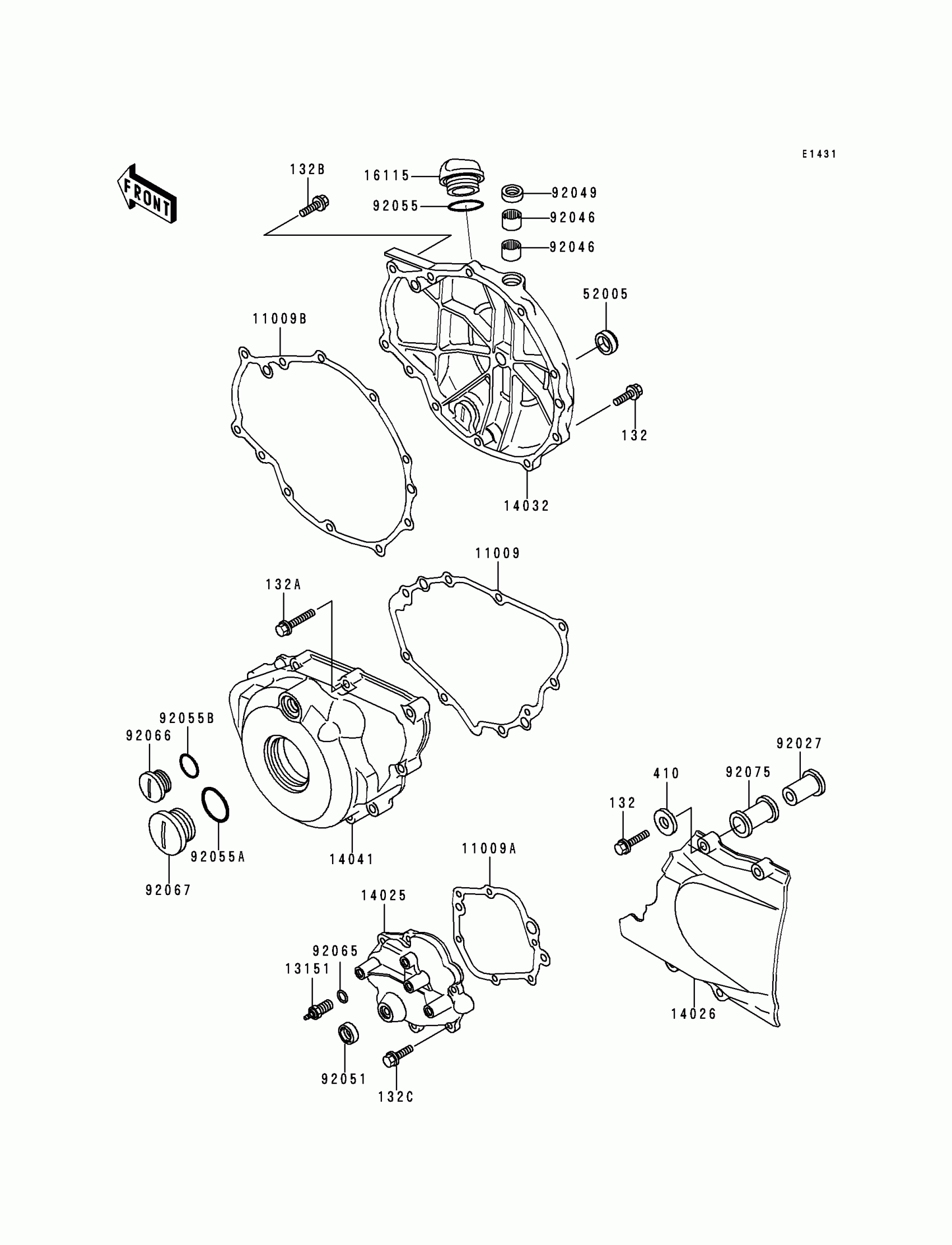

Kawasaki Vulcan 500 Engine Covers Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X25

132E0625

$1.13

132A

BOLT-FLANGED-SMALL,6X30

132E0630

$6.22

132B

BOLT-FLANGED-SMALL,6X35

132E0635

$5.24

132C

BOLT-FLANGED-SMALL,6X20

132J0620

$3.64

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

11009

GASKET,GENERATOR COVER

11009-1834

Unavailable

11009A

GASKET,CHANGE MECHANISM COVER

11009-1835

Unavailable

11009B

GASKET,CLUTCH COVER

11009-1836

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

14025

COVER,CHANGE MECHANISM

14025-1986

Unavailable

14026

COVER-CHAIN

14026-1155

Unavailable

14032

COVER-CLUTCH

14032-1284

$256.07

14041

COVER-COMP,GENERATOR

14041-1096

Unavailable

16115

CAP-OIL FILLER

16115-1062

$19.96

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92027

COLLAR

92027-1858

$6.16

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,TB12205.5

92049-1271

$9.28

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,27.7X2.4

92055-091

$6.22

92055B

RING-O,20X2

92055-1146

$8.58

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG,COVER,LH

92066-1218

$14.76

92067

PLUG,30X8

92067-024

$11.29

92075

DAMPER

92075-1681

$6.16
