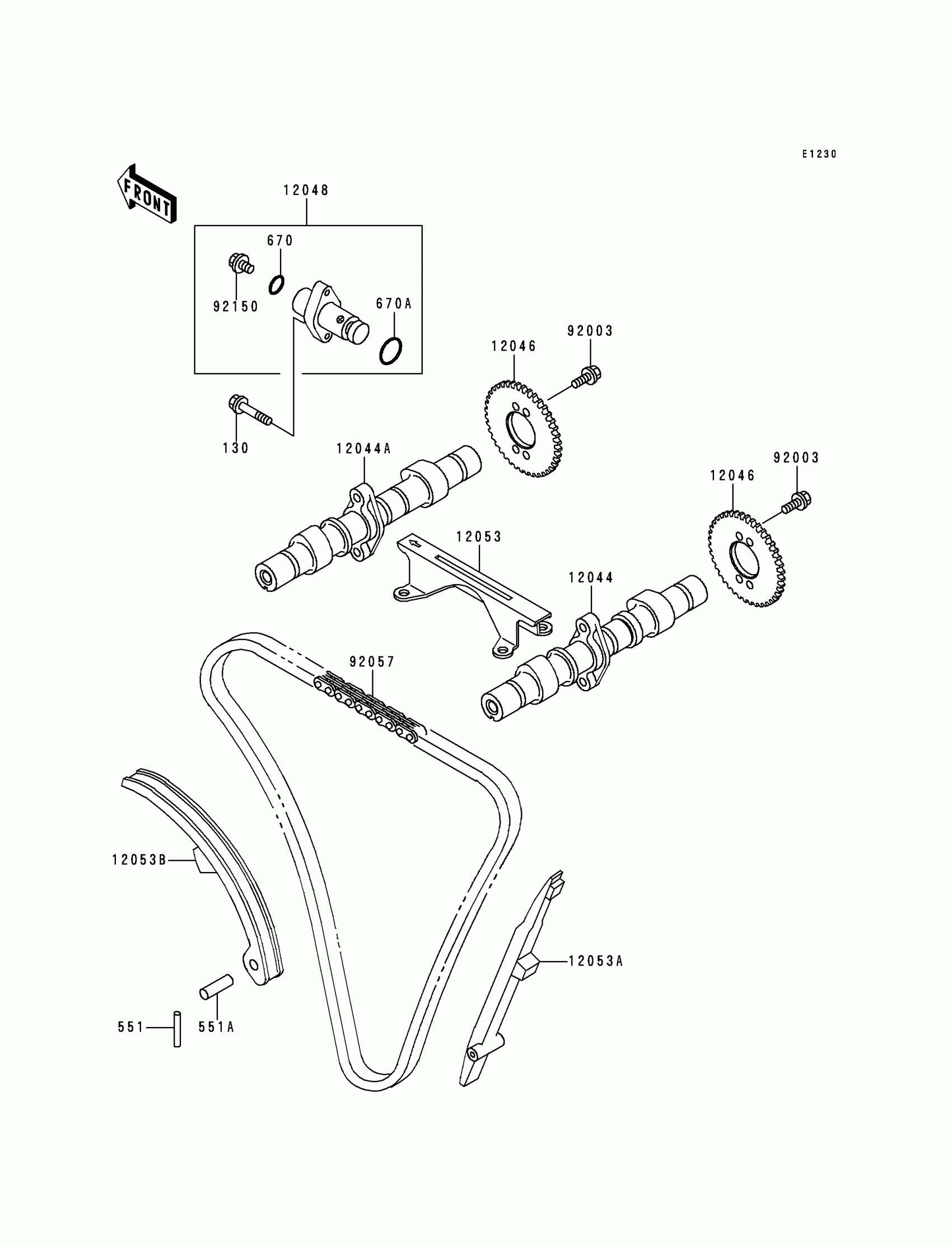

Kawasaki Vulcan 500 Camshafts/Tensioner Diagram

Description

Price

130

BOLT-FLANGED,6X25

130Y0625

$4.11

551

PIN-DOWEL

551A0432

$4.69

551A

PIN-DOWEL,8X40

551A0840

$5.24

670

O RING,10MM

670D2010

$1.94

670A

O RING,21MM

670D2021

$6.85

12044

CAMSHAFT-VALVE,INTAKE

12044-1215

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1216

Unavailable

12046

SPROCKET,CAMSHAFT,46T

12046-1075

$76.41

12048

TENSIONER-ASSY

12048-1103

Unavailable

12053

GUIDE-CHAIN,UPP

12053-1145

$51.90

12053A

GUIDE-CHAIN,RR

12053-1150

$83.10

12053B

GUIDE-CHAIN,FR

12053-1151

$68.16

92003

BOLT,FLANGED,6X11

92003-208

$4.31

92057

CHAIN,CAM,79RH2015-148L

92057-1188

$125.91

92150

BOLT,TENSIONER

92150-1381

$8.19
