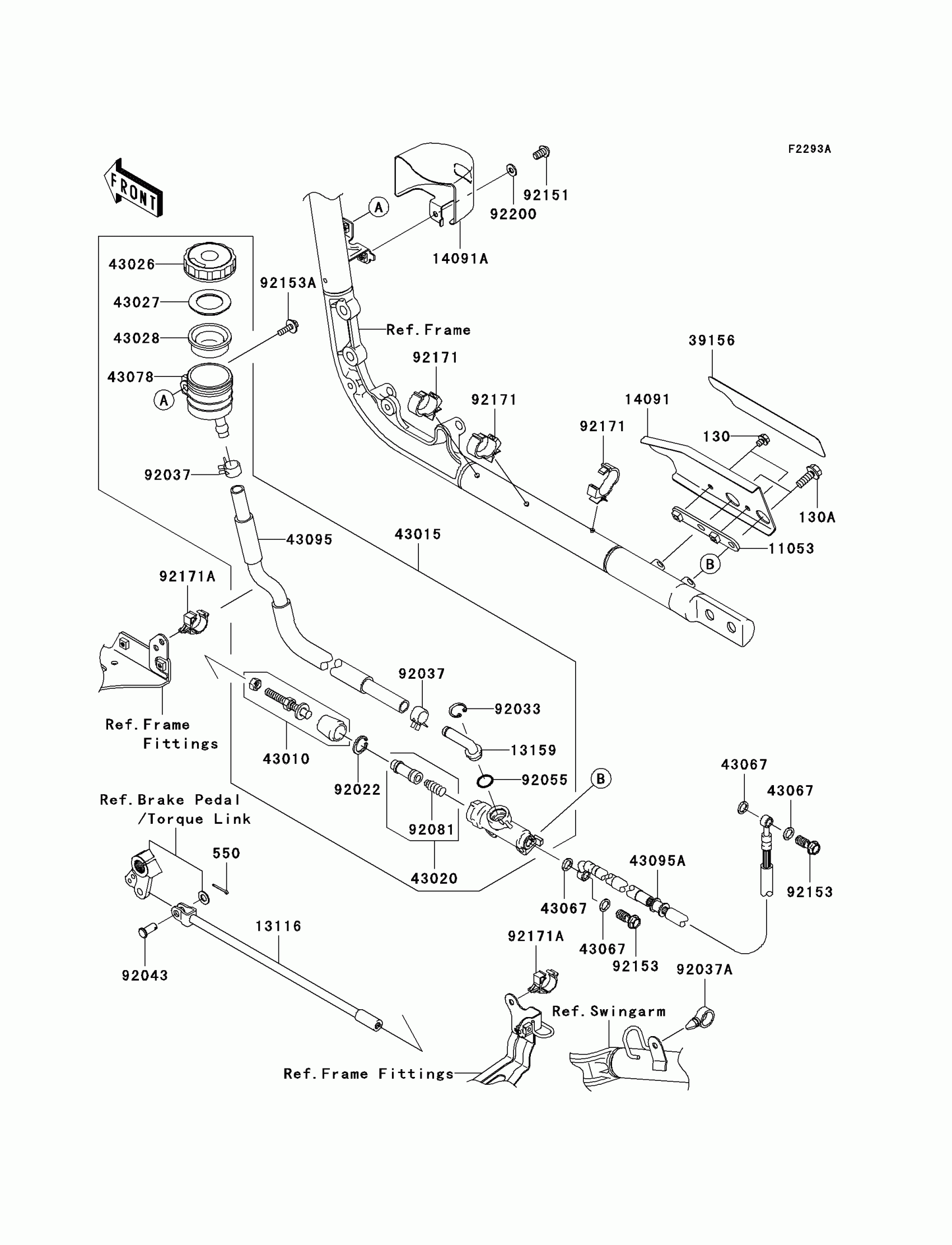

Kawasaki Vulcan 2000 Rear Master Cylinder(A2) Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130L0610

$2.33

130A

BOLT-FLANGED,8X30

130L0830

$4.15

550

PIN COTTER 2.0X15

550D2015

$1.04

11053

BRACKET,HEAT GUARD COVER

11053-0948

$9.47

13116

ROD-PUSH

13116-0011

$72.70

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

14091

COVER,REAR MASTER HEAT GUARD

14091-0273

$37.53

14091A

COVER,RESERVOIR TANK

14091-0352

$94.41

39156

PAD,RR MASTER CYLINDER

39156-0057

$8.82

43010

ROD-ASSY-BRAKE

43010-0004

$78.69

43015

CYLINDER-ASSY-MASTER,RR

43015-0042

$296.66

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078

RESERVOIR,RR MASTER CYLINDER

43078-1178

$26.19

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0039

$66.19

43095A

HOSE-BRAKE,RR

43095-0169

$145.82

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92037A

CLAMP,HOSE

92037-1827

$7.45

92043

PIN,8X16

92043-1013

$9.91

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92151

BOLT,SOCKET,6X12

92151-1940

$3.74

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,FLANGED,6X20

92153-0673

$3.26

92171

CLAMP,20MM DIA.

92171-0081

$4.18

92171A

CLAMP,BRAKE HOSE

92171-0316

$3.88

92200

WASHER,6.5X14.5X1.5

92200-3775

$1.74
