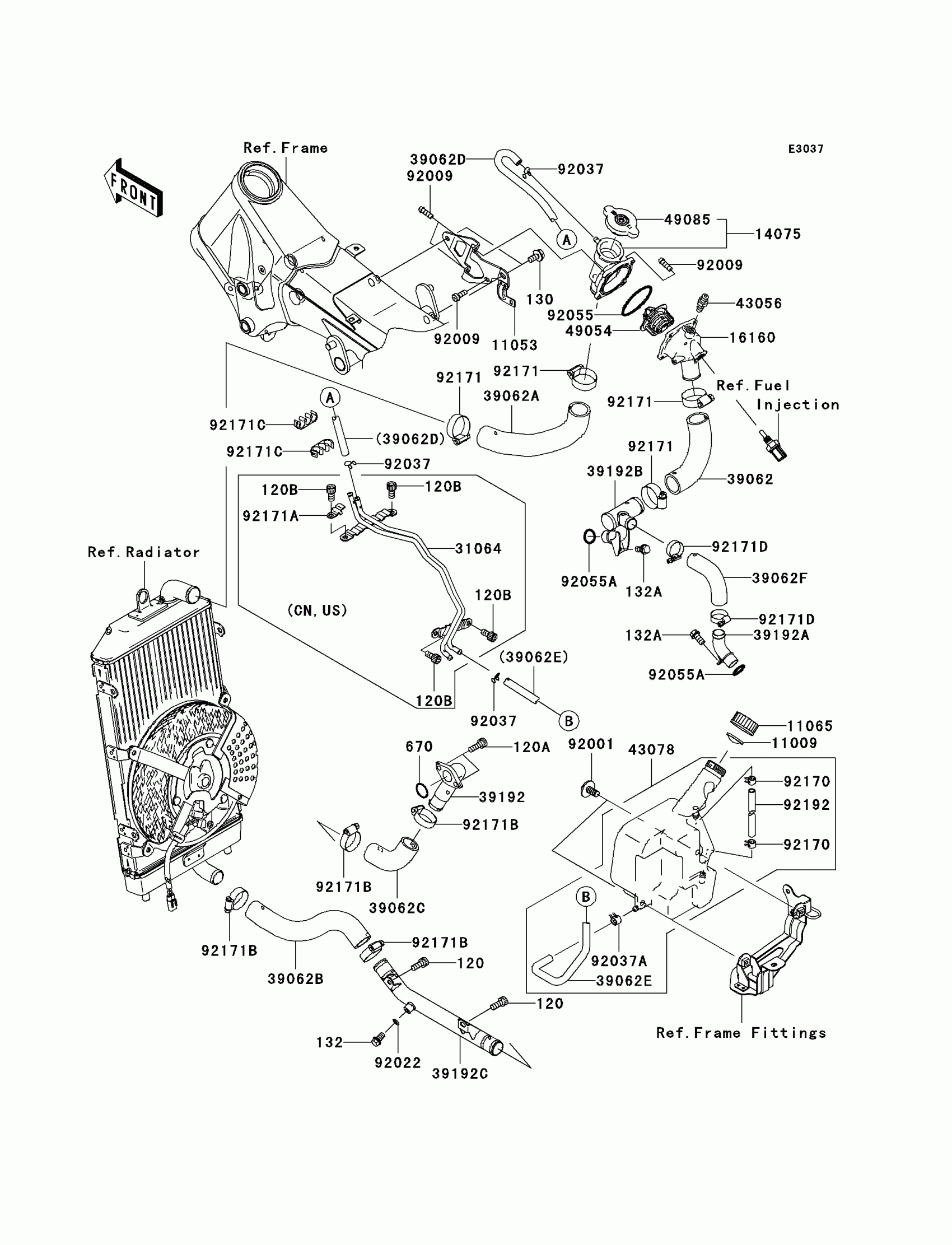

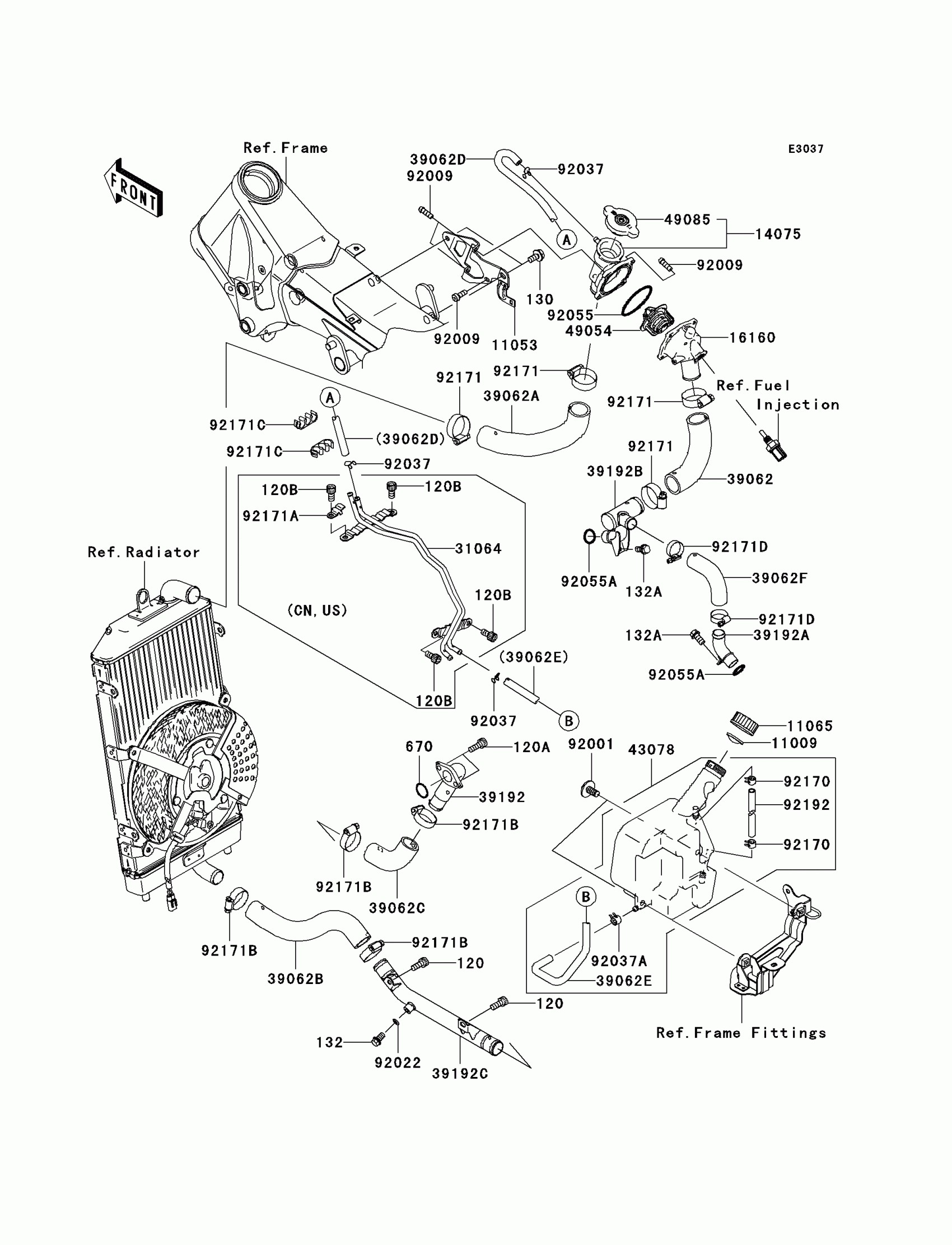

Kawasaki Vulcan 2000 Water Pipe Diagram

#

Description
Price

120

BOLT-SOCKET,6X14

120R0614

$3.75

120A

BOLT-SOCKET,6X16

120R0616

$3.65

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11053

BRACKET,THERMOSTAT

11053-0733

$22.29

11065

CAP

11065-0063

$4.19

14075

CAP-ASSY

14075-0001

$142.53

16160

BODY,THERMOSTAT

16160-0003

$70.22

39062

HOSE-COOLING,THERMO-PIPE

39062-0004

$23.16

39062A

HOSE-COOLING,THERMO-RADIATOR

39062-0005

$23.16

39062B

HOSE-COOLING,RADIATOR-PIPE

39062-0008

$23.16

39062C

HOSE-COOLING,PIPE-WATER PUMP

39062-0009

$10.97

39062D

HOSE-COOLING,L=797

39062-0047

$14.69

39062E

HOSE-COOLING,RESERVOIR-PIPE

39062-0062

$11.71

39062F

HOSE-COOLING,RR HEAD-PIPE

39062-0064

$11.71

39192

PIPE-WATER

39192-0001

$46.24

39192A

PIPE-WATER,RR HEAD

39192-0007

$31.98

39192B

PIPE-WATER,FR HEAD

39192-0008

$65.26

39192C

PIPE-WATER,RADIATOR-W/P

39192-0009

$65.26

43056

BREATHER

43056-003

$24.57

43078

RESERVOIR

43078-0020

$82.10

49054

THERMOSTAT

49054-1067

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

92001

BOLT,6X16

92001-1950

$4.31

92009

SCREW,5X14

92009-1341

$4.18

92022

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,TUBE

92037-1505

$4.76

92055

RING-O,53.5X2.6

92055-112

$6.63

92055A

RING-O,16.8X2.4

92055-1258

$4.92

92170

CLAMP

92170-1493

$5.00

92171

CLAMP

92171-0179

$8.20

92171B

CLAMP

92171-0261

$16.83

92171C

CLAMP

92171-0334

$5.00

92171D

CLAMP

92171-0338

$8.36

92192

TUBE,7X10X120

92192-0010

$5.18

130

BOLT-FLANGED,6X12

130L0612

$2.19

132

BOLT-FLANGED-SMALL,6X10

132L0610

$2.33

132A

BOLT-FLANGED-SMALL,6X12

132L0612

$1.92

670

O RING,20MM

670B2020

$1.22

120B

BOLT-SOCKET,6X12

120W0612

$2.33

31064

PIPE-COMP

31064-0011

$140.04

92171A

CLAMP

92171-0209

$8.50
