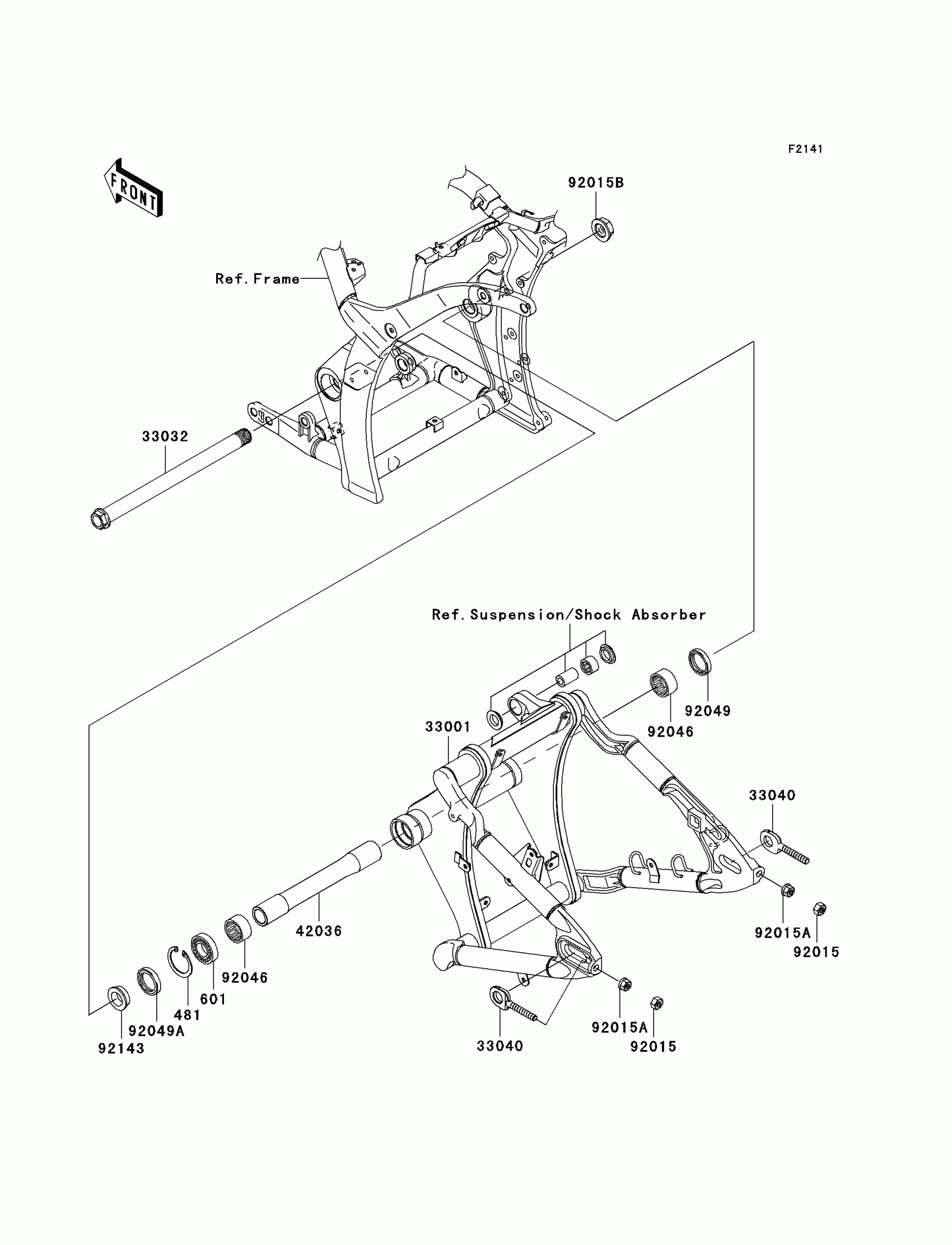

Kawasaki Vulcan 2000 Swingarm Diagram

Description

Price

481

CIRCLIP-TYPE-C,47MM

481J4700

$4.22

601

BEARING-BALL,#6005UU

601B6005UU

$27.65

33001

ARM-COMP-SWING,P.SILVER

33001-0078-458

$987.41

33032

SHAFT-SWING ARM

33032-0004

$94.34

33040

ADJUSTER-CHAIN

33040-0005

$41.01

42036

SLEEVE,SWING ARM,L=266.5

42036-0007

$115.75

92015

NUT,LOCK,10MM

92015-1494

$6.22

92015A

NUT,FLANGED,10MM

92015-1727

$4.31

92015B

NUT,FLANGED,25MM

92015-1845

$25.20

92046

BEARING-NEEDLE,BM3520

92046-1205

$30.34

92049

SEAL-OIL,KC35X45X6

92049-0017

$16.30

92049A

SEAL-OIL,MHA 35X47X5

92049-1381

$13.08

92143

COLLAR,SWING ARM,L=12.5

92143-1481

$30.84
