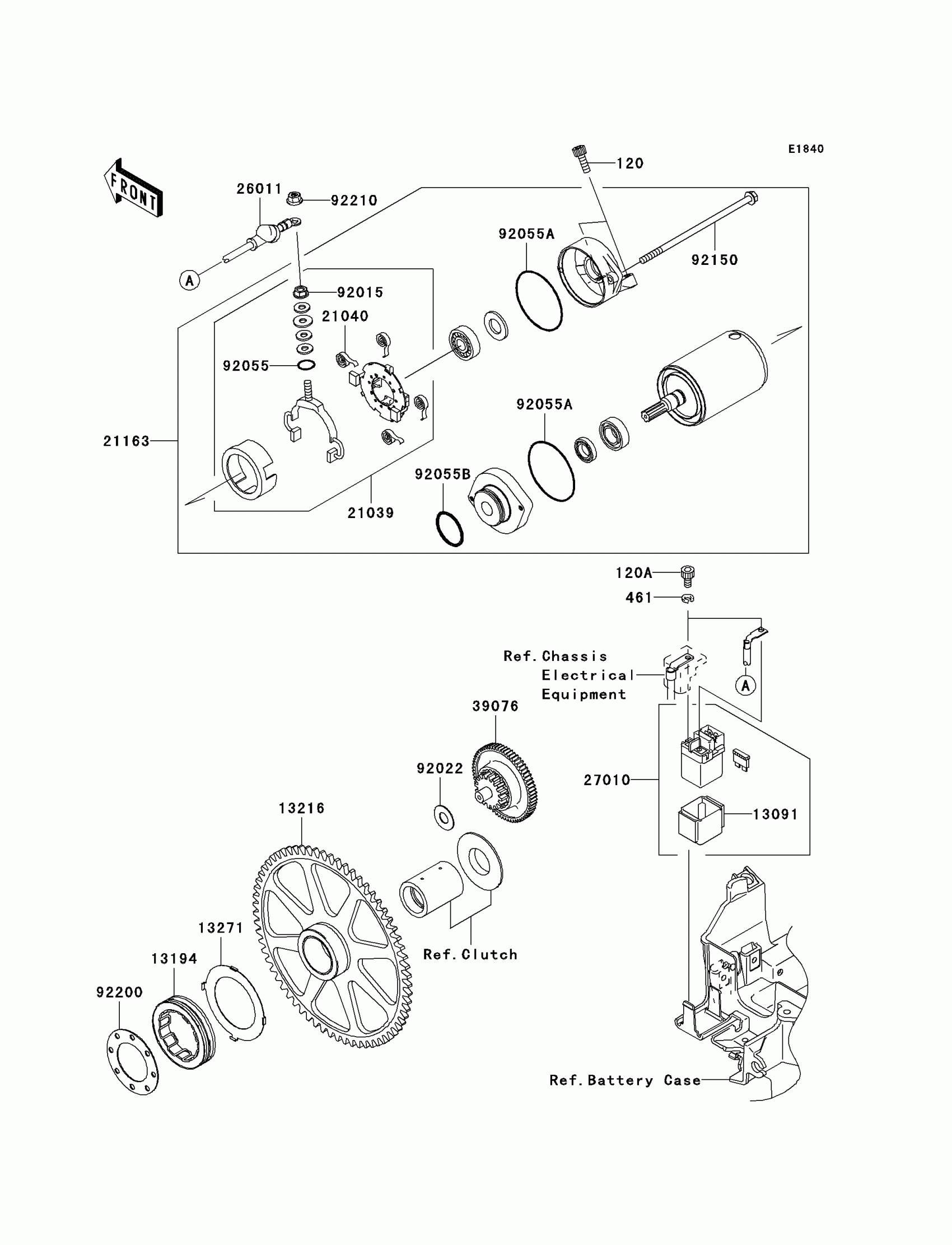

Kawasaki Vulcan 2000 Starter Motor Diagram

Description

Price

120

BOLT-SOCKET,6X22

120R0622

$2.73

120A

BOLT-SOCKET,5X10

120S0510

$1.60

461

WASHER-SPRING,5MM,BLACK

461K0500

$1.49

13091

HOLDER,MAGNETIC SWITCH

13091-1884

$12.45

13194

CLUTCH-ONEWAY

13194-0001

$158.87

13216

GEAR-COMP

13216-0010

$192.58

13271

PLATE

13271-0037

$12.27

21039

BRUSH,CARBON

21039-1060

$84.32

21040

SPRING-BRUSH

21040-1055

$8.42

21163

STARTER-ELECTRIC

21163-0001

$945.21

26011

WIRE-LEAD,STARTER MOTOR

26011-0044

$64.47

27010

SWITCH,MAGNETIC

27010-1327

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-0001

$275.40

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,12X27.5X1.0

92022-1852

$5.11

92055

RING-O,4.5X2.0

92055-1370

$4.69

92055A

RING-O,STARTER MOTOR

92055-1381

$9.91

92055B

RING-O,37MM

92055-1393

$11.91

92150

BOLT,STARTER MOTOR

92150-1913

$9.51

92200

WASHER,44X73.5X1.2

92200-0019

$5.79

92210

NUT,6MM

92210-0188

$2.15
