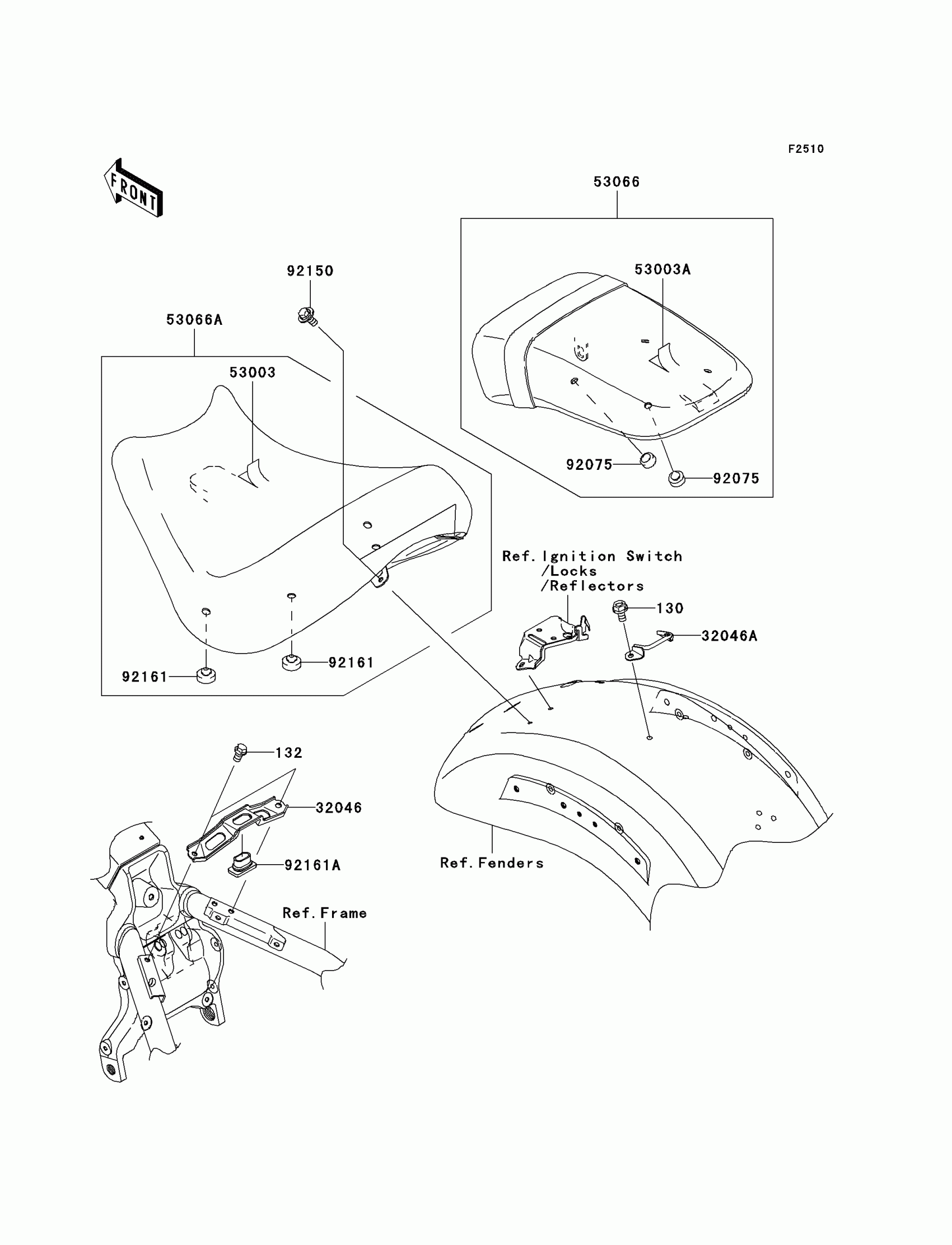

Kawasaki Vulcan 2000 Seat Diagram

Description

Price

130

BOLT-FLANGED,6X12

130L0612

$2.19

132

BOLT-FLANGED-SMALL,6X10

132L0610

$2.33

32046

BRACKET-SEAT,FR

32046-0034

$15.55

32046A

BRACKET-SEAT,RR

32046-0039

$15.55

53003

LEATHER,FRONT SEAT,BLACK

53003-0003-MA

$280.48

53003A

LEATHER,REAR SEAT,BLACK

53003-0005-MA

$228.70

53066

SEAT-ASSY,RR,W/BAND,BLACK

53066-0041-MA

$545.11

53066A

SEAT-ASSY,FR,BLACK

53066-0074-MA

$748.05

92075

DAMPER,10X20X8

92075-1927

$4.39

92150

BOLT,FLANGED,6X14

92150-1689

$3.94

92161

DAMPER,SEAT,10X25X8

92161-0095

$7.95

92161A

DAMPER,FRONT SEAT

92161-0294

$7.89
