Rear Master Cylinder

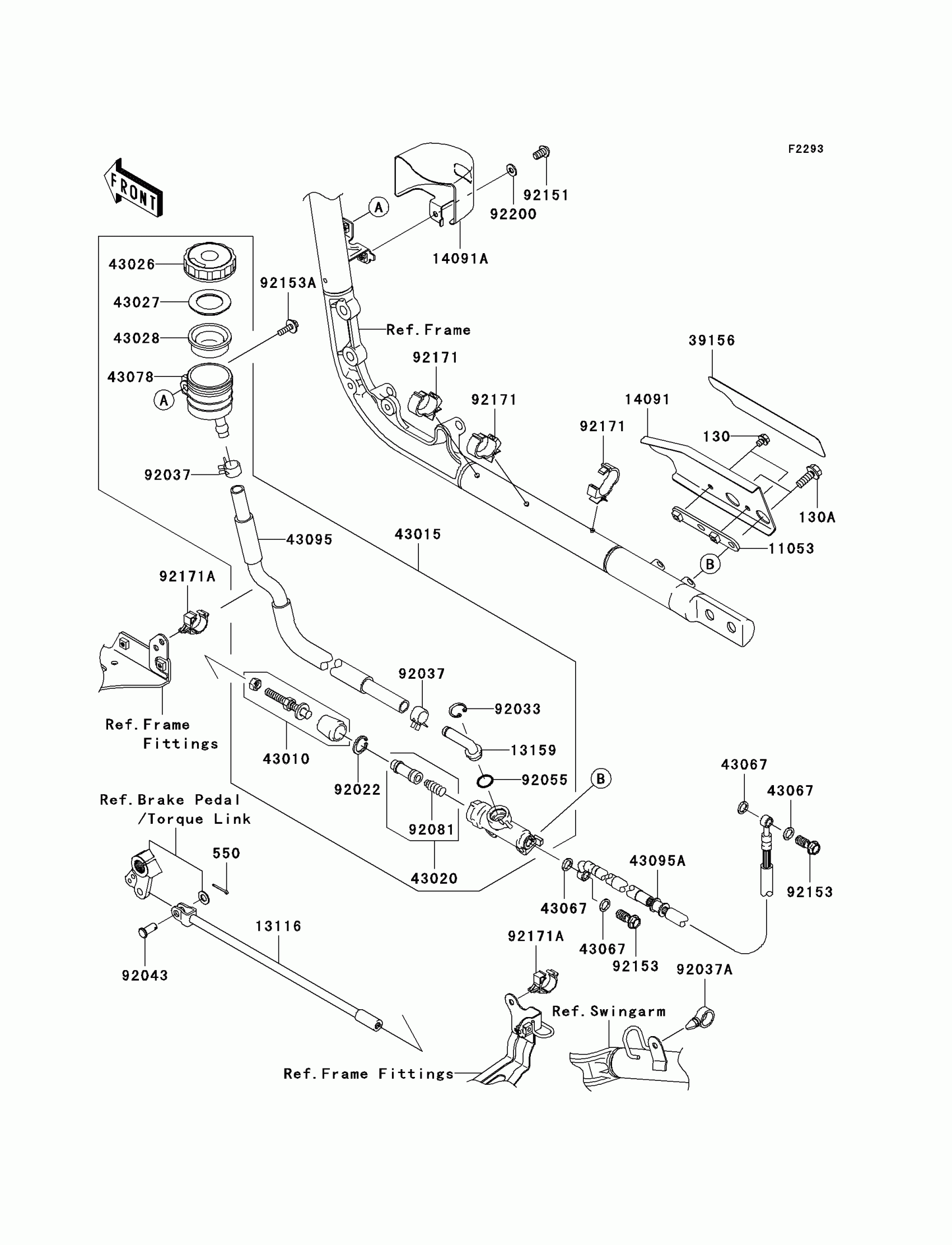

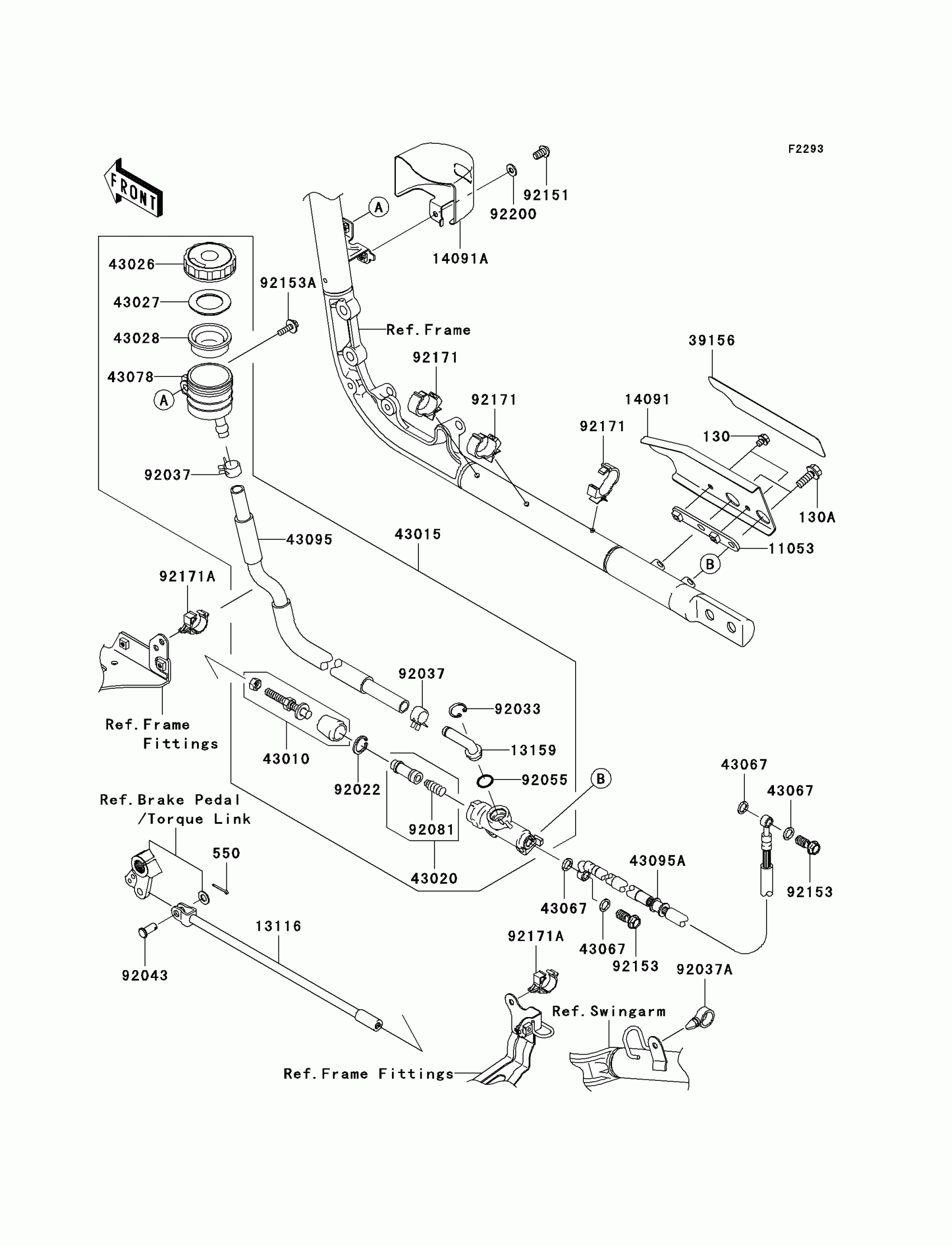

Kawasaki Vulcan 2000 Rear Master Cylinder Diagram
#
Description
Price
130
BOLT-FLANGED,6X10
130L0610
$2.33
130A
BOLT-FLANGED,8X30
130L0830
$4.15
550
PIN COTTER 2.0X15
550D2015
$1.04
11053
BRACKET,HEAT GUARD COVER
11053-0948
$9.47
13116
ROD-PUSH
13116-0011
$72.70
13159
CONNECTOR,RR MASTER CYLINDER
13159-1052
$14.10
14091
COVER,REAR MASTER HEAT GUARD
14091-0273
$37.53
14091A
COVER,RESERVOIR TANK
14091-0352
$94.41
39156
PAD,RR MASTER CYLINDER
39156-0057
$8.82
43010
ROD-ASSY-BRAKE
43010-0004
$78.69
43015
CYLINDER-ASSY-MASTER,RR
43015-0042
$296.66
43020
PISTON-COMP-BRAKE
43020-1057
$65.22
43026
CAP-BRAKE
43026-1051
$34.20
43027
PLATE-DIAPHRAGM
43027-1051
$5.32
43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
$19.09
43067
WASHER,10.5X15X1.5
43067-001
$2.15
43078
RESERVOIR,RR MASTER CYLINDER
43078-1178
$26.19
43095
HOSE-BRAKE,RR MASTER CYLINDER
43095-0039
$66.19
43095A
HOSE-BRAKE,RR
43095-0169
$145.82
92022
WASHER,CIRCRIP
92022-1601
Unavailable
92033
RING-SNAP,20.5MM
92033-1186
$4.96
92037
CLAMP,BRAKE HOSE
92037-1547
$12.35
92037A
CLAMP,HOSE
92037-1827
$7.45
92043
PIN,8X16
92043-1013
$9.91
92055
RING-O,MASTER CYLINDER
92055-1251
Unavailable
92081
SPRING,MASTER CYLINDER
92081-1737
$12.23
92151
BOLT,SOCKET,6X12
92151-1940
$3.74
92153
BOLT,OIL,L=23
92153-0627
$5.48
92153A
BOLT,FLANGED,6X20
92153-0673
$3.26
92171
CLAMP,20MM DIA.
92171-0081
$4.18
92171A
CLAMP,BRAKE HOSE
92171-0316
$3.88
92200
WASHER,6.5X14.5X1.5
92200-3775
$1.74
