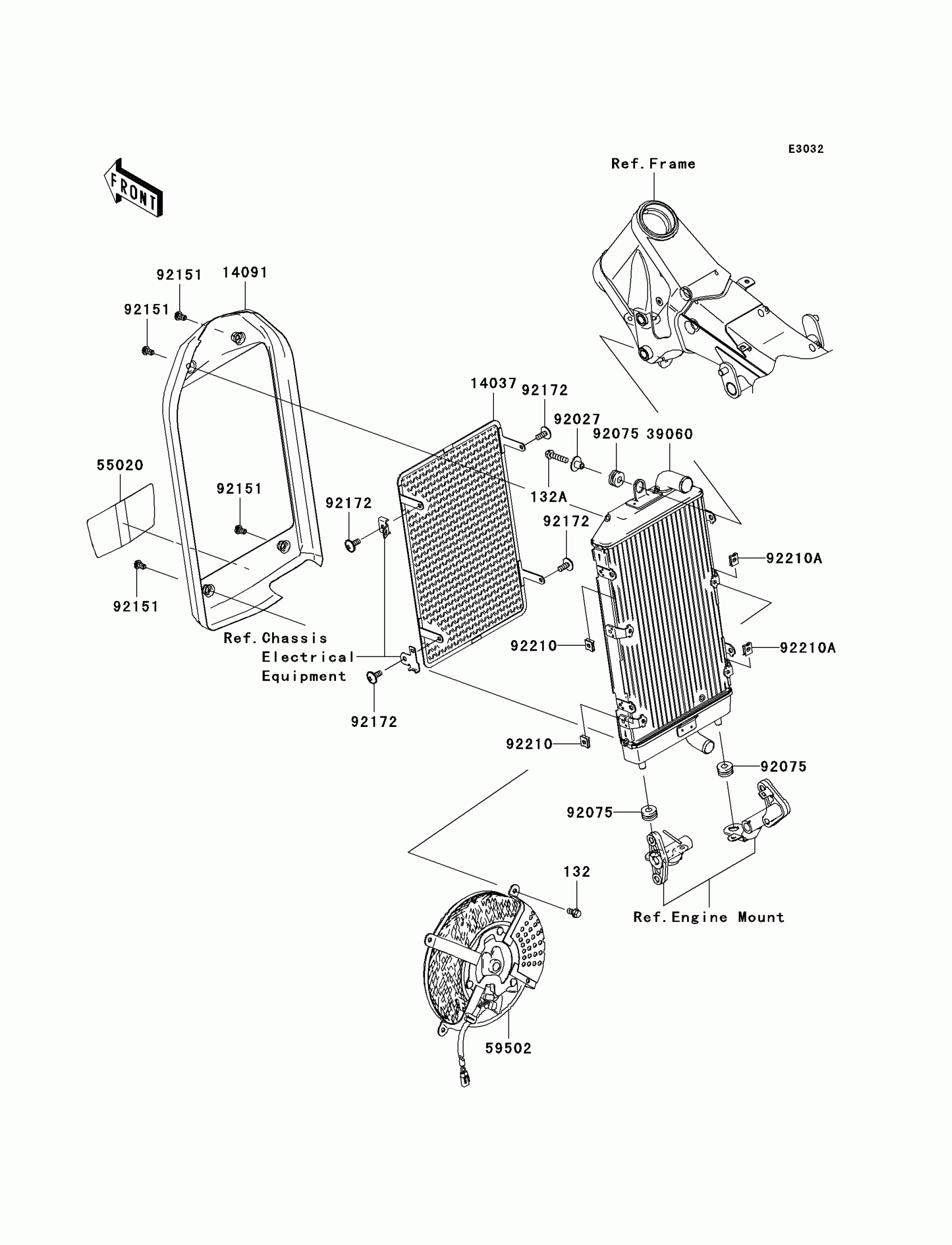

Kawasaki Vulcan 2000 Radiator Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X10

132J0610

$2.33

132A

BOLT-FLANGED-SMALL,6X20

132L0620

$3.64

14037

SCREEN

14037-0005

$81.11

14091

COVER

14091-0539

$165.11

39060

RADIATOR

39060-0018

$822.88

55020

GUARD

55020-0215

$33.43

59502

FAN-ASSY

59502-0005

$901.62

92027

COLLAR,L=13.1,BLACK

92027-1450

$6.22

92075

DAMPER,10X24X12

92075-1690

$5.00

92151

BOLT,6X10

92151-1809

$2.86

92172

SCREW,6X14

92172-0004

$2.80

92210

NUT

92210-1125

$4.76

92210A

NUT

92210-1323

$4.18
