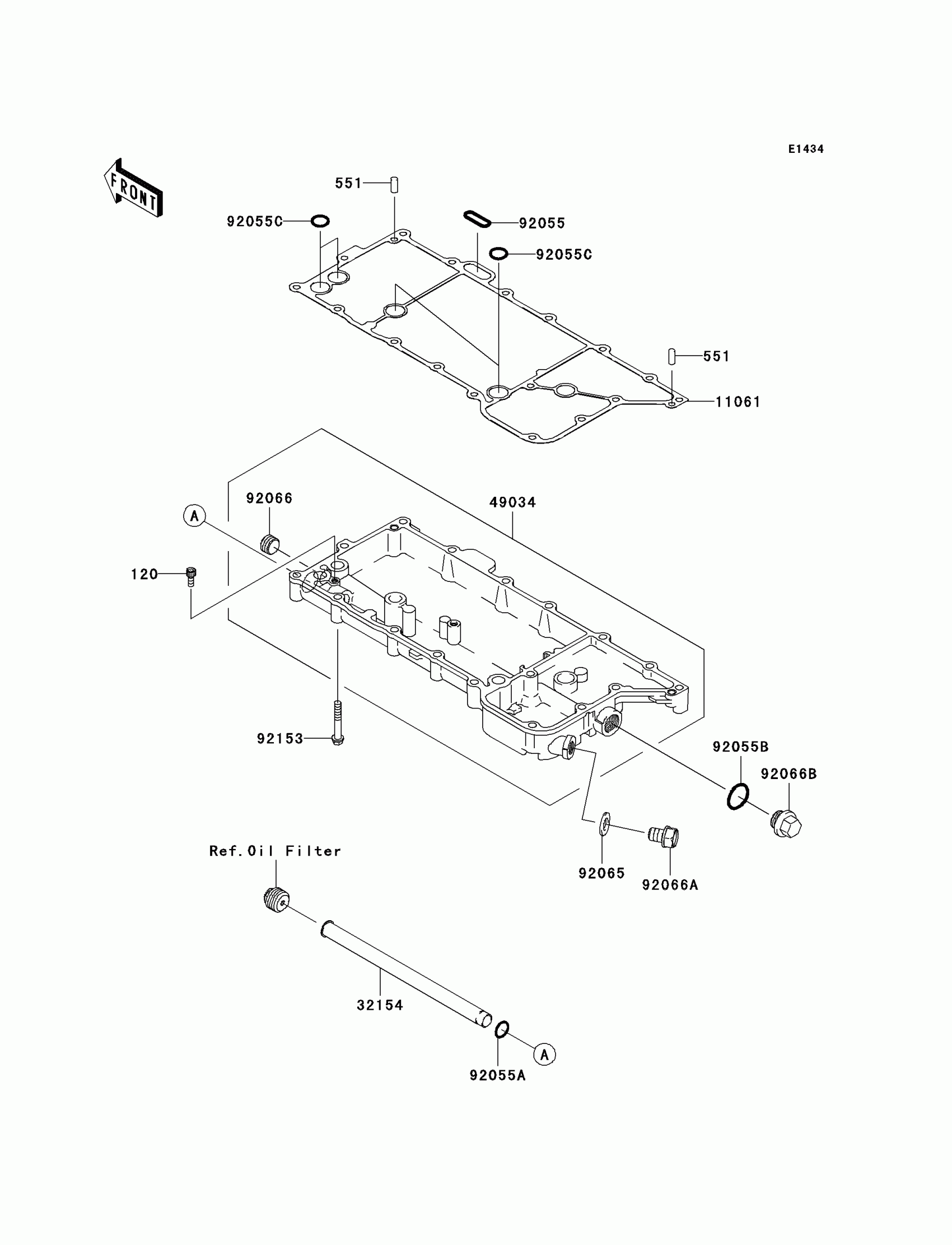

Kawasaki Vulcan 2000 Oil Pan Diagram

Description

Price

120

BOLT-SOCKET,5X12

120S0512

$1.71

551

PIN-DOWEL,6X14

551A0614

$3.92

11061

GASKET,OIL PAN

11061-0021

$60.34

32154

PIPE

32154-0065

$12.41

49034

PAN-OIL

49034-0012

$249.19

92055

RING-O

92055-0009

$4.43

92055A

RING-O,ID=13.8

92055-1141

$3.92

92055B

RING-O,20X2

92055-1146

$8.58

92055C

RING-O,13.2X2.4

92055-1373

$5.24

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG

92066-0042

$7.95

92066A

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92066B

PLUG,MAIN GALLERY,18X9

92066-1394

$10.97

92153

BOLT,6X40

92153-0710

$3.72
