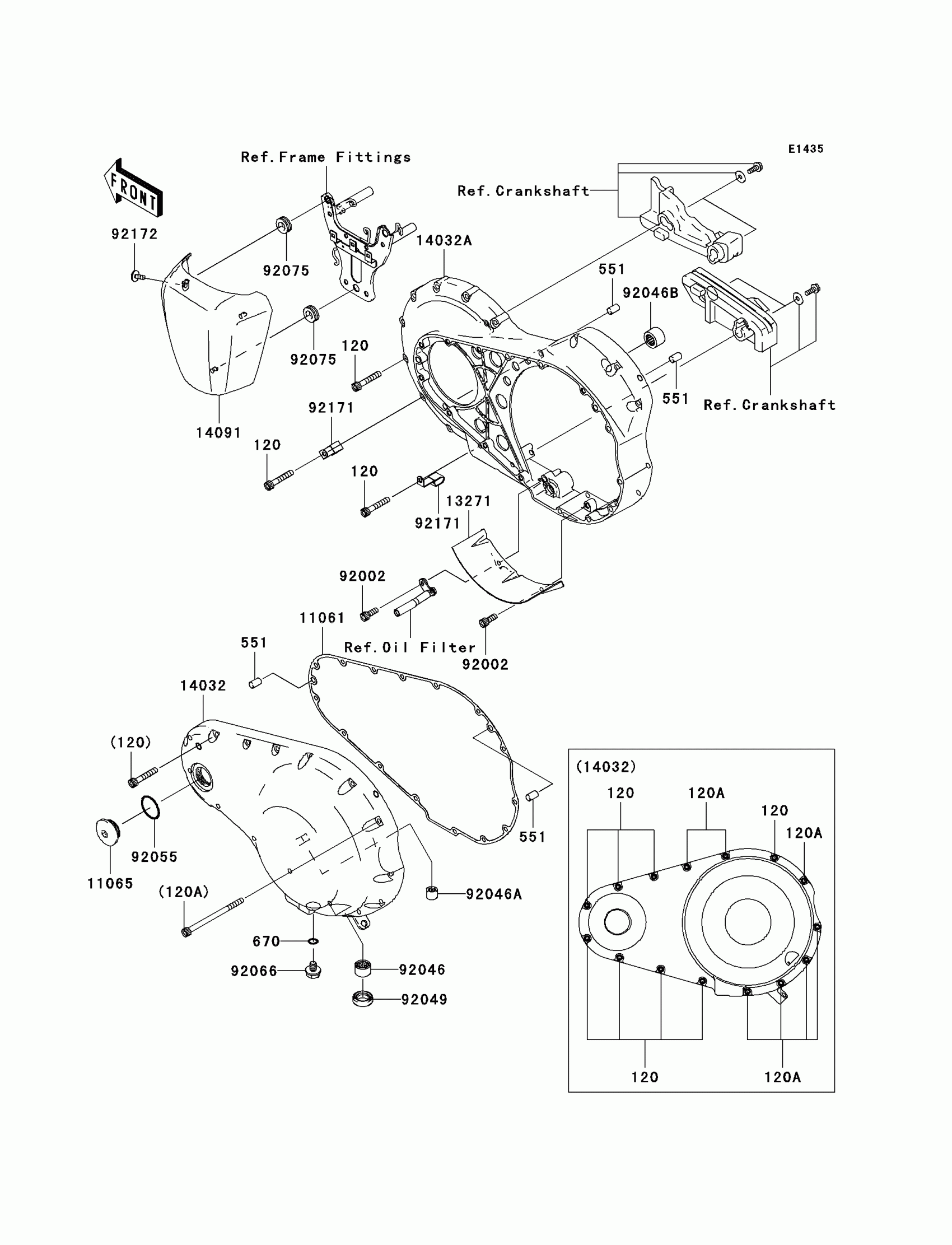

Kawasaki Vulcan 2000 Left Engine Cover(s) Diagram

Description

Price

120

BOLT-SOCKET,6X35

120R0635

$5.00

120A

BOLT-SOCKET,6X90

120R0690

$7.27

551

PIN-DOWEL,8X14

551A0814

$1.19

670

O RING,8MM

670D1508

$4.31

11061

GASKET,CLUTCH,OUTSIDE

11061-0016

$65.26

11065

CAP

11065-0025

$46.24

13271

PLATE

13271-0083

$13.73

14032

COVER-CLUTCH,INNER

14032-0061

$391.89

14032A

COVER-CLUTCH,OUTER

14032-0073

$838.18

14091

COVER

14091-0289

$105.21

92002

BOLT,SOCKET,6X16

92002-1778

$5.00

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92046A

BEARING-NEEDLE,HK0709

92046-1142

$15.08

92046B

BEARING-NEEDLE,HK1212

92046-1163

$15.17

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92055

RING-O,31.5X2.6

92055-049

$4.31

92066

PLUG,DRAIN,8X10

92066-1026

$10.19

92075

DAMPER

92075-1629

$5.00

92171

CLAMP,SENSOR CODE

92171-0153

$8.90

92172

SCREW,5X12

92172-0101

$5.05
