- Partiron
- OEM Parts
- Kawasaki
- motorcycle
- 2006
- Vulcan 2000
Fuel Tank

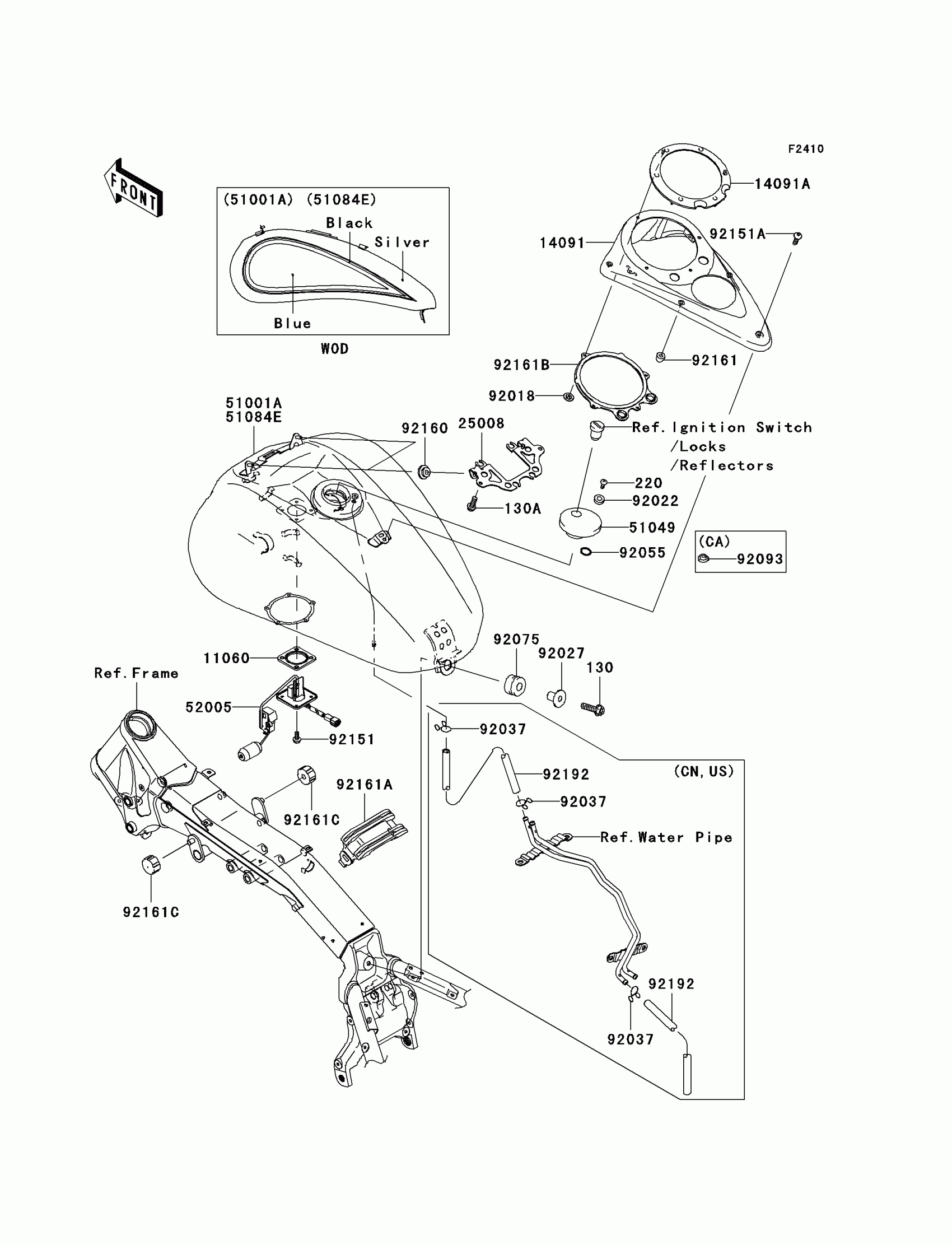

Kawasaki Vulcan 2000 Fuel Tank Diagram
#
Description
Price
130
BOLT-FLANGED,8X30
130H0830
$1.92
11060
GASKET,FUEL GAUGE
11060-1952
$21.19
14091
COVER,METER,LWR
14091-0187
$847.30
14091A
COVER,METER,UPP
14091-0284
$50.90
25008
BRACKET-METER
25008-0001
$27.35
51049
CAP-TANK,FUEL
51049-0003
$109.78
52005
GAUGE,FUEL
52005-0002
$204.19
92018
NUT,PUSH,3MM
92018-005
$2.76
92022
WASHER,5.1X10X1.0
92022-1977
$3.65
92027
COLLAR,L=19.3
92027-1780
$6.57
92055
RING-O,ID=9
92055-1552
$3.49
92075
DAMPER
92075-1736
$6.57
92151
BOLT,5X12
92151-1599
$1.91
92151A
BOLT,SOCKET,6X12
92151-1940
$3.74
92160
DAMPER
92160-1613
$3.74
92161
DAMPER,METER COVER
92161-0040
$3.98
92161A
DAMPER,FUEL TANK,CNT
92161-0042
$21.44
92161B
DAMPER,METER
92161-0173
$21.44
92161C
DAMPER,FUEL TANK
92161-0293
$7.83
130A
BOLT-FLANGED,6X16
130L0616
$1.92
220
SCREW-PAN-CROS,5X10
220D0510
Unavailable
51001A
TANK-COMP-FUEL,BLU/SIL/BLK
51001-0100-10Q
$2,046.21
51084E
TANK-COMP-FUEL,BLU/SIL/BLK
51084-5154-10Q
$2,046.21
92037
CLAMP,TUBE
92037-147
$7.34
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92192
TUBE,BLUE
92192-0037
$13.90
