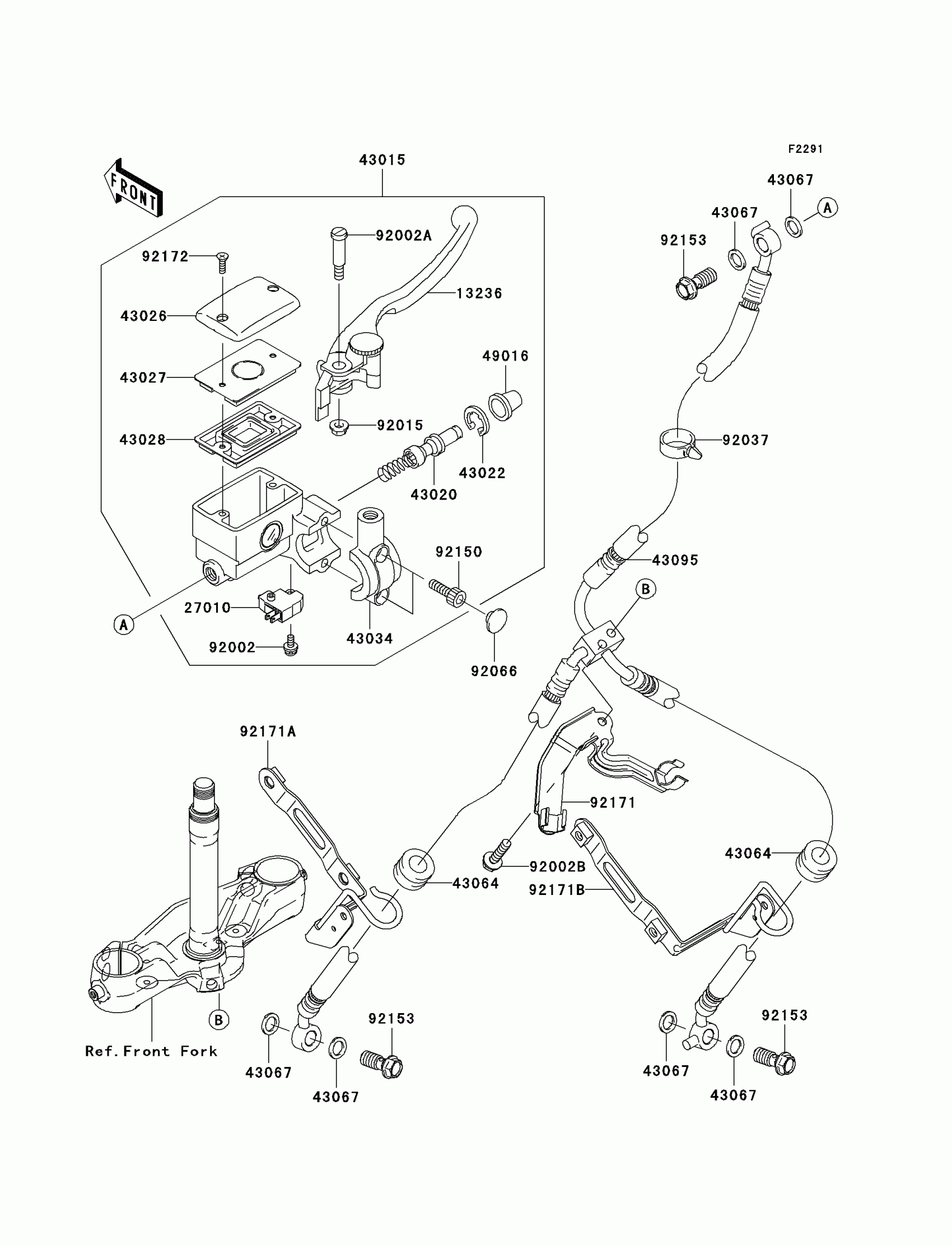

Kawasaki Vulcan 2000 Front Master Cylinder Diagram

Description

Price

13236

LEVER-COMP,FRONT BRAKE

13236-1315

$50.06

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0025

$443.40

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0003

$73.10

43027

PLATE-DIAPHRAGM

43027-1059

$7.57

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE

43034-1172

$42.99

43064

GROMMET,HOSE CLAMP

43064-006

$4.31

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43095

HOSE-BRAKE,FR

43095-0168

$168.93

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT,LEVER SET

92002-1561

$11.71

92002B

BOLT,6X26.6

92002-1912

$4.92

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92037

CLAMP,HOSE

92037-1827

$7.45

92066

PLUG

92066-1301

$6.11

92150

BOLT,SOCKET,6MM

92150-1025

$7.69

92153

BOLT,OIL,L=23

92153-0627

$5.48

92171

CLAMP,BRAKE HOSE

92171-0449

$27.25

92171A

CLAMP,BRAKE HOSE,FR,LH

92171-0528

$25.20

92171B

CLAMP,BRAKE HOSE,FR,RH

92171-0529

$25.20

92172

SCREW

92172-0083

$4.18
