Footrests

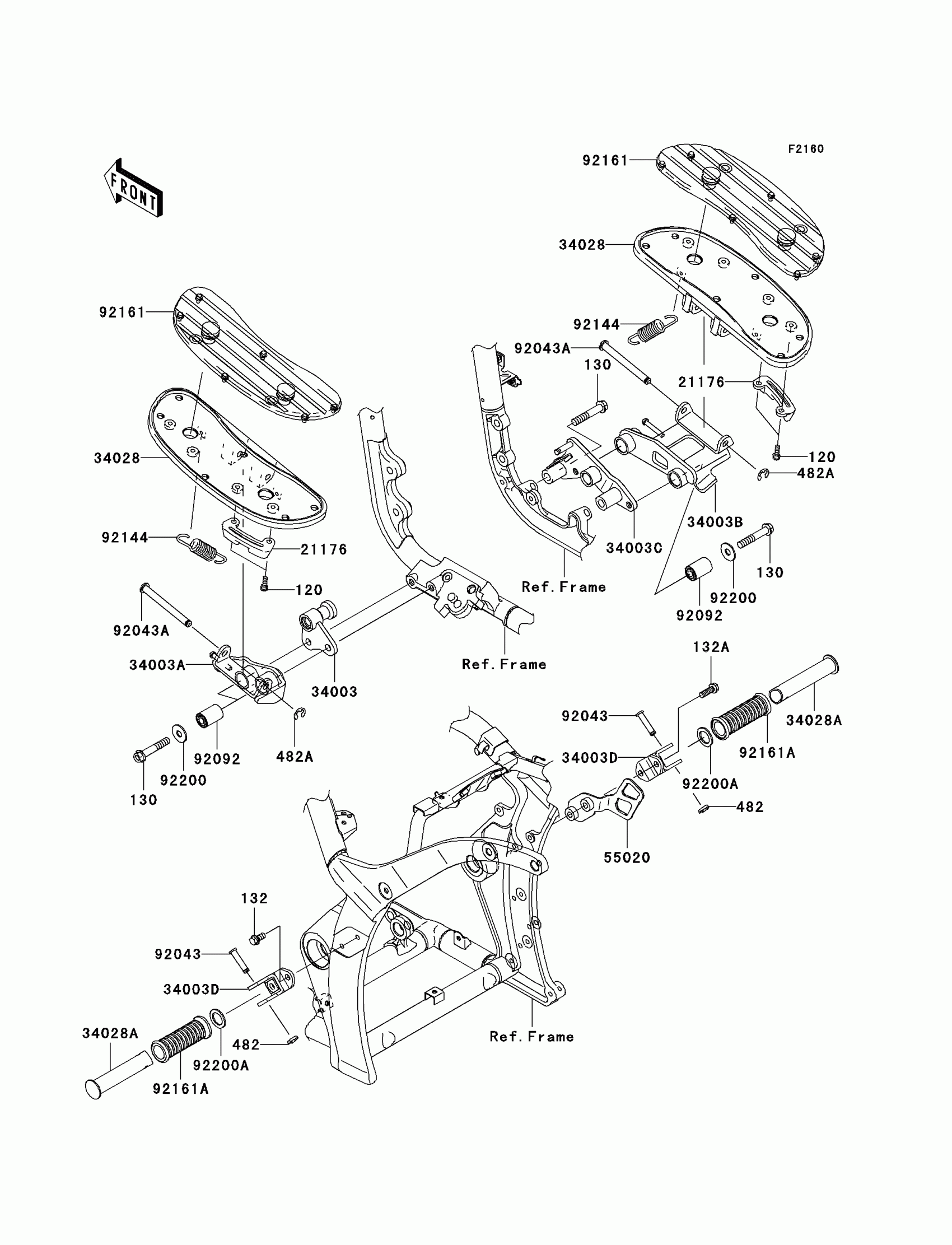

Kawasaki Vulcan 2000 Footrests Diagram
#
Description
Price
120
BOLT-SOCKET,6X16
120S0616
$1.23
130
BOLT-FLANGED,10X55
130L1055
$6.21
132
BOLT-FLANGED-SMALL,8X16
132L0816
$3.84
132A
BOLT-FLANGED-SMALL,8X30
132L0830
$4.15
482
CIRCLIP-TYPE-E
482L7000
$3.92
482A
CIRCLIP-TYPE-E,8MM
482L8000
$0.67
21176
SENSOR,BANK
21176-0021
$19.88
34003
HOLDER-STEP,FR,LH
34003-0020
$109.30
34003A
HOLDER-STEP,FR,LH
34003-0026
$139.21
34003B
HOLDER-STEP,FR,RH
34003-0029
$184.11
34003C
HOLDER-STEP,FR,RH
34003-0031
$139.21
34003D
HOLDER-STEP,RR,P.SILVER
34003-0043-458
$44.29
34028
STEP,FR
34028-0011
$107.21
34028A
STEP,RR
34028-0017
$23.45
55020
GUARD,MUFFLER,P.SILVER
55020-0219-458
$37.21
92043
PIN,8X36.5
92043-1339
$7.84
92043A
PIN,10X98.5
92043-1707
$10.49
92092
BUSHING-RUBBER
92092-0005
$18.14
92144
SPRING
92144-1266
$8.79
92161
DAMPER,FOOT BOARD
92161-0126
$78.82
92161A
DAMPER,STEP
92161-0232
$16.53
92200
WASHER,10.3X28X2.3
92200-0113
$6.12
92200A
WASHER,22.5X33X2.3
92200-1482
$2.75
