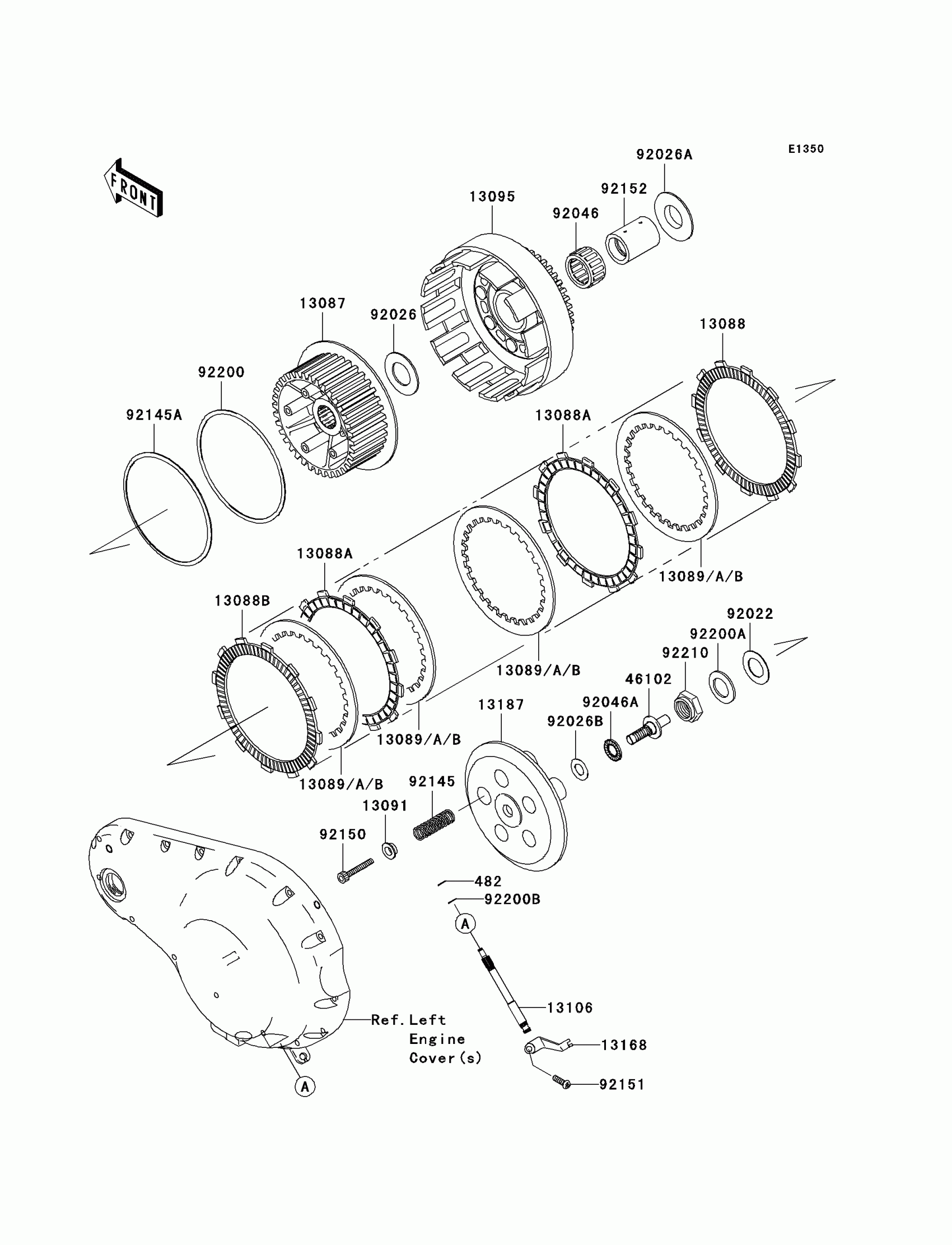

Kawasaki Vulcan 2000 Clutch Diagram
#
Description
Price
482
CIRCLIP-TYPE-E,5MM
482J5000
$3.41
13087
HUB-CLUTCH
13087-0005
$182.41
13088
PLATE-FRICTION
13088-0001
$18.55
13088A
PLATE-FRICTION
13088-0011
$18.55
13088B
PLATE-FRICTION
13088-1146
$17.67
13089
PLATE-CLUTCH,T=2.0
13089-1075
$14.01
13089A
PLATE-CLUTCH,T=1.6
13089-1080
Unavailable
13089B
PLATE-CLUTCH,T=2.3
13089-1081
Unavailable
13091
HOLDER,CLUTCH SPRING
13091-1041
$12.23
13095
HOUSING-COMP-CLUTCH
13095-0001
$1,017.20
13106
SHAFT-CLUTCH RELEASE
13106-0002
$63.56
13168
LEVER,CLUTCH
13168-0006
$43.92
13187
PLATE-CLUTCH OPERATING
13187-0002
$93.81
46102
ROD,CLUTCH RELEASE
46102-0013
$53.57
92022
WASHER,25.3X44X1
92022-1390
$4.87
92026
SPACER,30.5X56X2
92026-0008
$7.95
92026A
SPACER,30.2X64X8.5
92026-0009
$32.27
92026B
SPACER,15X28X1
92026-1238
$8.47
92046
BEARING-NEEDLE,K40X48X25V3
92046-0001
$36.48
92046A
BEARING-NEEDLE,AXK1102
92046-1052
$14.47
92145
SPRING,CLUTCH
92145-0032
$10.21
92145A
SPRING
92145-0033
$7.88
92150
BOLT,CLUTCH OPERATING
92150-1855
$5.24
92151
BOLT,SOCKET,6X20
92151-1749
$2.63
92152
COLLAR,30X40X52.3
92152-0190
$63.95
92200
WASHER,140.1X150X1.2
92200-0015
$7.95
92200A
WASHER,25.5X42X2.6
92200-0016
$5.79
92200B
WASHER,7.7X13X1.0
92200-1107
$4.40
92210
NUT,25MM
92210-0138
$5.79
