Chassis Electrical Equipment

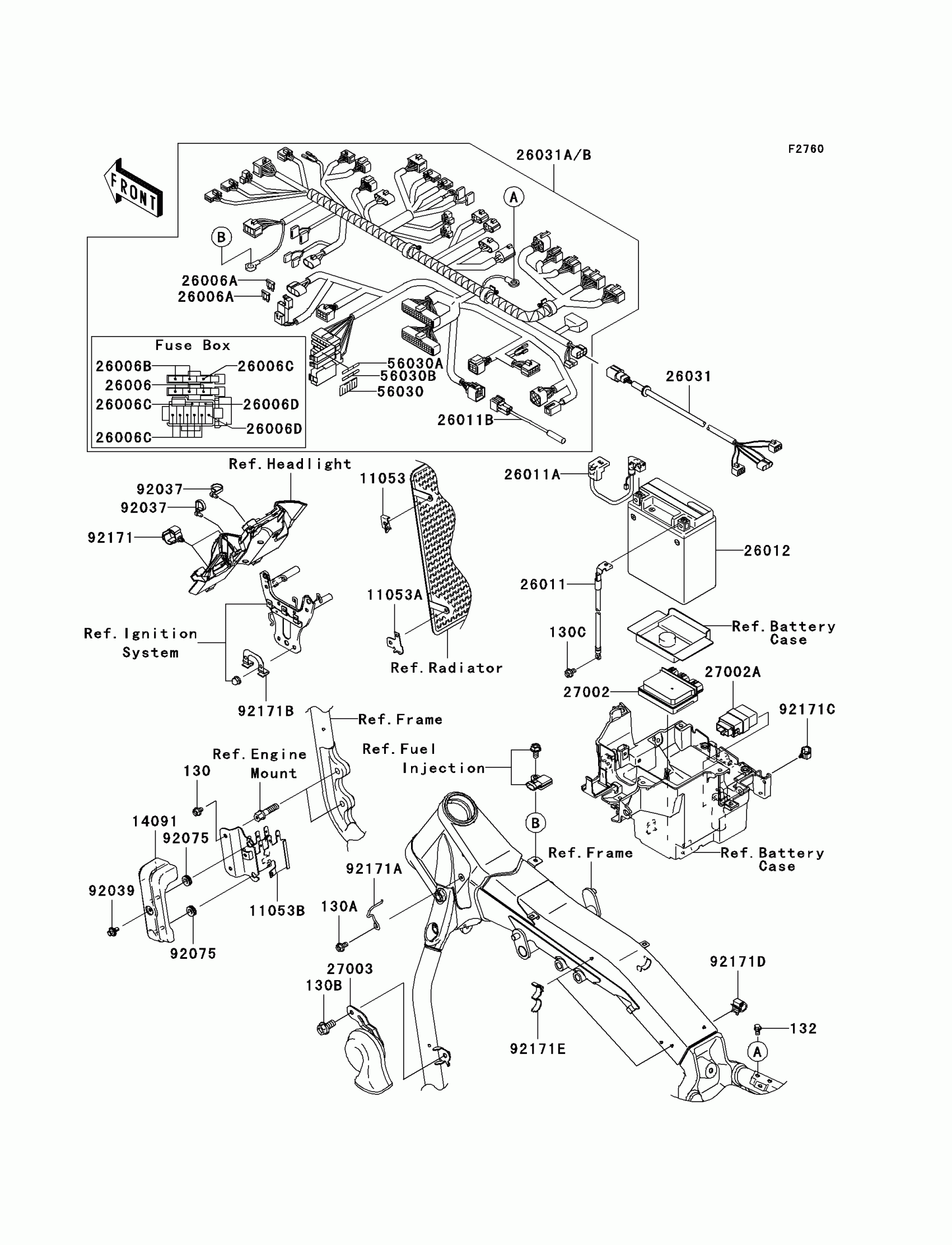

Kawasaki Vulcan 2000 Chassis Electrical Equipment Diagram
#
130
BOLT-FLANGED,6X8
130J0608
$5.66
130A
BOLT-FLANGED,6X12
130J0612
$2.19
130B
BOLT-FLANGED,8X16
130L0816
$1.66
130C
BOLT-FLANGED,6X10
130V0610
Unavailable
132
BOLT-FLANGED-SMALL,6X10
132L0610
$2.33
11053
BRACKET,RADIATOR,UPP
11053-0528
$5.00
11053A
BRACKET,RADIATOR,LWR
11053-1624
$4.90
11053B
BRACKET,COUPLER
11053-1655
$37.09
14091
COVER,ACG COUPLER
14091-0417
$13.25
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,BLADE,30A,GREEN
26006-1006
$4.96
26006B
FUSE,MINI BLADE,5A,TAN
26006-1077
$4.87
26006C
FUSE,MINI BLADE,10A,RED
26006-1078
$4.87
26006D
FUSE,MINI BLADE,20A,YELLOW
26006-1079
$4.87
26011
WIRE-LEAD,BATTERY(-)
26011-0013
$64.47
26011A
WIRE-LEAD,BATTERY(+)
26011-0043
$64.47
26011B
WIRE-LEAD,DIAGNOSIS
26011-1774
$15.22
26012
BATTERY,MF,FTZ16-BS,12V 18AH
26012-1371
Unavailable
26031
HARNESS,RR
26031-0167
$125.20
27002
RELAY-ASSY
27002-0007
Unavailable
27002A
RELAY-ASSY,SIGNAL LAMP
27002-1113
$115.95
27003
HORN
27003-0021
$90.31
56030
LABEL,FUSE BOX
56030-0015
$6.53
56030A
LABEL,FUSE BOX
56030-0017
$6.53
56030B
LABEL,FUSE BOX
56030-0080
$6.44
92037
CLAMP,SPEED,L=58
92037-1163
$6.57
92039
RIVET
92039-1227
$1.81
92075
DAMPER
92075-1629
$5.00
92171
CLAMP,20MM DIA.
92171-0069
$2.80
92171A
CLAMP,HARNESS
92171-0331
$3.72
92171B
CLAMP,HARNESS
92171-0368
$15.55
92171C
CLAMP,13MM DIA.
92171-1415
$2.03
92171D
CLAMP,DIA=15
92171-1424
$4.18
92171E
CLAMP,25MM DIA.
92171-1559
$6.18
26031A
HARNESS,MAIN
26031-0309
$694.08
26031B
HARNESS,MAIN
26031-0310
$694.08
