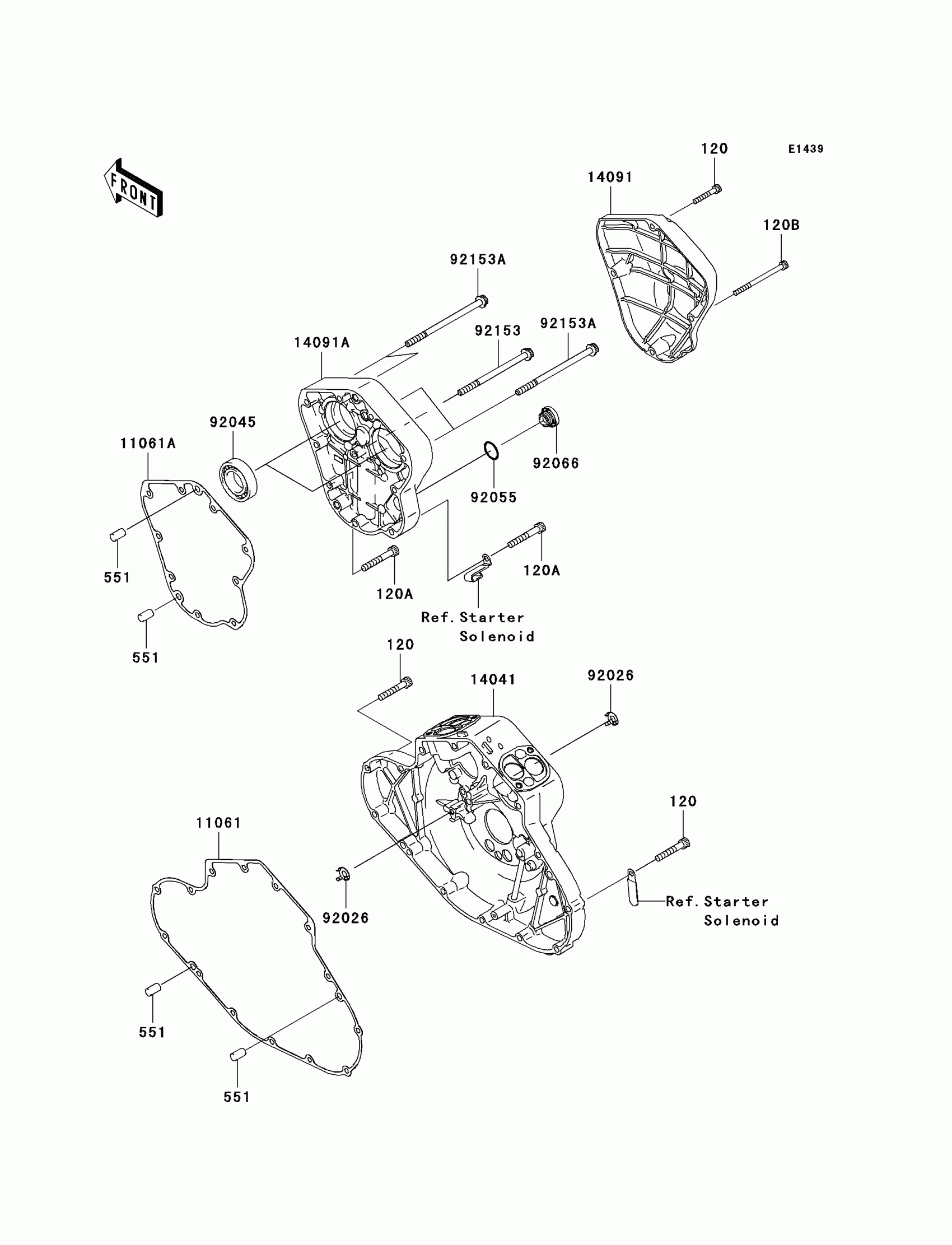

Kawasaki Vulcan 2000 Cam Cover(s) Diagram

Description

Price

120

BOLT-SOCKET,6X35

120R0635

$5.00

120A

BOLT-SOCKET,6X40

120R0640

$5.00

120B

BOLT-SOCKET,6X70

120R0670

$5.24

551

PIN-DOWEL,8X14

551A0814

$1.19

11061

GASKET,CAM,INSIDE

11061-0019

$65.26

11061A

GASKET,CAM,MIDDLE

11061-0020

$23.16

14041

COVER-COMP

14041-0012

$714.12

14091

COVER,CAM

14091-0165

$455.97

14091A

COVER,CAM,MIDDLE

14091-0433

$345.31

92026

SPACER

92026-0010

$8.90

92045

BEARING-BALL,60/28

92045-1176

$28.54

92055

RING-O,20X2

92055-1146

$8.58

92066

PLUG

92066-1456

$14.04

92153

BOLT,6X95

92153-0320

$11.42

92153A

BOLT,6X105

92153-0321

$12.52
