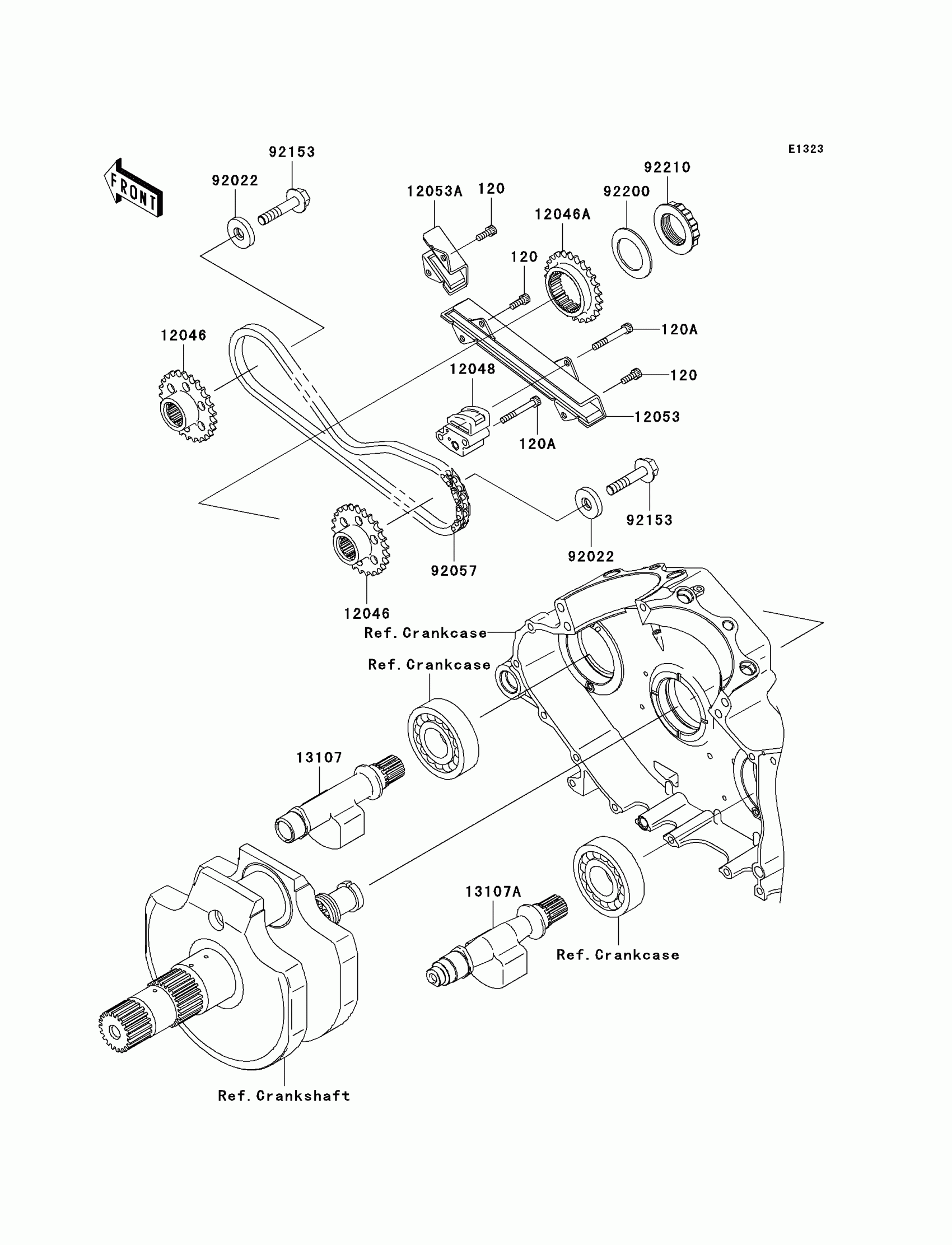

Kawasaki Vulcan 2000 Balancer Diagram

Description

Price

120

BOLT-SOCKET,6X16

120P0616

$2.33

120A

BOLT-SOCKET,6X45

120P0645

$1.92

12046

SPROCKET,FR&RR

12046-0007

$76.55

12046A

SPROCKET

12046-0008

$80.19

12048

TENSIONER-ASSY

12048-0005

$178.69

12053

GUIDE-CHAIN,LONG

12053-0003

$76.26

12053A

GUIDE-CHAIN,SHORT

12053-0004

$34.46

13107

SHAFT,FR

13107-0004

$354.53

13107A

SHAFT,RR

13107-0005

$354.53

92022

WASHER,10X33X6

92022-1906

$14.23

92057

CHAIN,DID 06HD(F) SDH

92057-0028

$90.19

92153

BOLT,10X50

92153-0317

$7.95

92200

WASHER,36.5X56X3.2

92200-0014

$11.82

92210

NUT,36MM

92210-0059

$41.24
