Air Cleaner

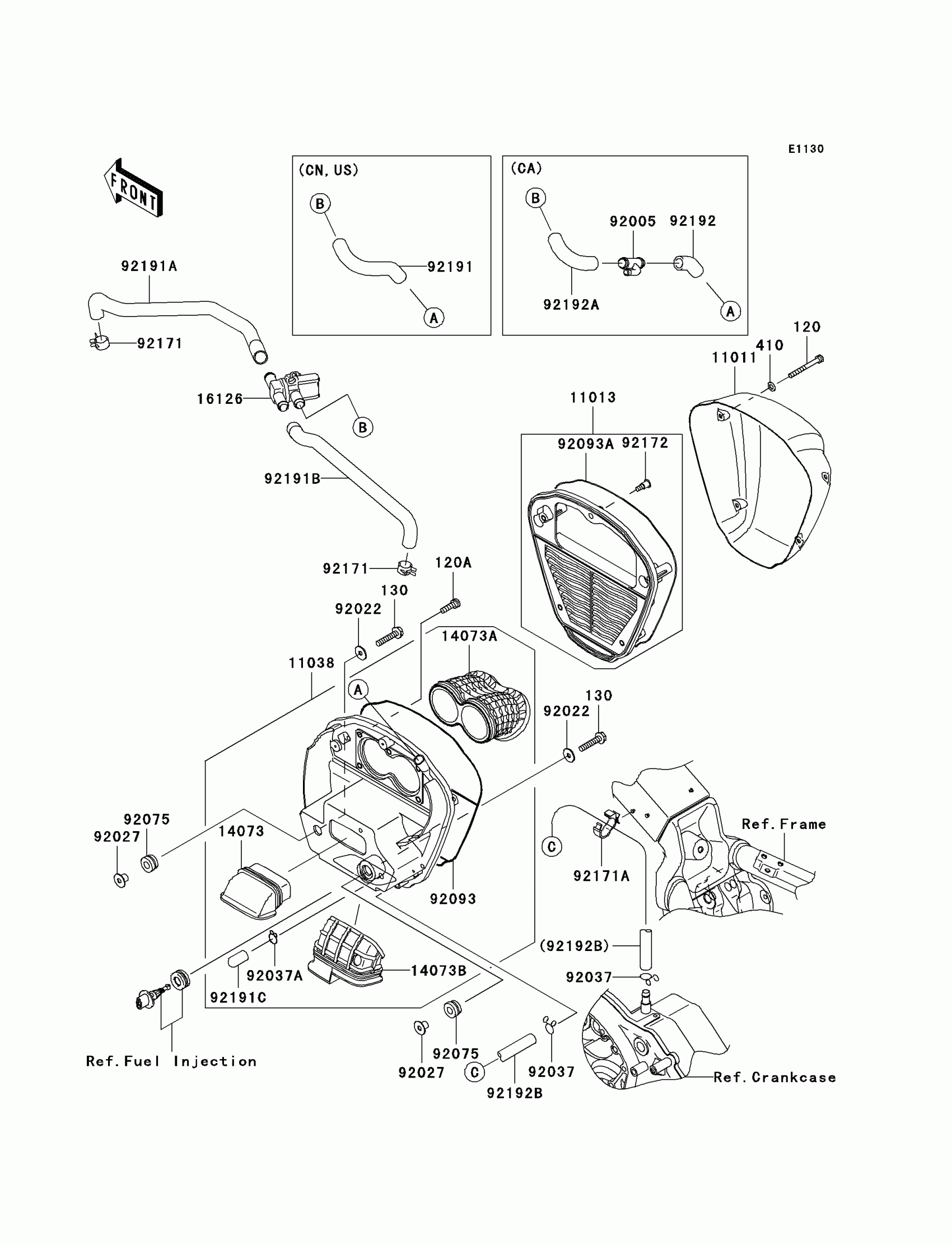

Kawasaki Vulcan 2000 Air Cleaner Diagram
#
Description
Price
120
BOLT-SOCKET,5X45
120R0545
$3.98
120A
BOLT-SOCKET,6X18
120W0618
$1.66
130
BOLT-FLANGED,6X30
130H0630
$1.42
410
W-PLAIN-S,5MM
410S0500
$1.59
11011
CASE-AIR FILTER,COVER
11011-0049
$179.84
11013
ELEMENT-AIR FILTER
11013-0002
Unavailable
11038
CASE-ASSY-AIR FILTER
11038-0003
$104.88
14073
DUCT,INTAKE
14073-0007
$19.30
14073A
DUCT,THROTTLE
14073-0008
$31.98
14073B
DUCT,INTAKE
14073-0047
$19.30
16126
VALVE,AIR SWITCHING
16126-1437
$185.64
92022
WASHER,6.5X20X1.6
92022-1557
$1.40
92027
COLLAR,L=12
92027-1062
$7.34
92037
CLAMP
92037-1468
$7.75
92037A
CLAMP,14.5MM
92037-1900
$4.87
92075
DAMPER,RUBBER
92075-1123
$5.00
92093
SEAL
92093-0004
$6.38
92093A
SEAL
92093-0005
$6.10
92171
CLAMP
92171-0332
$2.39
92171A
CLAMP,DIA=15
92171-1424
$4.18
92172
SCREW,5X16.5
92172-0091
$1.92
92191A
TUBE,ACV-FR HEAD
92191-0012
$19.29
92191B
TUBE,ACV-RR HEAD
92191-0013
$19.29
92191C
TUBE
92191-1704
$7.56
92192B
TUBE,9X15X800
92192-0135
$31.98
92005
FITTING
92005-0006
$37.65
92191
TUBE,AIR CLEANER-ACV
92191-0011
$17.39
92192
TUBE,AIR CLEANER-FITTING
92192-0016
$6.38
92192A
TUBE,FITTING-ACV
92192-0017
$9.83
