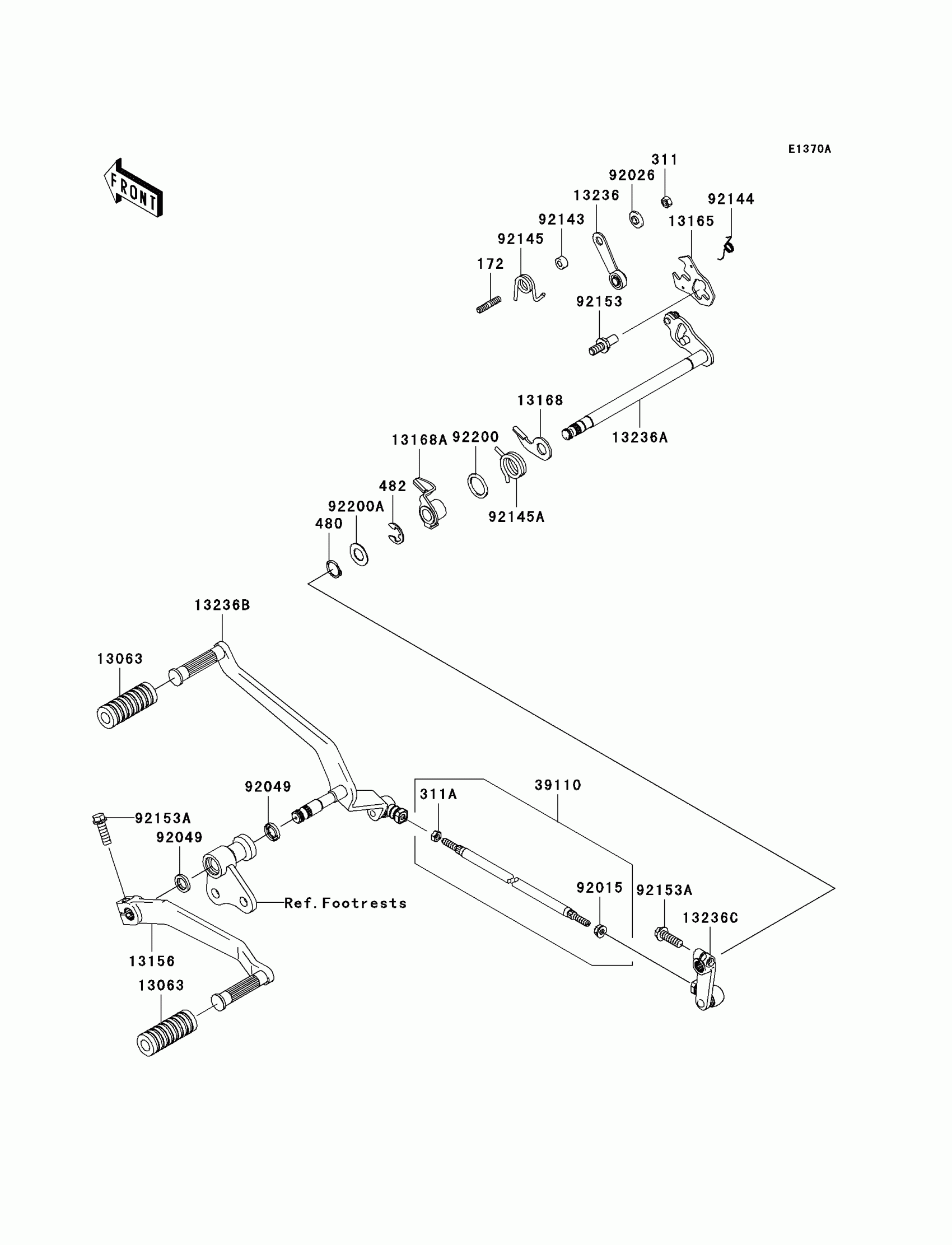

Kawasaki Vulcan 2000 Gear Change Mechanism(A2) Diagram

Description

Price

172

BOLT-STUD,6X18

172H0618

$1.23

311

NUT-HEX,6MM

311G0600

$2.19

311A

NUT-HEX

311L0600

$1.01

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

13063

DAMPER,PEDAL

13063-002

$5.00

13156

LEVER-CHANGE

13156-0007

$101.68

13165

PAWL

13165-0001

$17.22

13168

LEVER

13168-0009

$3.93

13168A

LEVER

13168-0010

$11.66

13236

LEVER-COMP,POSITION

13236-0059

$15.14

13236A

LEVER-COMP

13236-0060

$55.89

13236B

LEVER-COMP

13236-0071

$108.40

13236C

LEVER-COMP

13236-0072

$49.84

39110

ROD-ASSY-TIE

39110-0018

$85.36

92015

NUT,LEFT HANDED,6MM

92015-1572

$4.11

92026

SPACER

92026-1217

$5.52

92049

SEAL-OIL,VB13193

92049-1398

$6.22

92143

COLLAR

92143-1595

$9.51

92144

SPRING

92144-1029

$7.77

92145

SPRING

92145-0197

$8.82

92145A

SPRING

92145-0205

$8.82

92153

BOLT,RETURN SPRING

92153-0421

$9.07

92153A

BOLT,8X25

92153-1268

$3.18

92200

WASHER,20.5X27X1.6

92200-0018

$3.44

92200A

WASHER,13.4X25X1.0

92200-0045

$3.73
